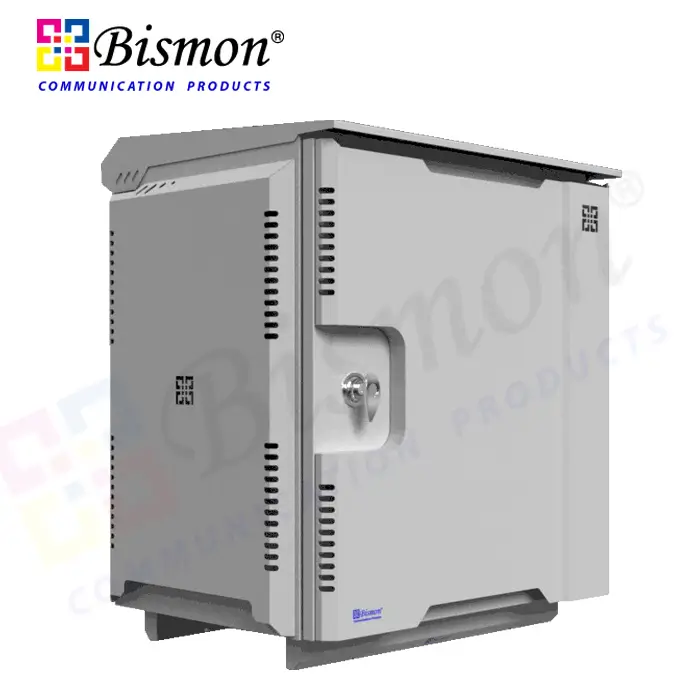

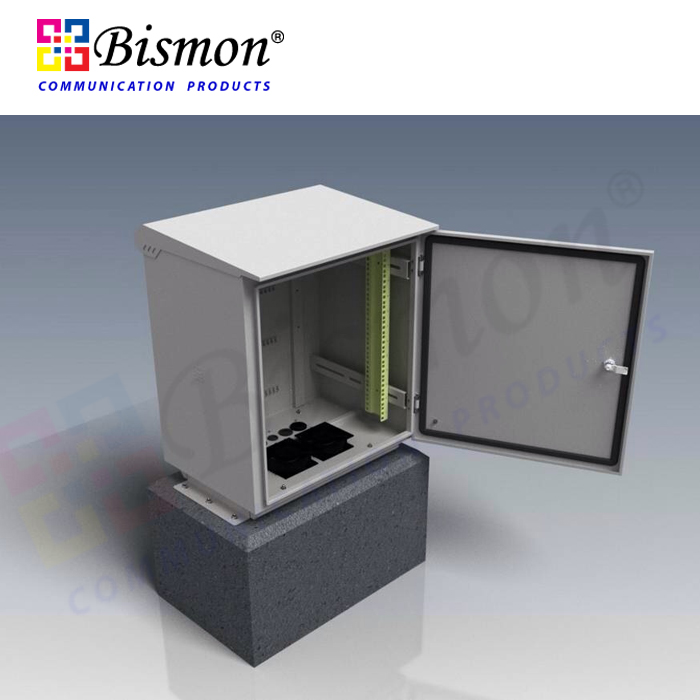

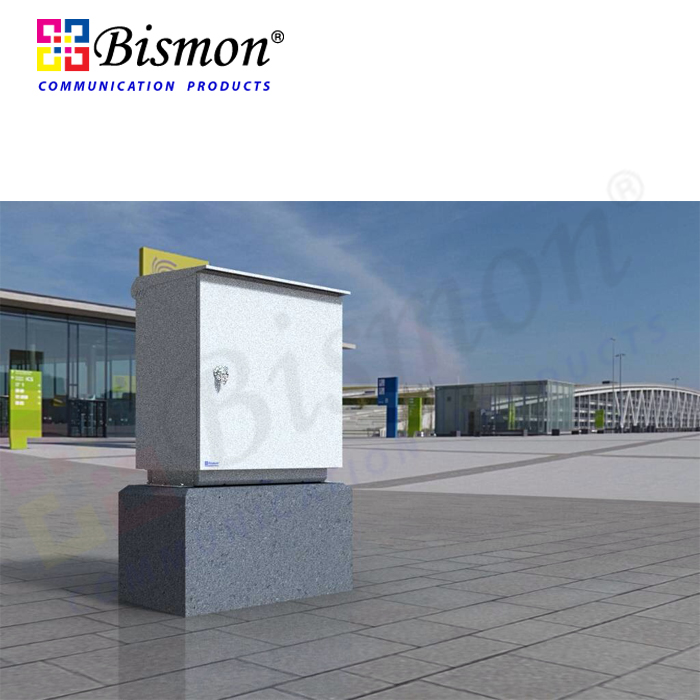

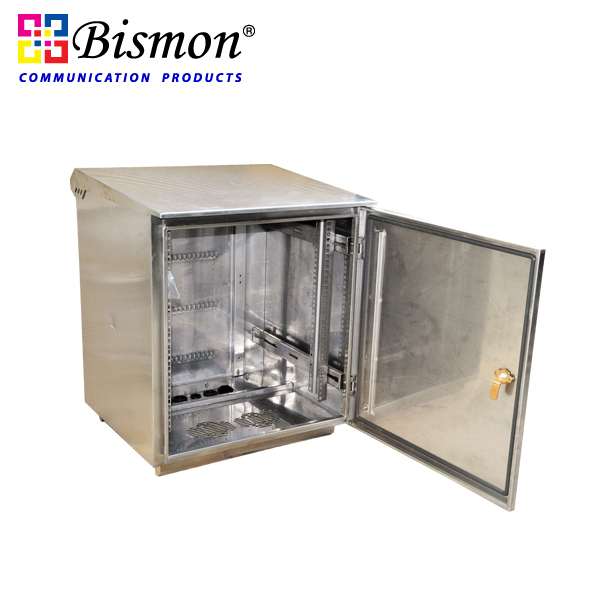

19" Wall Rack 12U Outdoor Cabinet (60cm) Stainless Steel

Part number : B1-WM12U-OUT6ST

Brand : BISMON

Price : 46,536.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

19" Wall Rack 12U Outdoor Cabinet (D:60cm) Made from Stainless Steel. Can support ODF and optical distribution frame, FTTH services to the customers' request. The high-quality protection weather-proof outdoor cabinet rack style. can compliant with IP55, IP65 standard.

Brand	Bismon
Model	B1-WM12U-OUT6ST
Equipment Type	Wall rack outdoor
Size	676 mm x 600 mm x 600 mm (HighxWidthxDepth)
Standard	Compliant IP55, IP65
Color
Material	stainless steel high grade
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment
Features	• 19-inch support for rack style standard, 12U High
	• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets”
	style, not rubber style
	• Double folded gutter at door frame to increase rigidity and prevents water from entering
	• All screw or nut made of stainless steel
	• Can support rack-mount 1U or 3U patch panel fiber optic max capacity: 12U
	• Can support cable entry 5 port and 2 cable glands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 2x4inch for airflow, 2 points (Top & Bottom Rack) Max:4 pcs

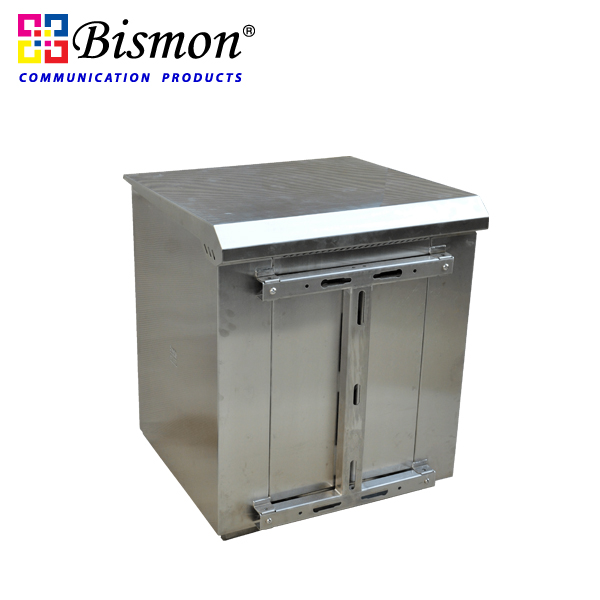

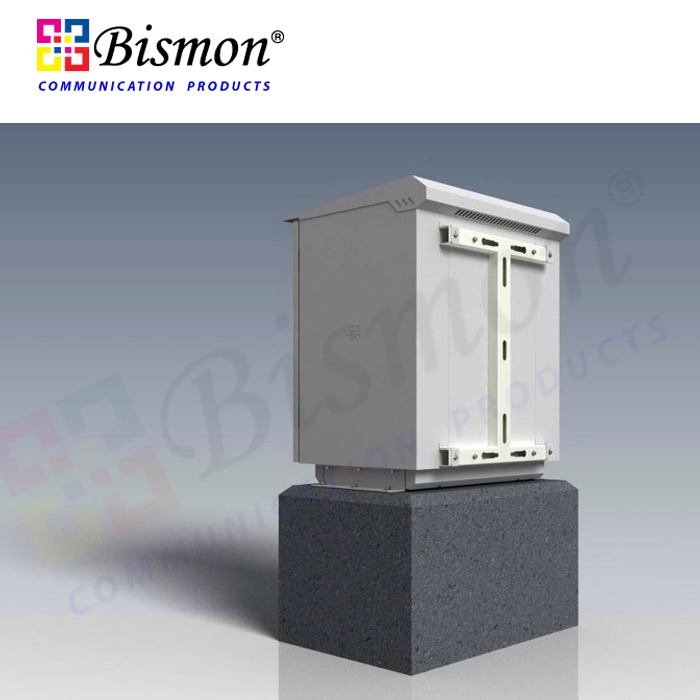

	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support hinges provide 130 deg. door opening
	• Support grounding at door, side cover and cabinet frame
	• Surface finished cabinet with epoxy-polyester coating
Option (Made to order)	Material: SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum

- Special material stainless steel - 19 inch mounting rails - 12U High for equipment - CNC Foam Gasket sealing protect from outside waterproof - Compliant IP55, IP65 - Free mounting brackets arm for wall, hang on, on the lamp post - Cable management fix point in side entry of cable - All screw, nut, key made of stainless steel - Support FAN 4inch max:4 pcs. two point (Top and Down)
