Overview

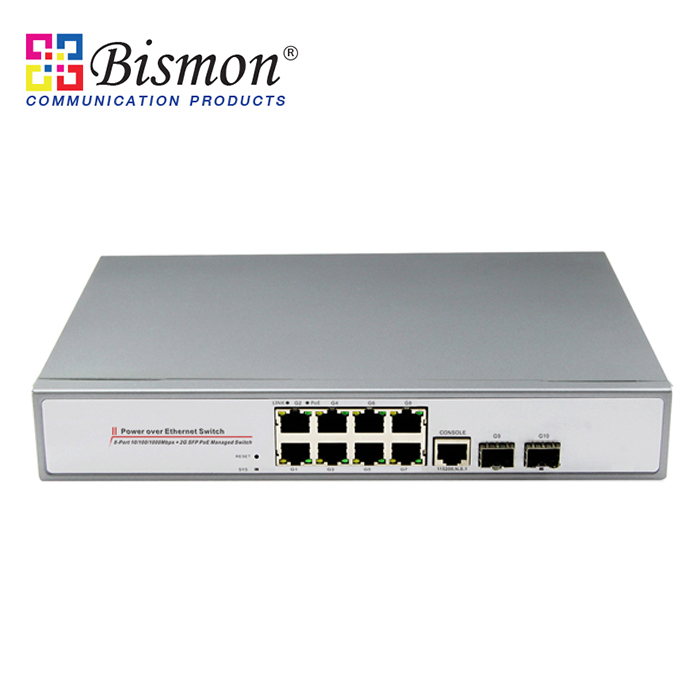

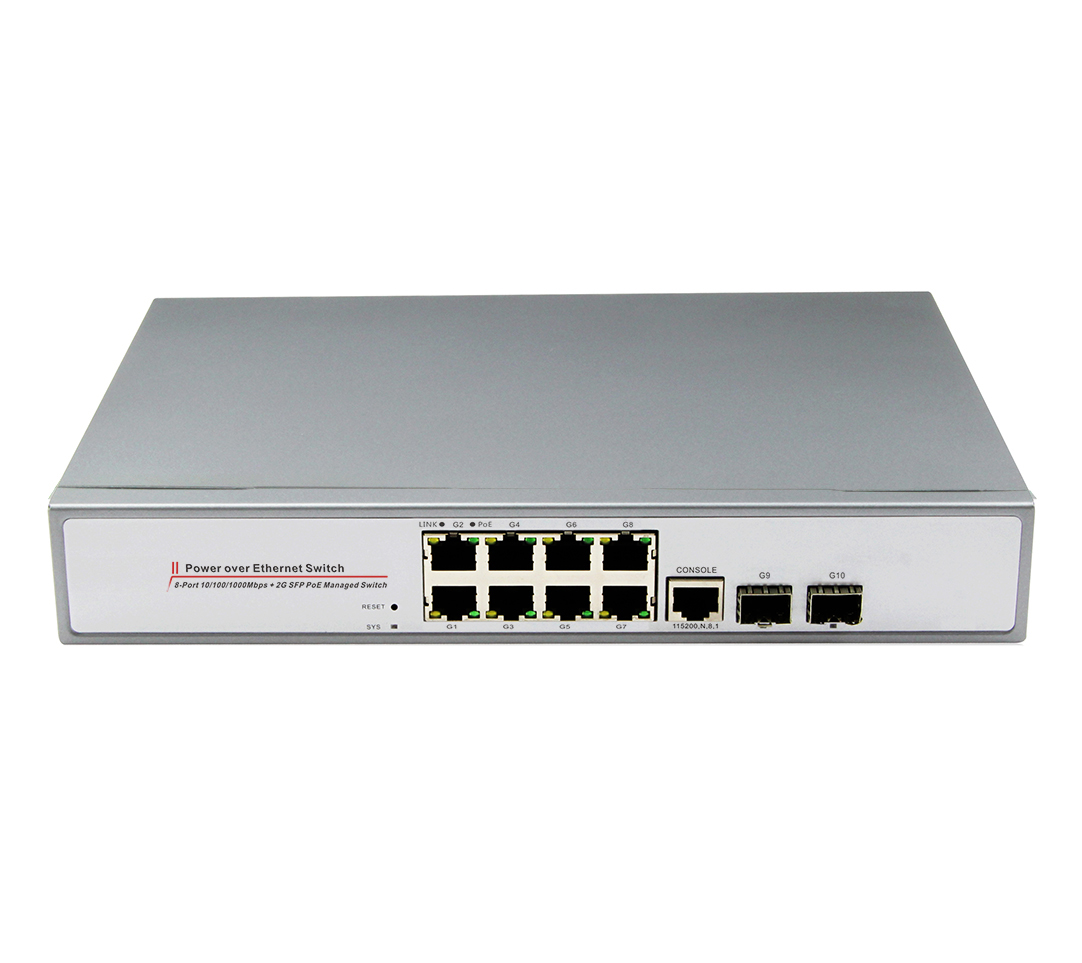

All gigabit ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the 8x 10/100/1000 Mbps ports and 2x optional fiber SFP slots, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 20Gbps switching capacity. All RJ45 ports can auto adjust the highest connection speed for a normal working, Auto Uplink technology can ensure proper network connection.

Features

  •  All gigabit design, 8x gigabit Ethernet RJ45 ports with AutoUplink™, 1x console port, and 2x gigabit SFP slots.

  •  8 PoE ports support power over Ethernet for PDs

  •  Meet IEEE802.3af/at PoE standard. Supports per port PoE configuration function

  •  L2+ features provide better manageability, security, QoS, and performance.

  •  Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

  •  Support spanning tree STP (802.1D) and RSTP(802.1W).

  •  Jumbo frames support up to 9.6K kilobytes.

  •  Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

  •  Support cable diagnosis

  •  G.8032, support <50ms industrial quick ring protection
