OFL 280 Handheld FTTx OTDR, SM 1310/1550nm






Part number : OFL280-100
Brand : Noyes

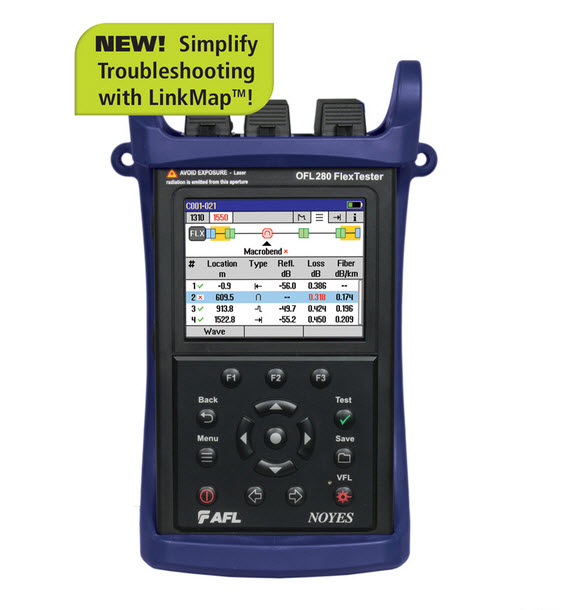

OFL280 FlexTester
Multifunction OTDR and Loss Test Set
The Noyes OFL280 FlexTester offers an unmatched combination of fiber optic test functions, ease-of-use, portability, and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator.
Features:
Rugged, handheld and light weight
Standard OTDR, PON OTDR, live fiber OTDR, and FTTx PON meter all from the same test port
0.8 m event dead zone, 3.5 m attenuation dead zone
34/32 dB dynamic range
Fast Real Time OTDR mode
Internal storage (>1000 OTDR traces in standard .SOR format)
High-contrast display is clear and bright in any lighting condition, including direct sunlight
Transfer test results to a PC via USB
10-hour operation, fast charge, Li-Ion battery
Short power-on time (<5 sec)
Easy to use and learn
Include VFL, OPM(Power Meter), OLS(Optical Light Source)
Price : 141,000.00 Baht
-
