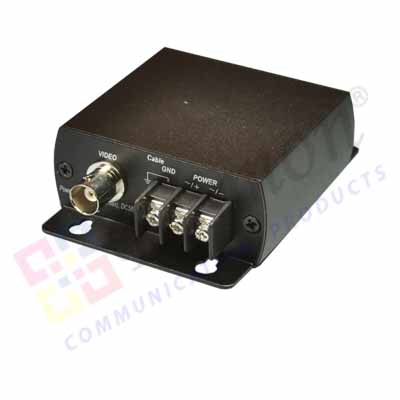

Video&Power Surge Protector


Part number : SP001VP

Brand : BISMON

-Performs a different function than grounding requirements. -Protects equipment from high voltage surges from nearby lightning strikes. -Two stage protection: 130V, AC/DC 12V -Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc. -3 pin terminal + BNC female to 4 pin terminal + BNC female. -Two stage protection, AC/DC 130V, AC/DC12V -Max power input AC 40V(MAX), DC 56V(MAX). -Max current up to 2Amp.?

-Surge Protection Attack Time : 1 ns -Maximum Surge Voltage : 4 KV -Surge Life : 300 surge of 100 Amps -Normal Resistance Across Coax : 10,000 M? -Surge Resistance : Approx. 0? -BAND PASS : 0~1 GHZ -Power Passing Capability : 130V DC / AC, 65 Vrms at 10 Amps -Insertion Loss : Less than 0.2 dB -Return Loss (75 ohms) : 16dB -Power IN Put : AC 40V(MAX), DC56V(MAX) -Connectors : BNC, Terminal -Dimension (mm) : 87x67x27 -Weight (g) : 136

Price : 2,068.00 Baht
