Specification

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

1200 W

rated power in VA

2200 VA

Product or component type

Uninterruptible power supply (UPS)

output connection type

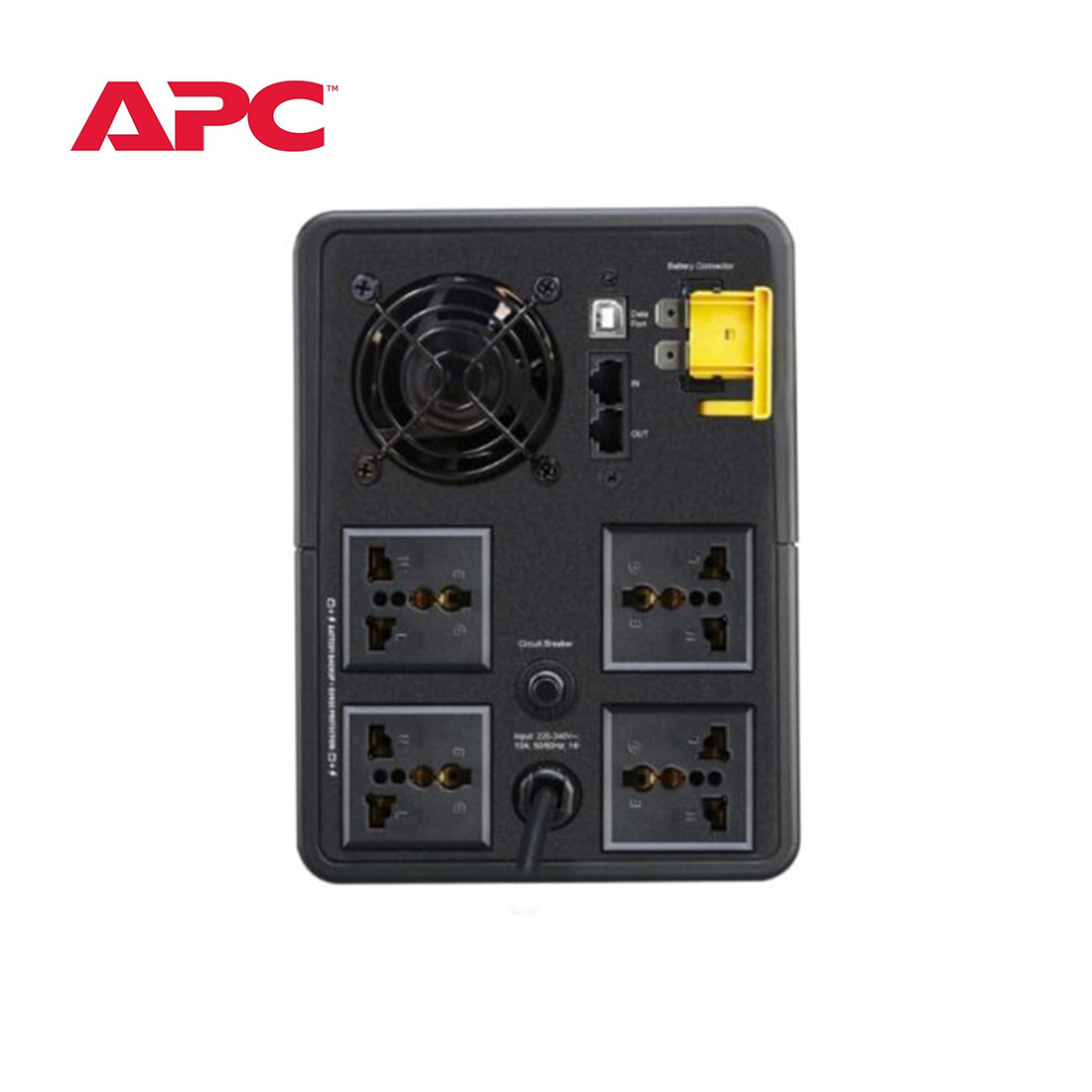

4 universal

Cable length

1.2 m

Number of cables

1

Battery type

Lead-acid battery

Range of product

Back-UPS

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

8 h

Battery voltage

24 V

Battery life

3…5 year(s)

Replacement battery

APCRBC177

Battery graph comments

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Extended runtime

0

General

Provided equipment

user manual

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

Physical

Colour

Black

Height

19 cm

Width

14 cm

Depth

39 cm

Net weight

12.3 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Input voltage limits

140...300 V

Input Power Factor at Full Load

0.54

Output

Maximum configurable power in W

1200 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

UPS type

Line interactive

Wave type

Stepped approximation to a sinewave

Full load runtime

00:01:00 1200 W

Half load runtime

00:08:30 600 W

Maximum configurable power in VA

2200 VA

Transfer time

6 ms typical : 10 ms maximum

Conformance

Product certifications

CE

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…40 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…3000 m

Acoustic level

40 dBA

IP degree of protection

IP20

Communications & Management

control panel

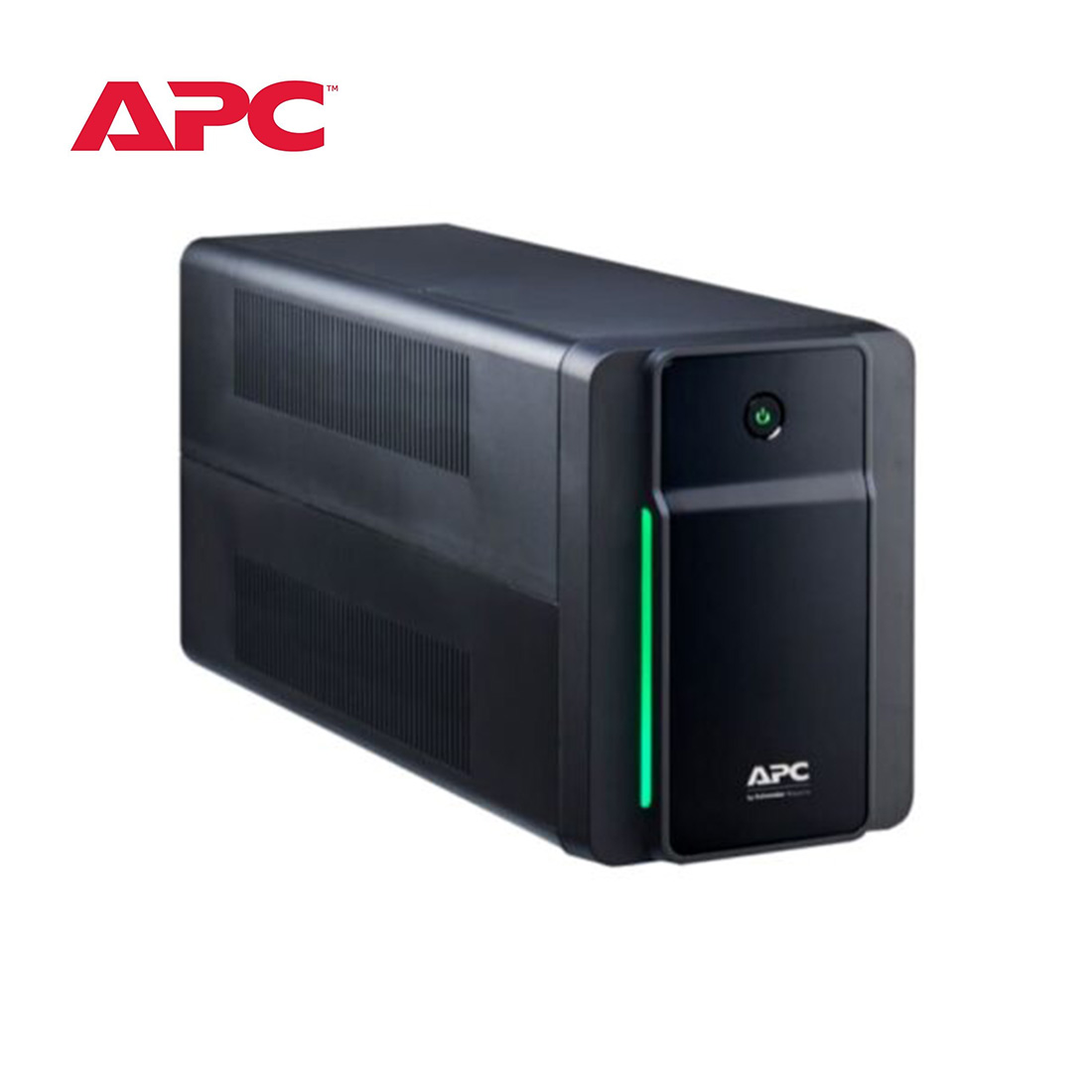

LED Status display with on line : on battery

Surge Protection and Filtering

Surge energy rate

273 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

29.7 cm

Package 1 Width

49.5 cm

Package 1 Length

23.5 cm

Package 1 Weight

13.3 kg

SCC14

10731304410734

Contractual warranty

Warranty

2 years repair or replace
