Specification

Main Input Voltage

230 V

Rated power in W

520 W

rated power in VA

950 VA

Product or component type

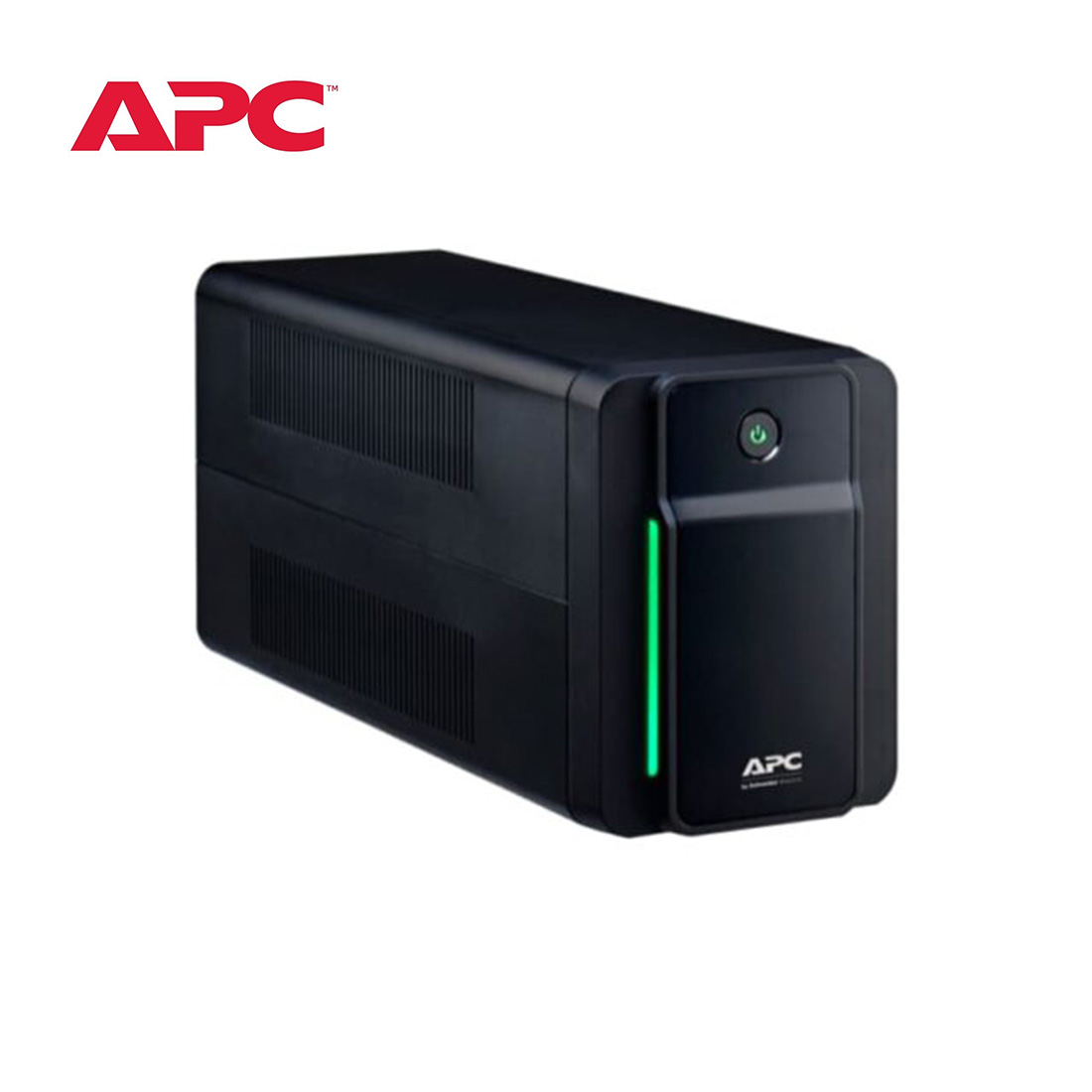

Uninterruptible power supply (UPS)

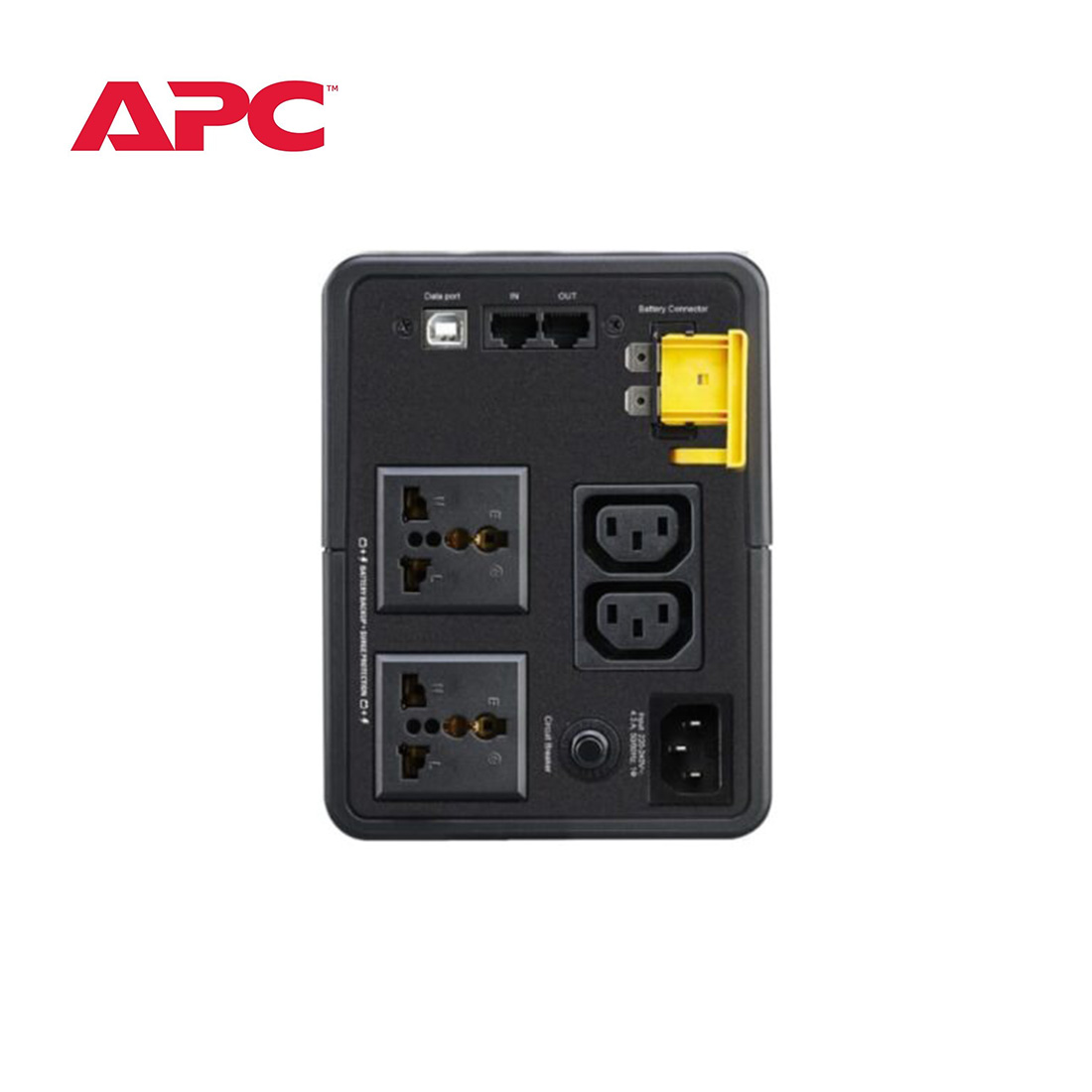

output connection type

2 universal
2 IEC 60320 C13

Cable length

1.2 m

Number of cables

1

Battery type

Lead-acid battery

Range of product

Back-UPS

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

8 h

Battery voltage

12 V

Battery life

3…5 year(s)

Replacement battery

RBC17

Battery graph comments

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Extended runtime

0

General

Provided equipment

user manual

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

Physical

Colour

Black

Height

16 cm

Width

12 cm

Depth

35.5 cm

Net weight

6.1 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Input voltage limits

140...300 V

Input Power Factor at Full Load

0.54

Output

Maximum configurable power in W

520 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

UPS type

Line interactive

Wave type

Stepped approximation to a sinewave

Full load runtime

00:01:00 480 W

Half load runtime

00:06:30 240 W

Maximum configurable power in VA

950 VA

Transfer time

6 ms typical : 10 ms maximum

Conformance

Product certifications

CE

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…40 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…3000 m

Acoustic level

40 dBA

IP degree of protection

IP20

Communications & Management

control panel

LED Status display with on line : on battery

Surge Protection and Filtering

Surge energy rate

273 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

25 cm

Package 1 Width

43 cm

Package 1 Length

19.7 cm

Package 1 Weight

6.6 kg

SCC14

10731304410703

Contractual warranty

Warranty

2 years repair or replace
