เครื่องสำรองไฟ BK UPS 500VA 4 OUTLETS,USB PORT PROTECT,LED

Part number : BK500EI

Brand : APC

Price : 3,900.00 Baht

(Ex-Vat 7%)

Delivery time : 1-2 Day

Minimum order quantity : 1 Pcs.

Size : 16.5 x 9.1 x 28

Warranty : 2Y

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

Overview

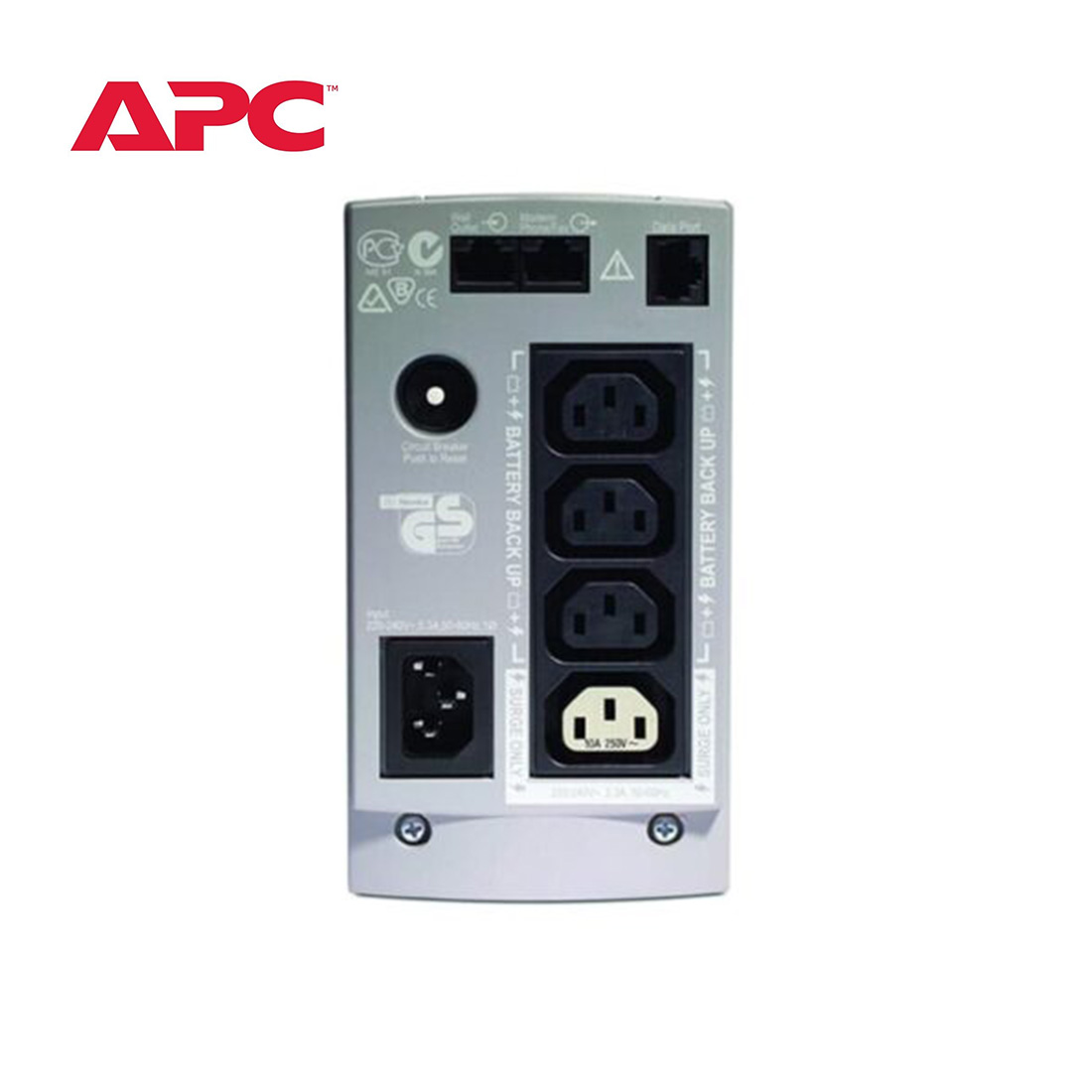

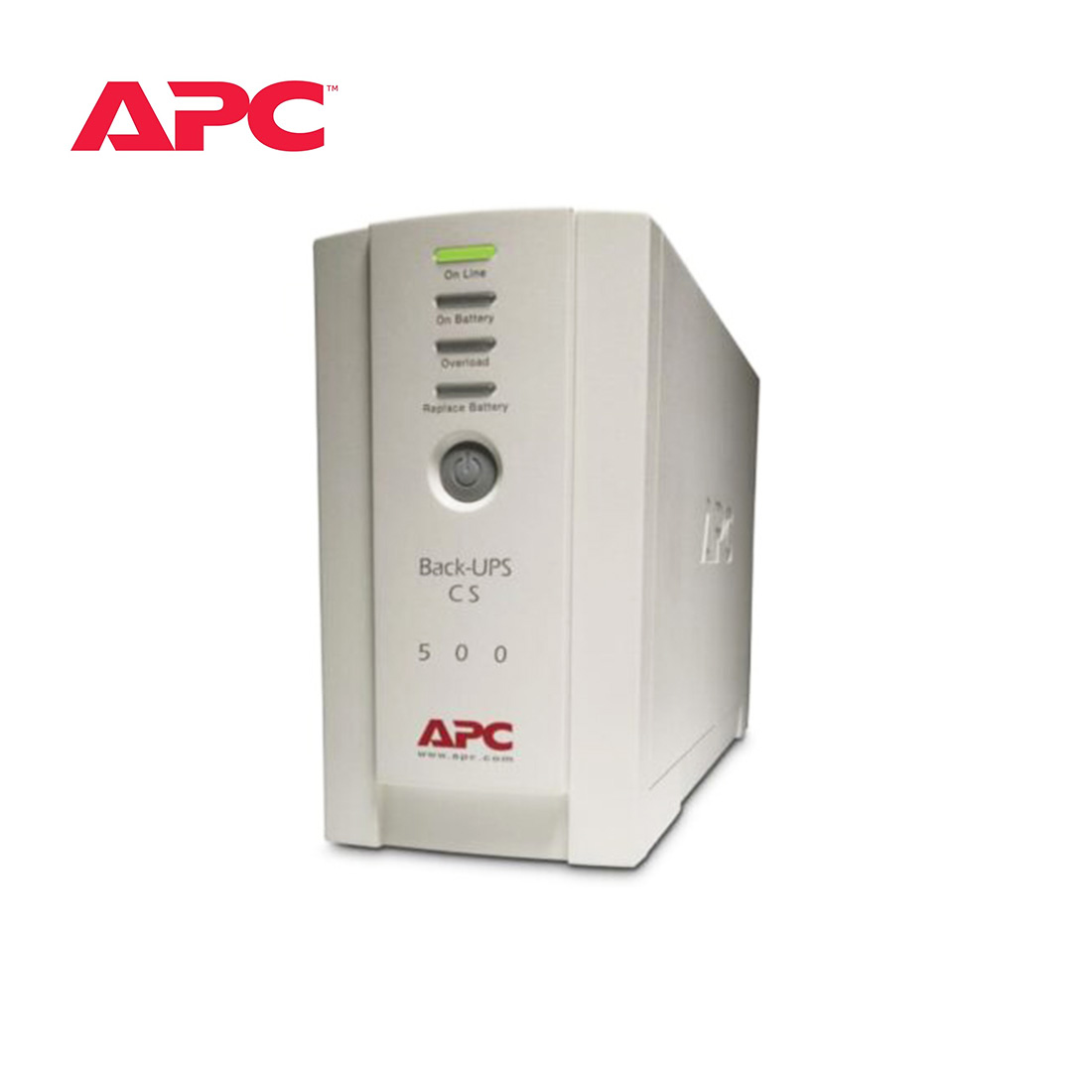

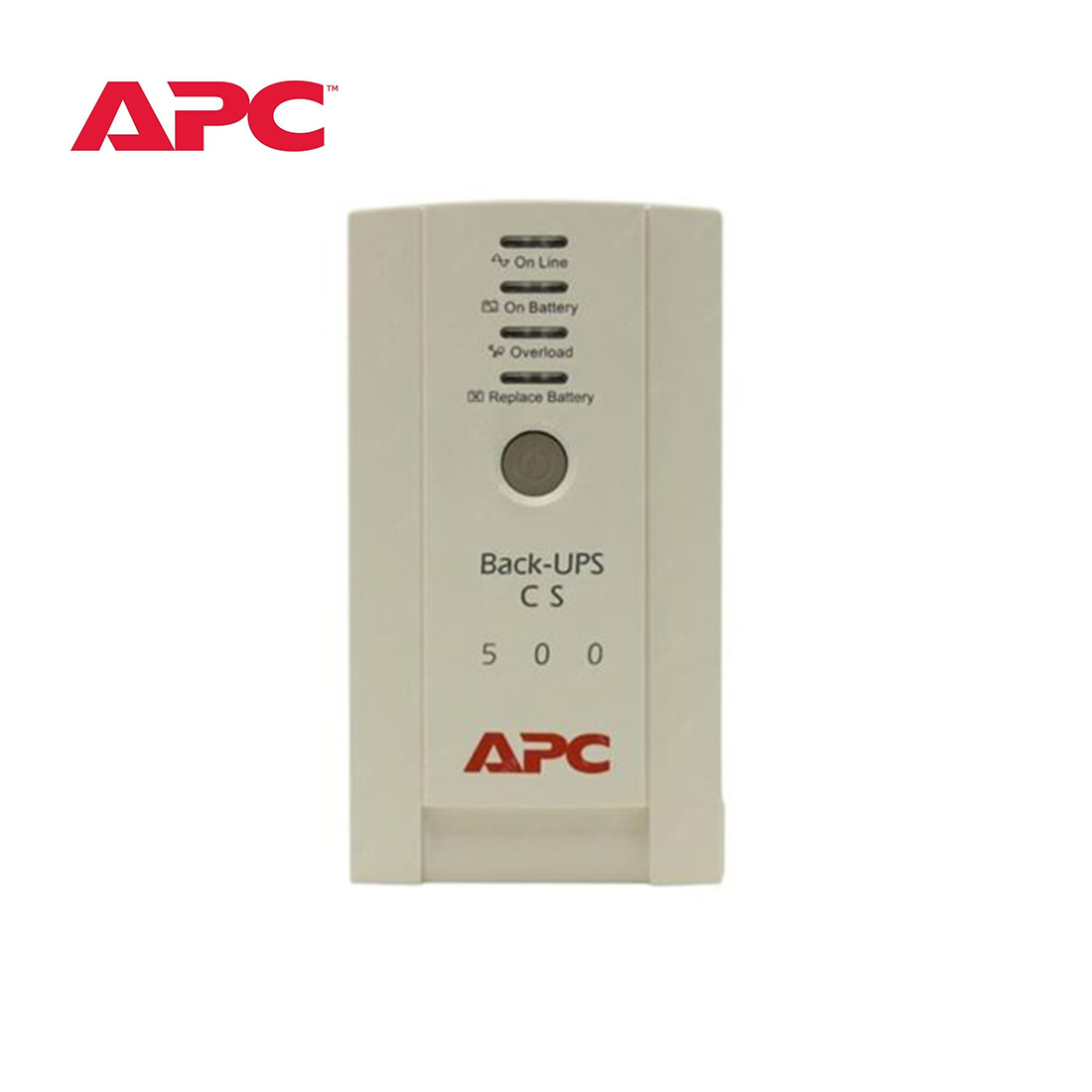

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA tower UPS has 4 total outlets, 3 of which are battery back up and surge protection, and one that is surge protection only. It has a surge energy rating of 310 Joules. It provides data line protection with a RJ45 analog phone line for phone, fax, modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. This UPS has a 2-year warranty and CE product certification.

RATING : 500VA/ 300Watts
POWER FACTOR : 0.60
BACKUP TIME : 4 min. Full Load / 14 min. Half Load
TECHNOLOGY : Stand by
MANAGEMENT : Powerchute Personal Edition
CHASSIS : Tower
WARRANTY : 2 Yrs./Onsite next Business day 8x5

Specification

Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power in W	300 W
rated power in VA	500 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C14
output connection type	3 IEC 60320 C13 1 IEC 60320 C13 surge 2 IEC Jumpers surge
Number of cables	2
Battery type	Lead-acid battery
Provided equipment	CD with software Documentation CD 1 x detachable IEC power cord 1 x detachable 1.2 m IEC power cord Telephone cable USB cable Warranty card
Range of product	Back-UPS

Batteries & Runtime
รันไทม์	View Runtime Graph
ประสิทธิภาพ	View Efficiency Graph
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Number of battery replacement quantity	1
Battery voltage	12 V
Battery capacity	7.0 Ah
Battery charger power	10 W rated
Battery power in VAH	83 VAh capacity 84 VAh runtime
Battery life	4…6 year(s)
Replacement battery	RBC2
Extended runtime	0

General
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Physical
Colour	Beige
Height	16.5 cm
Width	9.1 cm
Depth	28.4 cm
Net weight	6.32 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No

Input
Network frequency	47...63 Hz 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits	160...300 V adjustable 180...266 V
Maximum input current	7 A
Switching current capacity	7 A

Output
Maximum configurable power in W	300 W
Output frequency	47...63 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised
UPS type	Standby
Wave type	Stepped approximation to a sinewave
Maximum configurable power in VA	500 VA
Transfer time	6 ms typical : 10 ms maximum

Conformance
Product certifications	C-Tick CE GOST VDE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 %
Storage altitude	0.0000000000…15240.0000000000 m
Acoustic level	40 dBA
Heat dissipation	24 Btu/h

Communications & Management
Free slots	0
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rate	310 J
Noise suppression	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.800 cm
Package 1 Width	24.100 cm
Package 1 Length	36.800 cm
Package 1 Weight	7.050 kg
Unit Type of Package 2	P12
Number of Units in Package 2	30
Package 2 Height	105.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	490.000 kg
SCC14	10731304016356
