Part number : BR1500GI-3Y

Brand : APC

Price : 15,300.00 Baht

(Ex-Vat 7%)

Warranty : 3Y

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

SKU	BR1500GI
Brand	APC

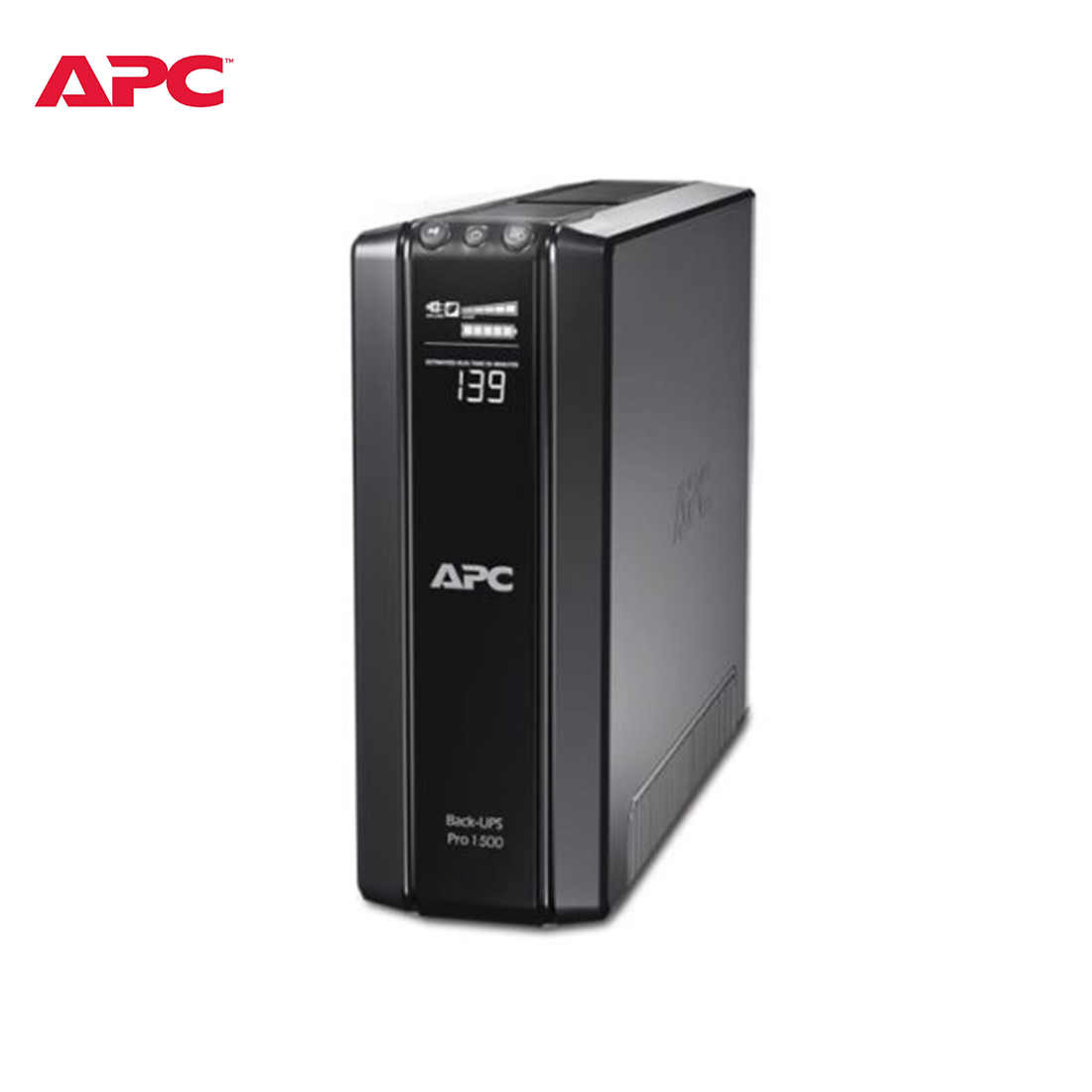

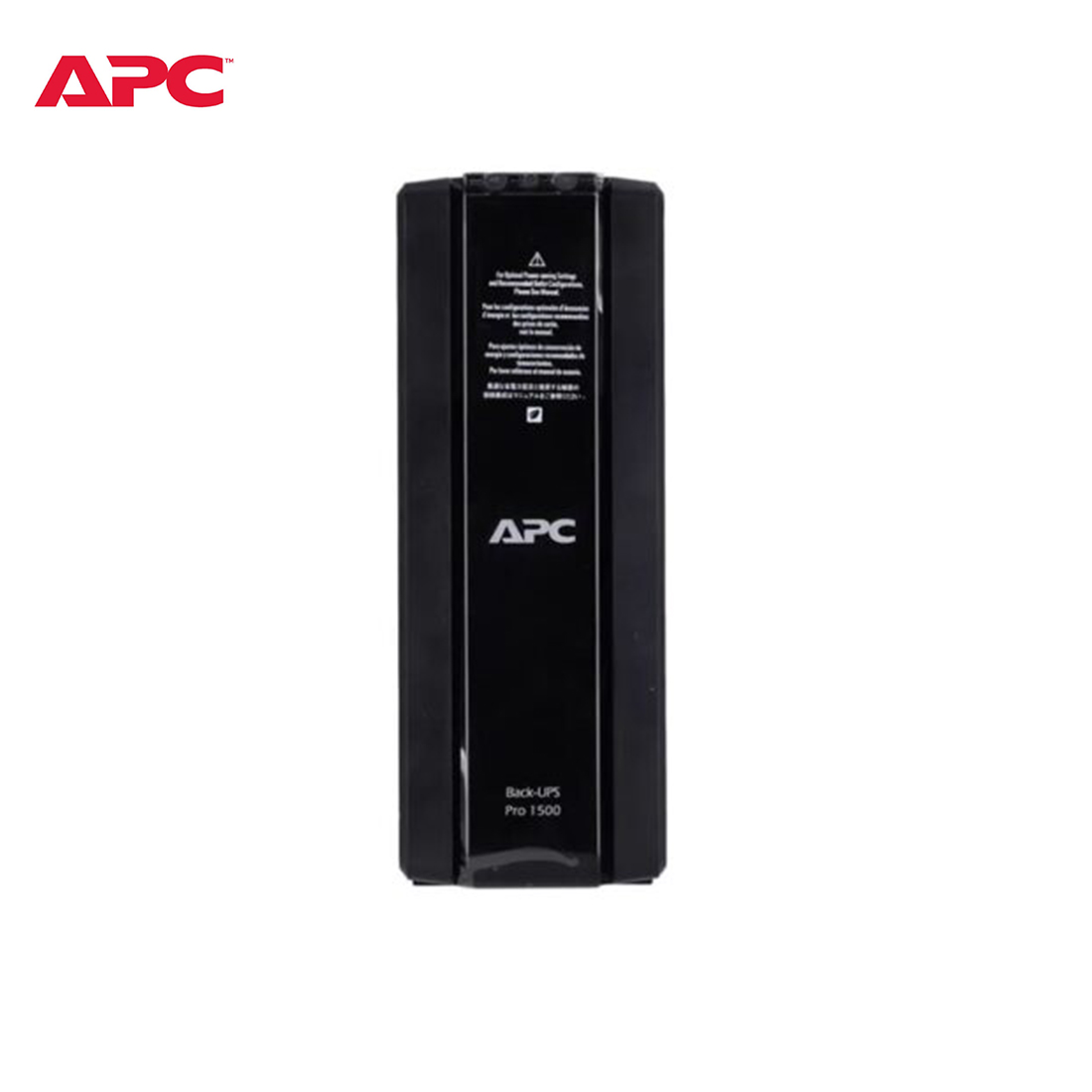

Model	UPS “APC” Back UPS Pro Back 1500VA/865Watts
Output Power Capacity	865Watts / 1.5 kVA
Nominal Output Voltage	230V
Topology	Line Interactive

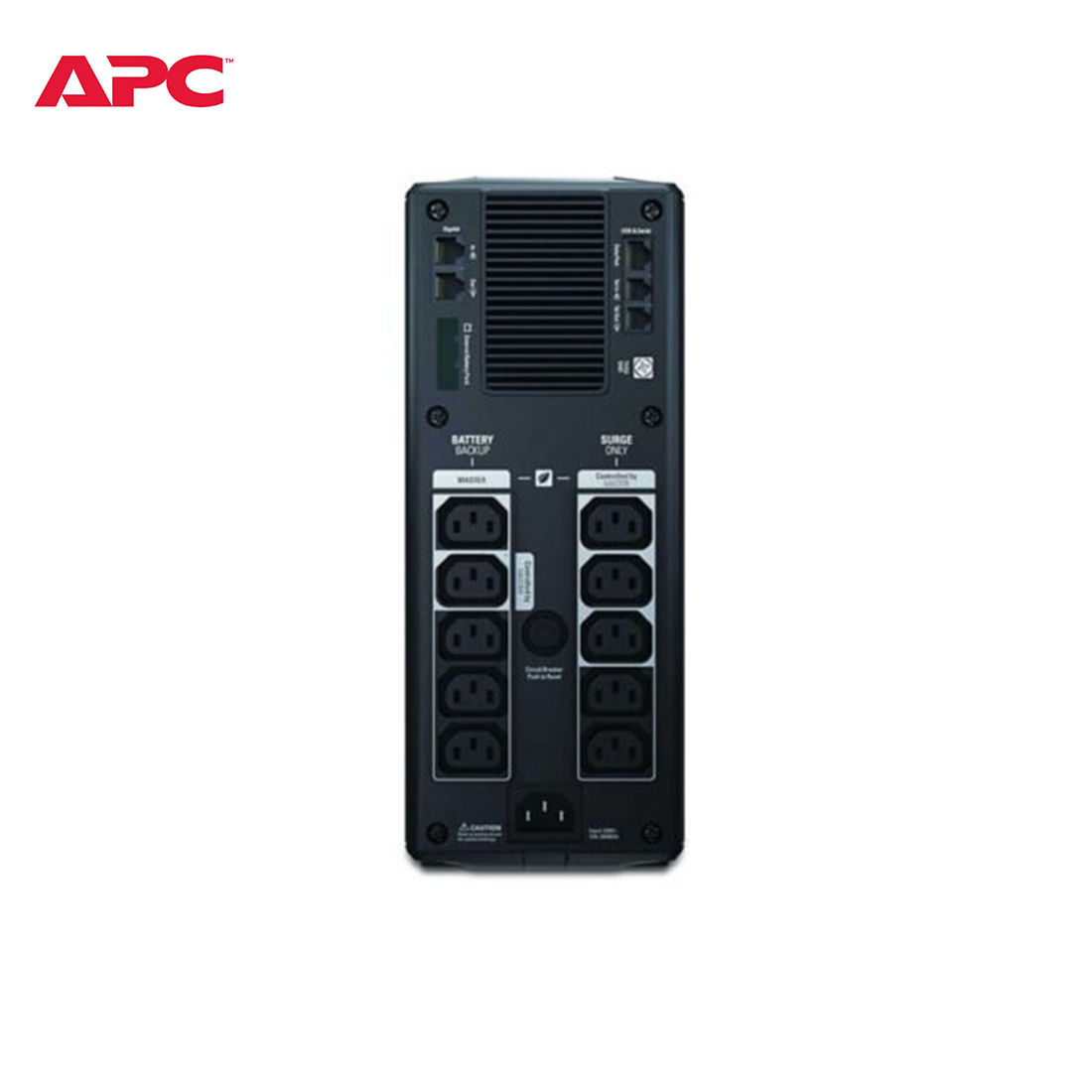

Output Connections	(5) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (5) IEC 320 C13 (selector_surgetitle)
Nominal Input Voltage	230V
Input Connections	IEC-320 C14
Input Voltage Range for Main Operation	176 – 294V
Typical Recharge Time	8hour(s)
Control Panel	Multi-function LCD status and control console
Height	301mm , 30.1CM
Width	112mm , 11.2CM
Depth	380mm , 38.0CM
Weight	12.7KG
Warranty	3 Yrs./Onsite Swap

Specification

Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power in W	865 W
rated power in VA	1500 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C13
output connection type	5 IEC 60320 C13 5 IEC 60320 C13 surge 2 IEC Jumpers
Number of cables	1
Battery type	Lead-acid battery
Range of product	Back-UPS Pro

Batteries & Runtime
รันไทม์	View Runtime Graph
ประสิทธิภาพ	View Efficiency Graph
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Number of battery replacement quantity	1
Battery voltage	24 V
Battery capacity	9.0 Ah
Battery charger power	23 W rated
Battery life	3…5 year(s)
Replacement battery	APCRBC124
Battery graph comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime	0

General
Provided equipment	1, detachable IEC power cord telephone cable user manual USB cable
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Output
Maximum configurable power in W	865 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Crest factor	3 : 1
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Maximum configurable power in VA	1500 VA
Transfer time	10 ms typical : 12 ms maximum

Conformance
Product certifications	A-Tick C-Tick CE GOST Telepermit TÜV
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Equipment protection policy	Lifetime : 200000 AUD Lifetime : 150000 euros Lifetime : 75000 GBP

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 %
Operating altitude	0...30000 ft
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 %
Storage altitude	0.0000000000…15240.0000000000 m
Acoustic level	45 dBA

Communications & Management
control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rate	441 J
Noise suppression	Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
