Part number : BR900MI-3Y

Brand : APC

Price : 7,700.00 Baht

(Ex-Vat 7%)

Delivery time : 1-2 Day

Warranty : 3Y

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

SKU	BR900MI
Brand	APC

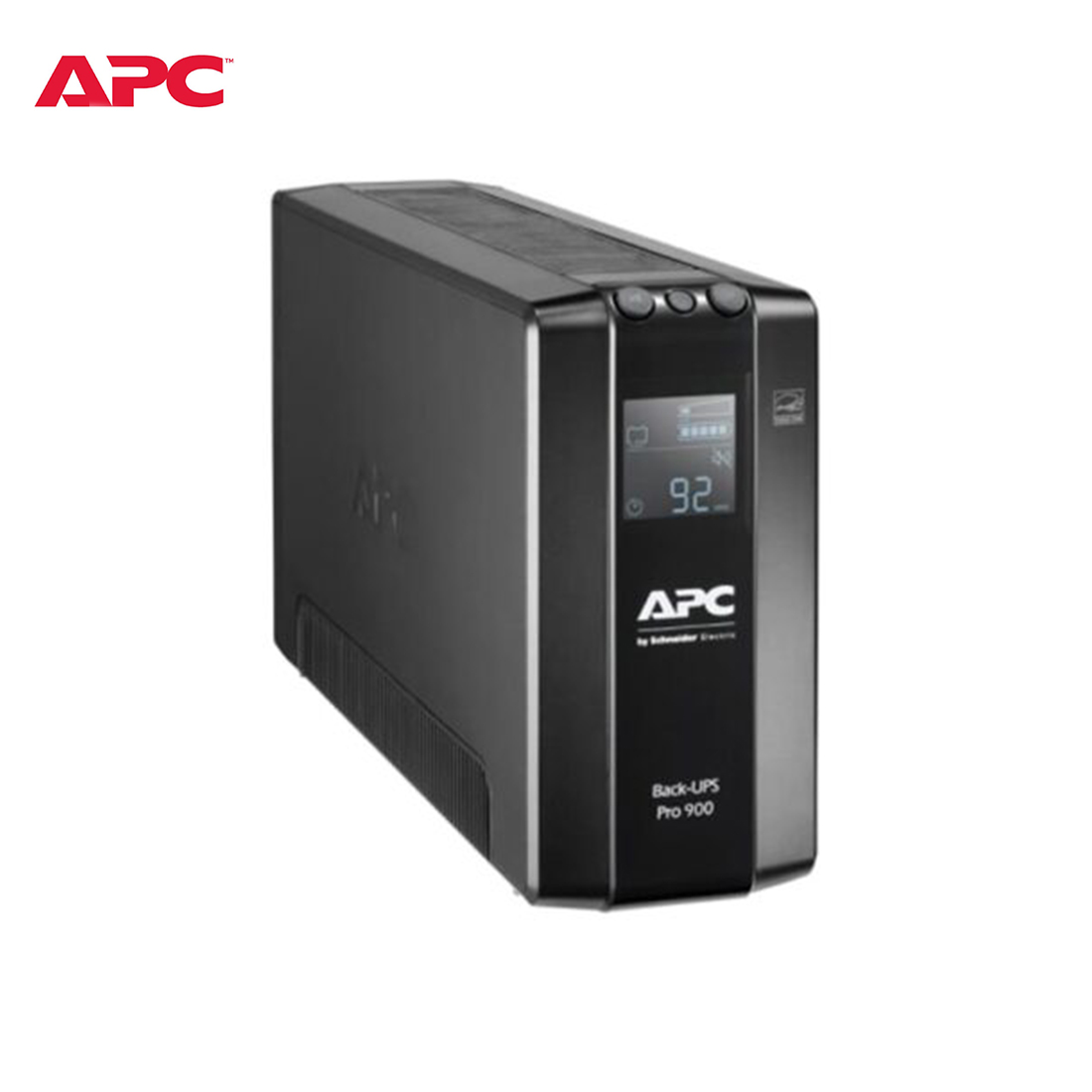

Model	[BR900MI] UPS “APC” Back UPS Pro BR 900VA/540Watt, 6 Outlets, AVR, LCD Interface
Output Power Capacity	540 Watts / 900VA
Nominal Output Voltage	230V
Topology	Line interactive

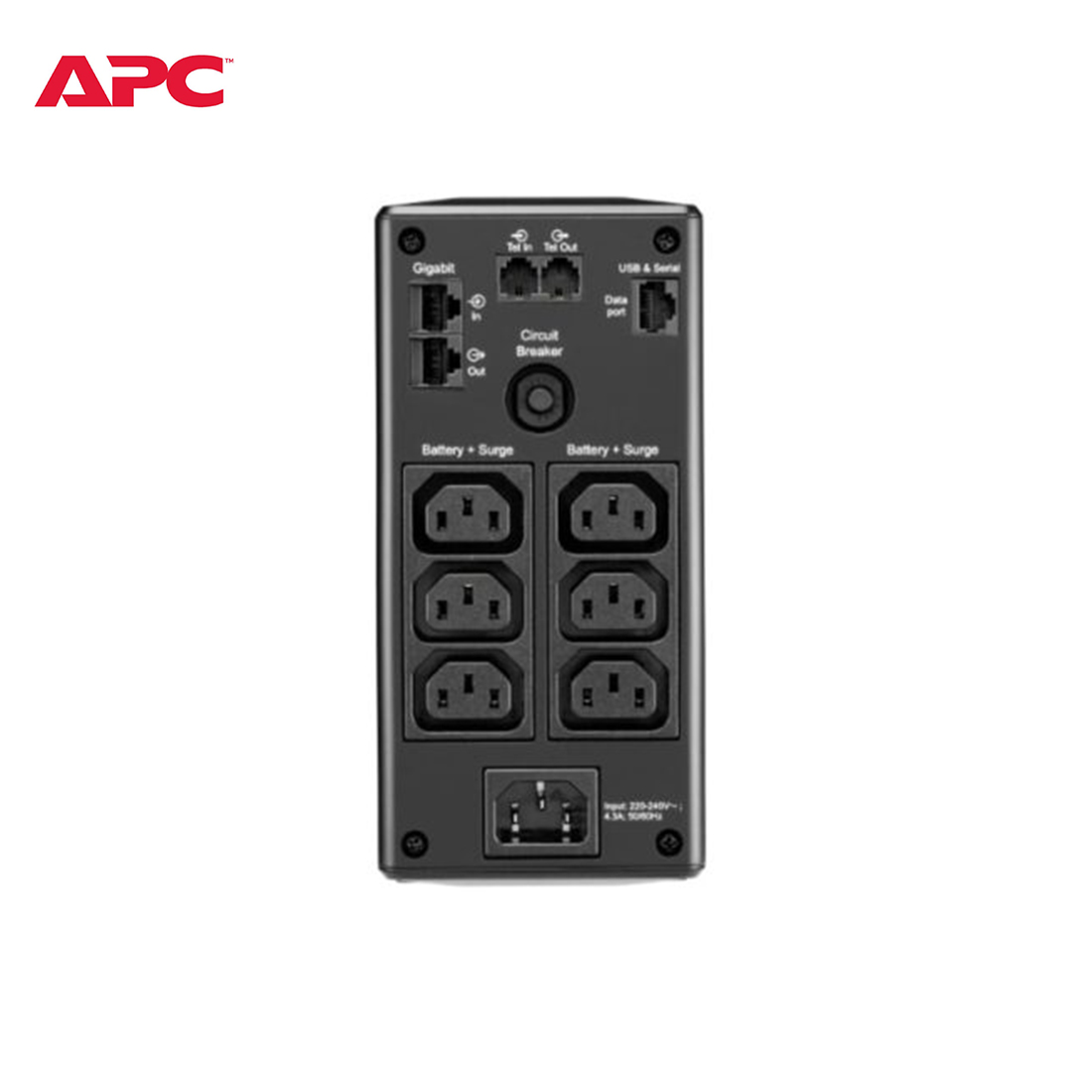

Output Connections	(6) IEC 60320 C13 (Battery Backup)
Nominal Input Voltage	230V
Input Connections	IEC 60320 C14
Input Voltage Range for Main Operation	176 – 294V
Typical Recharge Time	12hour(s)
Control Panel	Multifunction LCD status and control console
Height	190MM, 19.0CM
Width	91MM, 9.1CM
Depth	310MM, 31.0CM
Weight	7.1KG
Warranty	2 years repair or replace, 3 years repair or replace for European Union countries

Specification

Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power in W	540 W
rated power in VA	900 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C13
output connection type	6 IEC 60320 C13
Battery type	Lead-acid battery
Range of product	Back-UPS Pro

Batteries & Runtime
รันไทม์	View Runtime Graph
ประสิทธิภาพ	View Efficiency Graph
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	12 h
Number of battery replacement quantity	1
Battery voltage	12 V
Battery capacity	9.4 Ah
Battery charger power	11 W rated
Battery life	3…5 year(s)
Replacement battery	APCRBC164
Extended runtime	0

General
Provided equipment	user manual USB cable
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Output
Maximum configurable power in W	540 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Maximum configurable power in VA	900 VA
Transfer time	10 ms typical : 12 ms maximum

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 %
Storage altitude	0.0000000000…15240.0000000000 m
Acoustic level	45 dBA
Heat dissipation	16.4 Btu/h

Communications & Management
control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Noise suppression	Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
