Rating

VA
WATT

1000VA
500W

Input

Voltage
Frequency

220 VAC +/-25%
50Hz. +/-10%

Output

Voltage
Frequency
Wave Form
?

220 VAC +/-10%(AVR), +/-5%(Battery)
50Hz. +/-0.1%
 Sine Wave In Normal Condition
Modified Sine Wave In Backup Condition

System Protection

System Design
Transfer Time
Surge Energy Dissipation
Noise Filter
Overload & Short Circuit

Line Interactive UPS with Stabilizer, Microprocessor Control
Typical 2-4 ms.
320 Joules (6500A)
EMI Suppression
Reset Fuse Protection

Battery

Type
Recharge Time
Backup For Computer 1 Set

Maintenance Free Sealed Lead-acid Battery
4-6 Hours (90% After Fully Discharged)
Backup Time 15-30 Min. (Depend on loads)

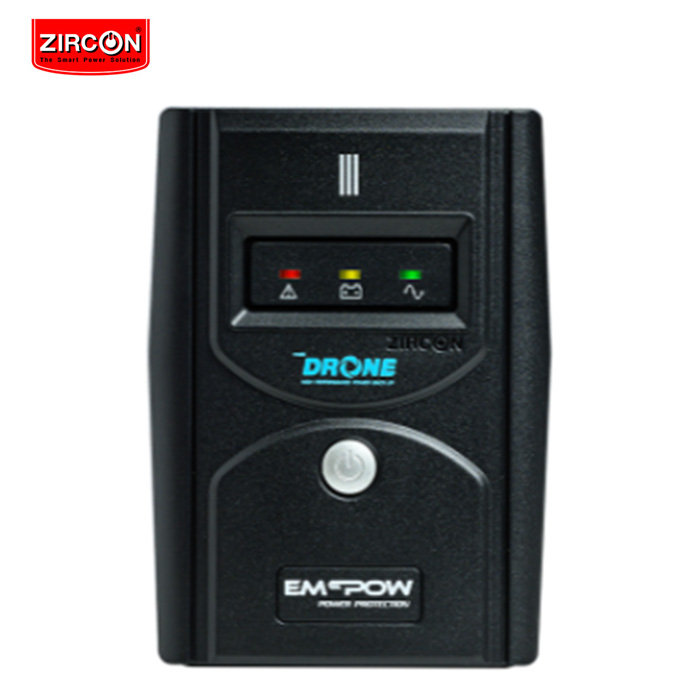

Indicator

LED Display

Normal, Battery, Battery Low, Battery Replace, Charge, UPS Fault

Environment

Ambient Temperature
Audible Noise
Relative Humidity
Safety
Electromagnetic Compatibility


-10 to +40 ºC
< 45db(1 Meter)
95% (Non-Condensing)
IEC/EN62040-1;IEC/EN60950-1

IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;

IEC61000-4-6;IEC61000-4-8

Standard

Regular Approvals

TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS

Dimensions

WxDxH (mm.)

101x291x143

Weight

Kilogram

4.5kg.
