1 Channel HD-AHD/CVI/TVI (5MP/1080P) MM/SM Fiber 20km(FC)+Data RS485

Part number : B1-1AHD502D-SM

Brand : BISMON

Price : 9,268.00 Baht
(Dealer price can log-in/ Exclude Vat)

Delivery time : 20 Day

Minimum order quantity : 1 pair

Warranty : 2 Year

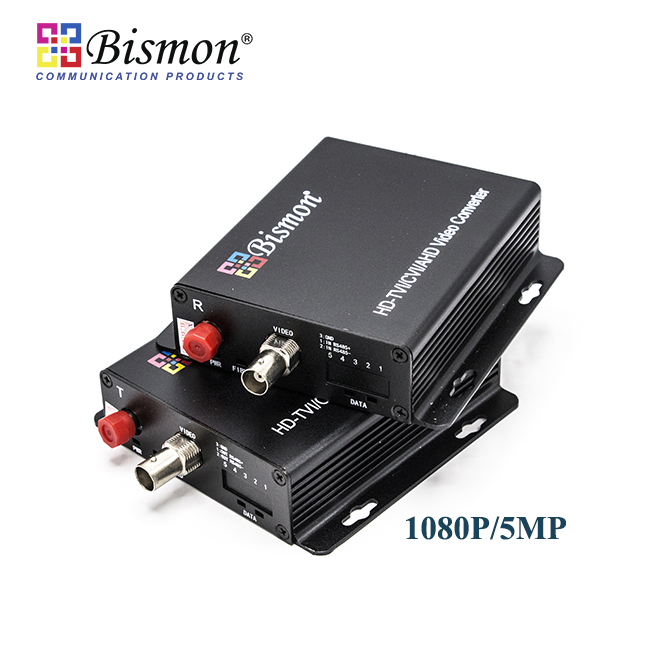

1 Channel HD-AHD/CVI/TVI (5MP/1080P) MM/SM Fiber 20km(FC)+Data RS485


BISMON HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HD-CVI, HD-TVI or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. BISMON 4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channels AHD, HD-CVI, HD-TVI, or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environments. It supports 5MP 4MP 3MP 1080P 720P Camera.


  • Non-compression coding technology
  • Automatically identify formats of input videos.
  • Support transmission of combined AHD, HD-CVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously through fiber optical cable
  • Support 5MP 4MP 3MP 1080P 720P Camera
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.
  • Wide-range temperature application: -15ºC ~65ºC
