OVERVIEW

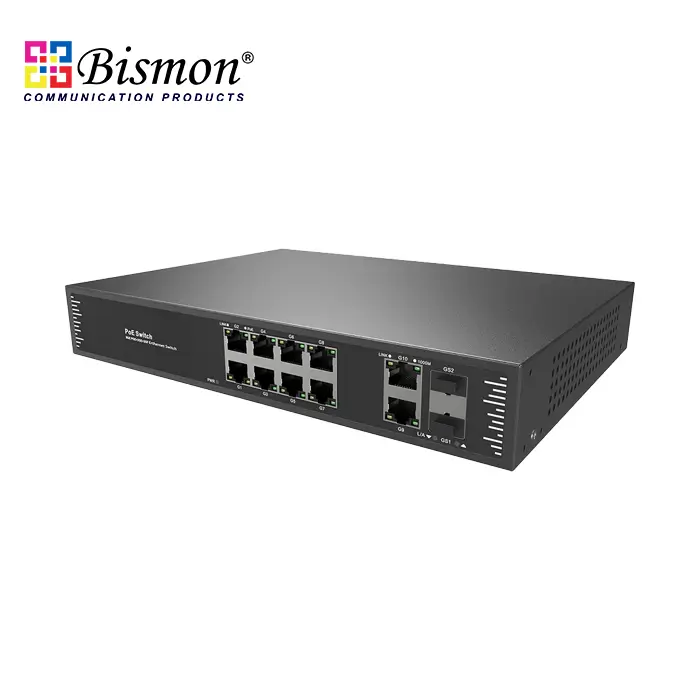

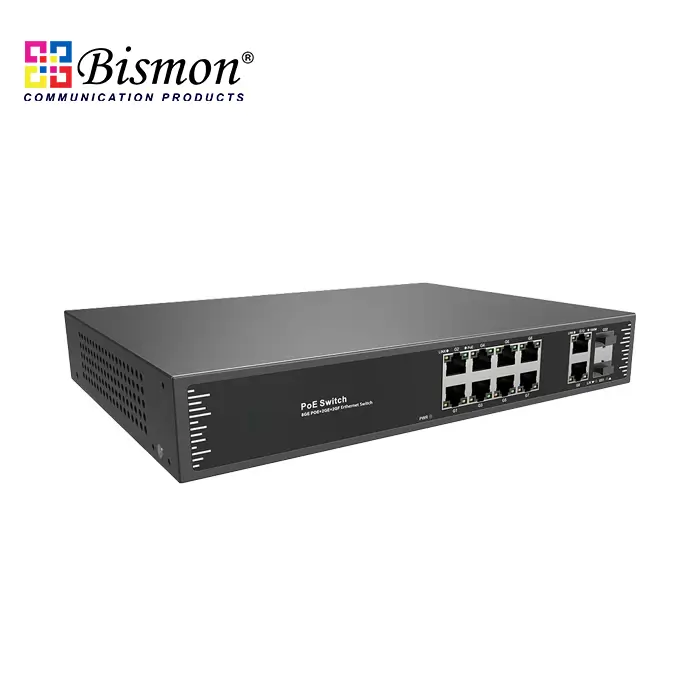

The B1-POE33128PF-at is a Gigabit PoE switch independently developed by BISMON. It has 10*10/100/1000M adaptive RJ45 ports and 2*1000M SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard, and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and identify the power-receiving devices that meet the standard and power them through the network cable. It can power wireless AP, IP camera, IP phone, visual intelligent building intercom, and other PoE terminal devices through the network cable to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, parks, scenic spots, supermarkets, factory dormitories, and small and medium-sized enterprises to build economical and efficient networks. Unmanaged mode, plug and play, no configuration, simple and convenient to use.

FEATURE

Gigabit access, uplink SFP fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on backpressure.

- Support Gigabit RJ45 port and uplink SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

- 8*10/100/1000Base-T RJ45 ports support PoE power to meet the PoE power supply needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, L/A, and PoE.

- Low power consumption, with fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION
