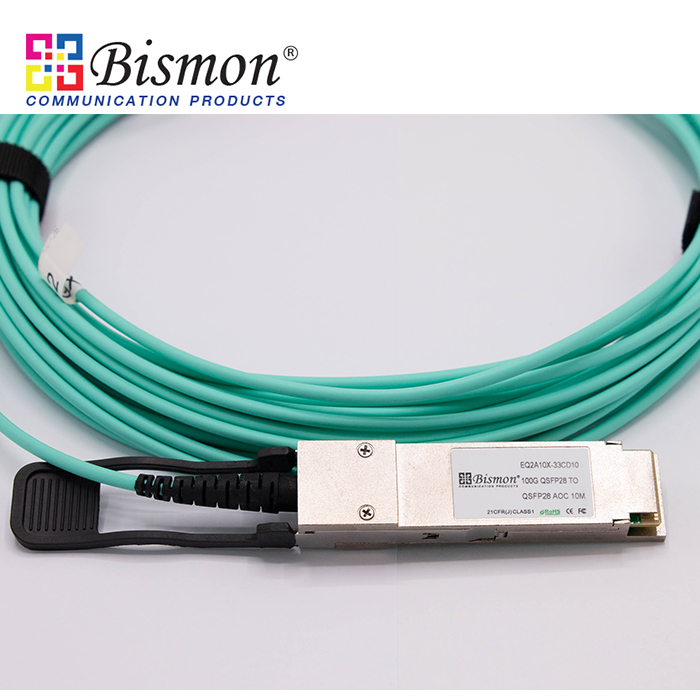

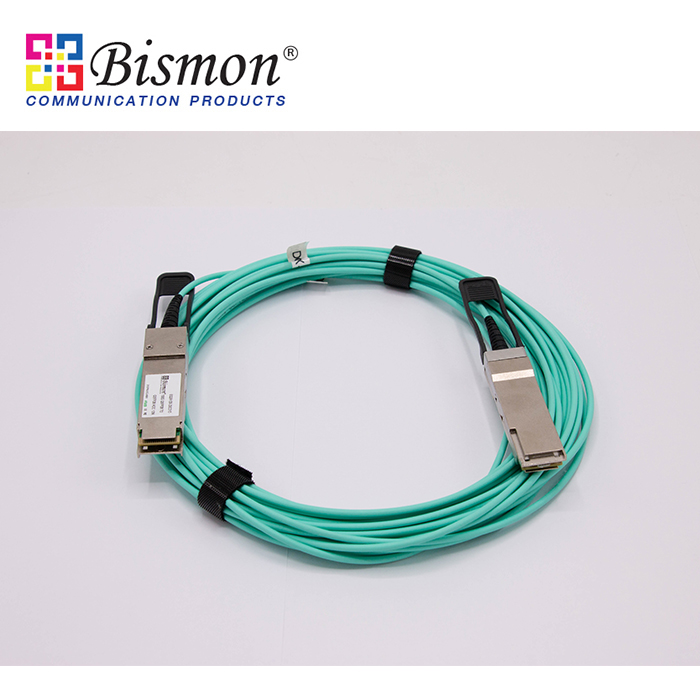

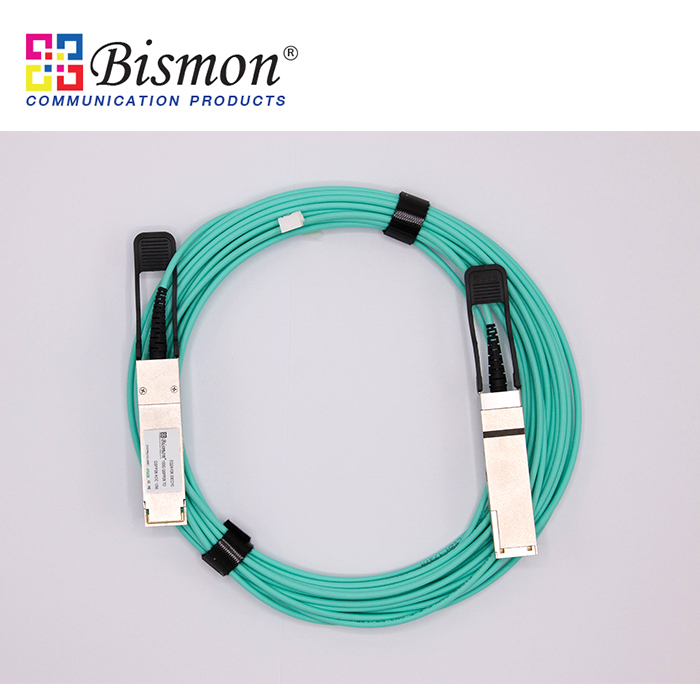

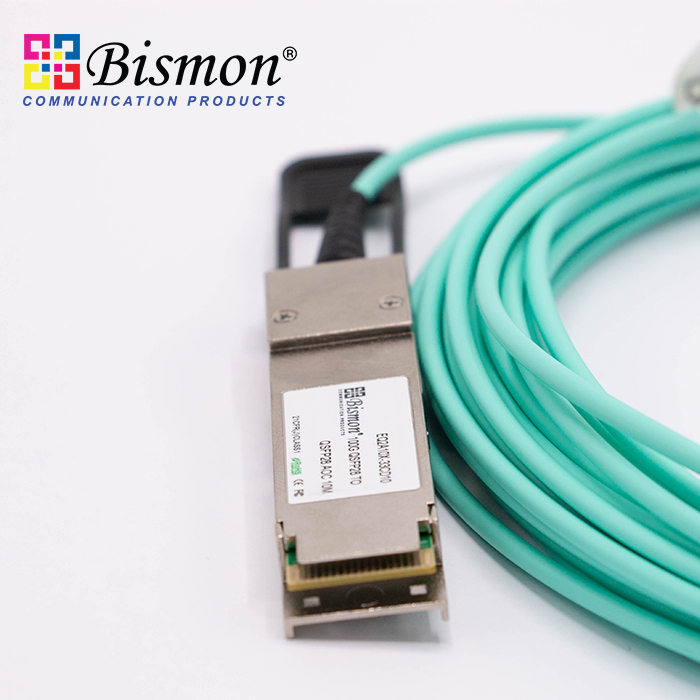

100G QSFP28 Breakout AOC Cable OM3 50/125um (10 เมตร)


Part number : B1-EQ2A10X-33CD10

Brand : BISMON

Price : 19,333.33 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OVERVIEW

            The BISMON B1-EQ2A10X-33CD10 are designed for use in 100 Gigabit per second links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm, IEEE 802.3 100GBASE-SR4

           The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors, control and bias blocks. For module control, the control interface incorporates a Two Wire Serial interface of clock and data signals. Diagnostic monitors for VCSEL bias, module temperature, transmitted optical power? received optical power and supply voltage are implemented and results are available through the TWS interface. Alarm and warning thresholds are established for the monitored attributes. Flags are set and interrupts generated when the attributes are outside the thresholds. Flags are also set and interrupts generated for loss of input signal (LOS) and transmitter fault conditions. All flags are latched and will remain set even if the condition initiating the latch clears and operation resumes. All interrupts can be masked and flags are reset by reading the appropriate flag register. The optical output will squelch for loss of input signal unless squelch is disabled. Fault detection or channel deactivation through the TWS interface will disable the channel. Status, alarm/warning and fault information are available via the TWS interface.

            The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4 channel output buffer, diagnostic monitors, and control and bias blocks. Diagnostic monitors for optical input power are implemented and results are available through the TWS interface. Alarm and warning thresholds are established for the monitored attributes. Flags are set and interrupts generated when the attributes are outside the thresholds. Flags are also set and interrupts generated for loss of optical input signal (LOS). All flags are latched and will remain set even if the condition initiating the flag clears and operation resumes. All interrupts can be masked and flags are reset upon reading the appropriate flag register. The electrical output will squelch for loss of input signal (unless squelch is disabled) and channel de-activation through TWS interface. Status and alarm/warning information are available via the TWS interface.



Active Optical Cable 100GbE :

•  QSFP28 SR4 850nm 100m MPO with DDMI Transceiver

•  Up to 28 Gbps Data rate per channel

•  Maximum link length of 100m data rate EDR(100Gb/s) links on OM3 multimode fiber

•  High Reliability 850nm VCSEL technology

•  Electrically hot-pluggable

•  Digital diagnostic MSA SFF-8665 compliant

•  Compliant with QSFP28 MSA

•  Case operating temperature range:0°C to 70°C

•  Power dissipation < 2.5 W

•  IEEE 802.3 100GBASE-SR4 compliant



Applications

•  Data center

•  InfiniBand EDR/100GbE NIC

•  Fiber channel



Standard

•  Compliant to IEEE 802.3 bm

•  Compliant to SFF-8436

•  RoHS Compliant.
