DESCRIPTIONS

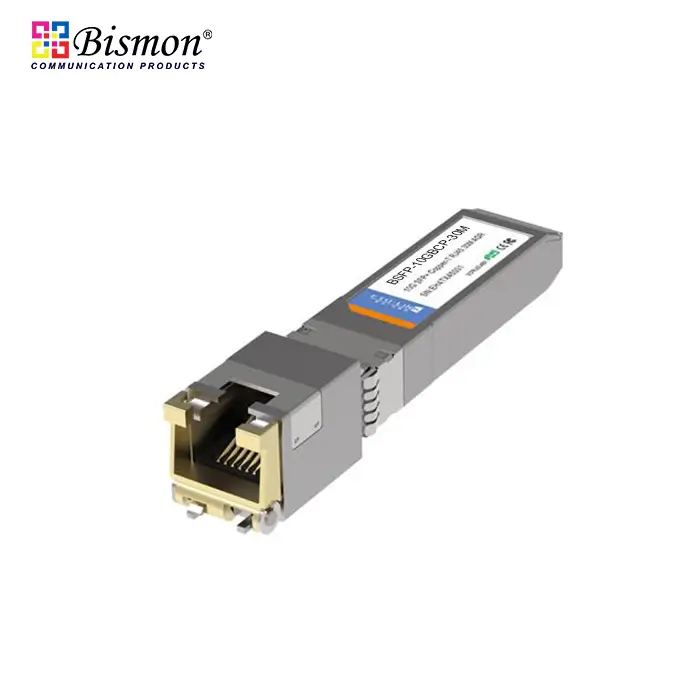

The SFP-10GBASE-T is a module that supports Hot-pluggable SFP+ footprint SFP type 10G-SR SFI interface to 1G/2.5G/5G/10G RJ45 interface. The SFP-10GBASE-T supports TX-DISABLED control signal and provides RX-LOS signal. In 2.5G / 5G / 10G and 1G applications, the automatic identification and base in 1000 -X module and 10 gr type automatic rearrangement of between modules, and inform the SFP master the current module type, greatly improve the applicability of the module and application performance.

SFP–10Gbase-T support working mode of special code control module, easy to use more application scenarios, such as passive support USXGMII, SFI rate with RJ45 interface, passive follow SFI interface RJ45 rate, etc.

PRODUCT FEATURES

-Supports 10G/5G/2.5G RJ45 interfaces and 10G-R SFI interface adaptation

-Supports automatic switching between 1G RJ45 interface and 1000BASE-X SFI interface

-Hot-pluggable SFP+ footprint

-Fully metallic enclosure for low EMI

-Low power dissipation

-Support RX_LOS alerts and TX_DISABLE control

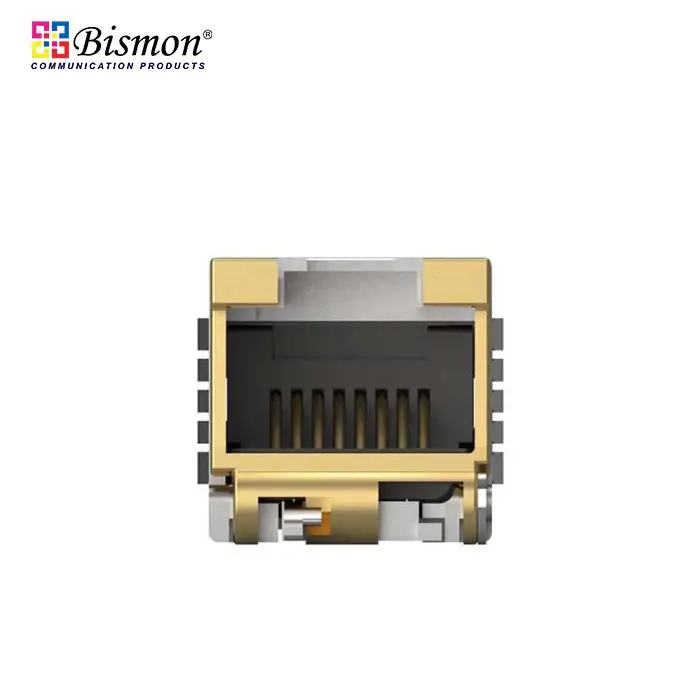

-Compact RJ-45 connector assembly

-Access to physical layer IC via 2-wire serial bus

-Supports Links up to 60m using Cat-6A Cable

-RoHS Compliant

-Operating case temperature: 0 C to 70 C
