OVERVIEW

BISMON’s ADSS are All-Dielectric self supporting cable and single jackets designed for aerial installation. The optical fiber cable(ADSS) design provides no supporting part or messenger wire required. BISMON provides hardware parts for installation with ADSS cable support on the pole. The cable inside a multi-loose tube is filled with a water-resistant filling compound or designed for water blocked with water-blocking material in the side cable. The cable is highly tensile by aramid yarns and FRP-strength member rods inside. Outer sheath made from HDPE. The cable approved by TISI 2166-2548 in Thailand standard Standard packing(wooden) 4,000M/Reel.

ADSS cable (All Dielectric Self-Supporting) Non-metallic Single jacket structure cable. Designed for Aerial Cable outside plant and duct applications in local and campus network or telecom loop architectures and security solutions (CCTV, Network IP).

Applications

 • Adopted to outdoor aerial self-supporting installation

 • Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications

 • Ethernet LAN Network, CCTV, Network Camera, PLC

 • Mechanically, rugged, cable design for : Aerial, duct

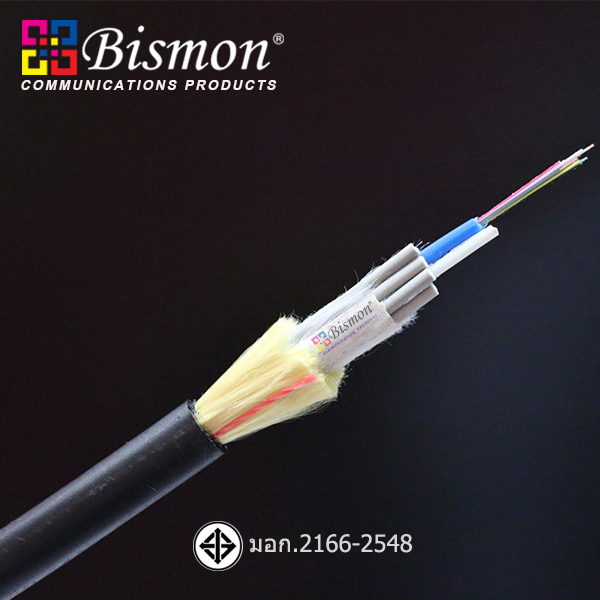

Product Construction

Fiber :

            • 2-120 Core fibers

            • Loose tube gel-filled

            • Color-coding per TIA/EIA 598-A

Central Strength Member :

            • FRP rod (Fibre Reinforcement Plastic)

            • Aramid Yarn

Ripcords :

            • 1 ripcords made from Polyester cords

Water blocking elements :

            • Water swellable yarn&Water blocking tape

Outer Jacket :

            • Black UV-and HDPE

            • Made to order cable marking (Thai word)

Max Tensile :

            • Max. tensile load: (short term) 2000N

Installation conditions :

            • Max. pole span length: 60-80 m

            • Wind velocity: 150 km/hr

TISI Certificate :

            • TISI 2166-2548
