OVERVIEW

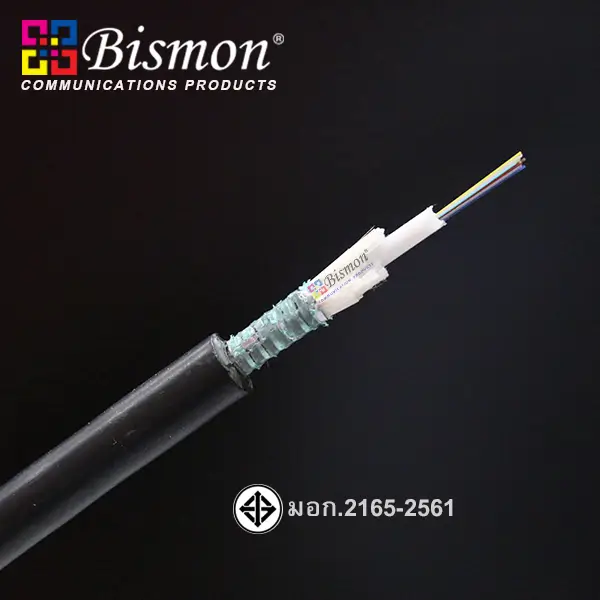

The BISMON fibers, either of multimode 50/125um (OM4) type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A corrugate steel tape armoured sometimes sheathed with high density polyethylene (HDPE) for cable with high fiber count, lacates in the central loose tube fully filled. Aramid yarn as tensile strength member are stranded into a compact and circular cable core. The corrugate steel tape armoured is longitudinally applied over the cable core. whice is filled with the filling compound and water blocking tape to protect it from water ingress. The cable is completed with a HDPE sheath.

Characteristics

Accurate fiber excess length ensures good mechanical and temperature performance high strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber specially designed compact structure is good at preventing loose tubes from shrinking HDPE sheath protects cable from ultraviolet radiation crush-resistance and flexibility corrugate steel tape armoured enhances the cable crush-resistance, impact-resistance and moisture-proof corrugate steel wire armoured ensure tensil strength small diameter, light weight and installation friendliness long delivery length

Applications

 • Armoured outdoor mono tube fiber optic cable is intended for all high speed data applications

 • Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications

 • Ethernet LAN Network, CCTV, Network Camera, PLC

 • Outdoor Cable Design for : Duct/Aerial/Direct Buried

Product Construction

Fiber :

            • 2-12 Core fibers (Multi-mode 50/125um OM4)

            • Single Loose Tube PBT complex material

            • Loose tube Filling compound Thyrotrophic jelly

            • Color-coding per TIA/EIA 598-A

Strength Member :

            • E-Glass yarn

Ripcords :

            • Aramid yarn

Water blocking elements :

            • Water blocking tape

Outer Jacket :

            • HDPE, Color Black

Max Tensile :

            • Max.tensile: 600N

Max. Crush :

            • 800N/100mm

Armoured :

            • Corrugated steel tape

TISI Certificate :

            • TISI 2165-2561
