Multi-Fiber Switch

Include:

- Fiber Ring Multimode OM3/4/5 compatible, SC-SC, 150M

- MPO Fiber ring 12Fiber, 61M, MPO-unpinned to MPO, select pinned or unpinned network MPO connector

Features:

• 12 fiber switching capability

• Dual-wavelength, Single-Mode or Multimode

• Bidirectional

• Rechargeable Battery with USB port charging/communication

Applications:

• Converts a single port tester into a multi-fiber tester utilizing your existing OLTS, OTDR, and VFL test equipment

• Efficiently test 12-fiber links without disconnecting/reconnecting

• Bi-directional testing without moving cables

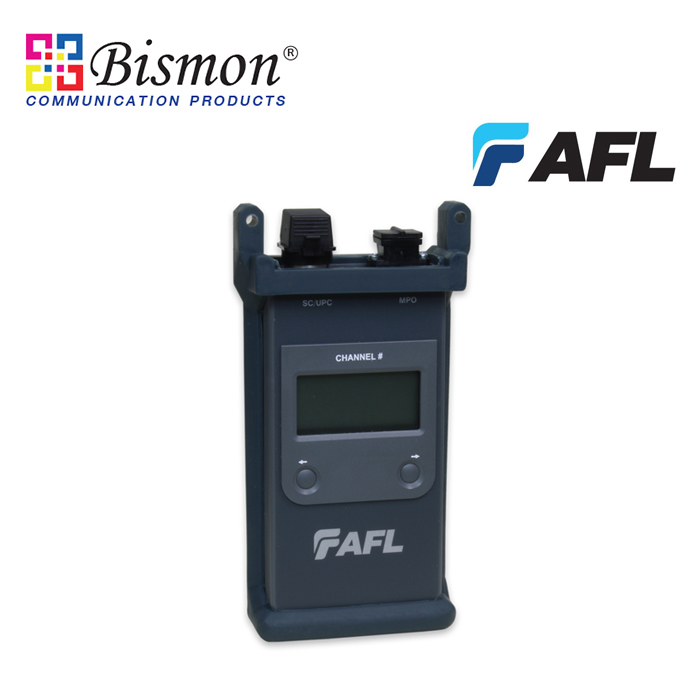

Multi-Fiber Switch

Efficiently tests multi-fiber links.

The density demands of today’s networks are driving more demand for multi-fiber connectivity. As the adoption of multi-fiber connectors becomes more prevalent in data centers, the ability to test these types of connections accurately and quickly has become even more critical.

AFL's Multi-fiber switch enables the testing of 12 fiber cables without the need to use a breakout cable.  The switch allows you to utilize a single piece of test equipment to seamlessly cycle through all of the fibers in a connector regardless of polarity without having to disconnect and reconnect your test equipment making the testing of your network more efficient, saving you both time and money.

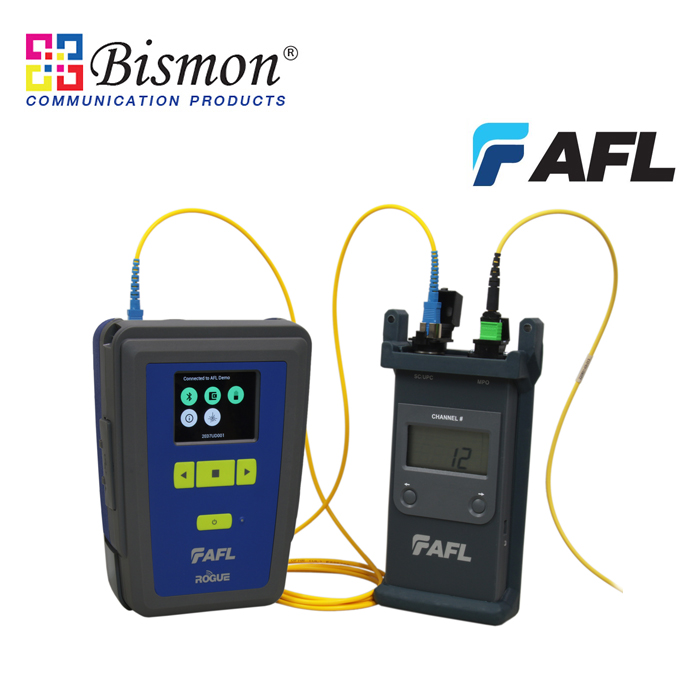

AFL’s Multi-Fiber switch can be used with AFL's Rogue platform to make testing automatic.

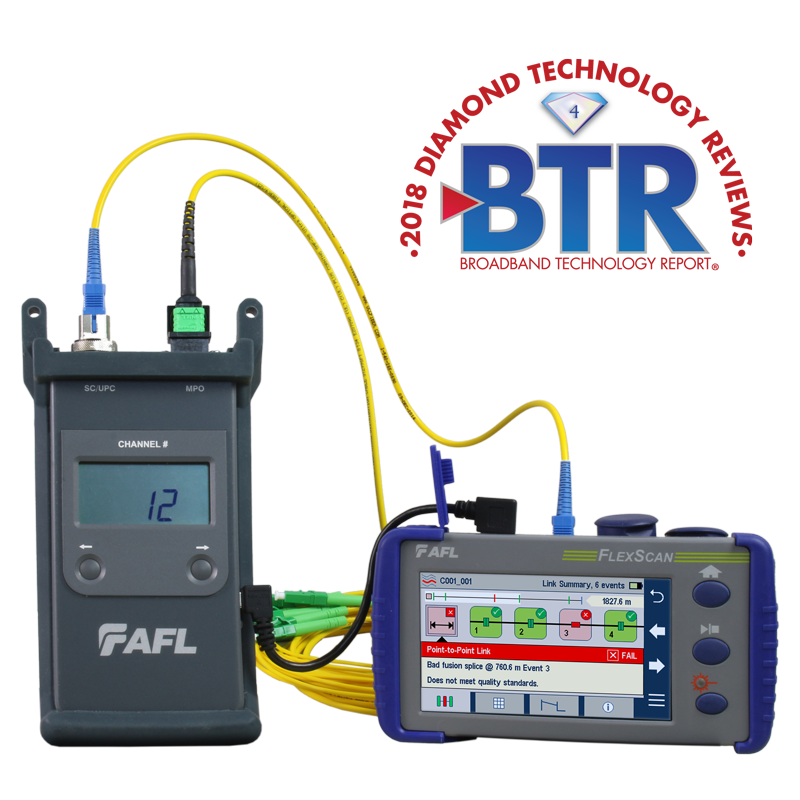

It is also compatible with your existing OTDR, OLTS and Certification equipment.

Ordering Info

Multi-fiber switches are available in single-mode and multimode configurations, as follows:

• MFS-12-MM-USC: 12-fiber multimode switch, UPC-SC with soft case

• MFS-12-SM-USC: 12-fiber single-mode switch, UPC-SC with soft case

• MFS-12-SM-ASC: 12-fiber single-mode switch, APC-SC with soft case

• MFS-12-SM-ASC-FR: 12-fiber single-mode switch, APC-SC with soft case & MPO fiber ring (non-pinned)
