Model

B1-IPS33248FM

Interface Characteristics

Fixed Port

Power off alarm switch port (FAULT)

1*RS232 Console port (115200,N,8,1)

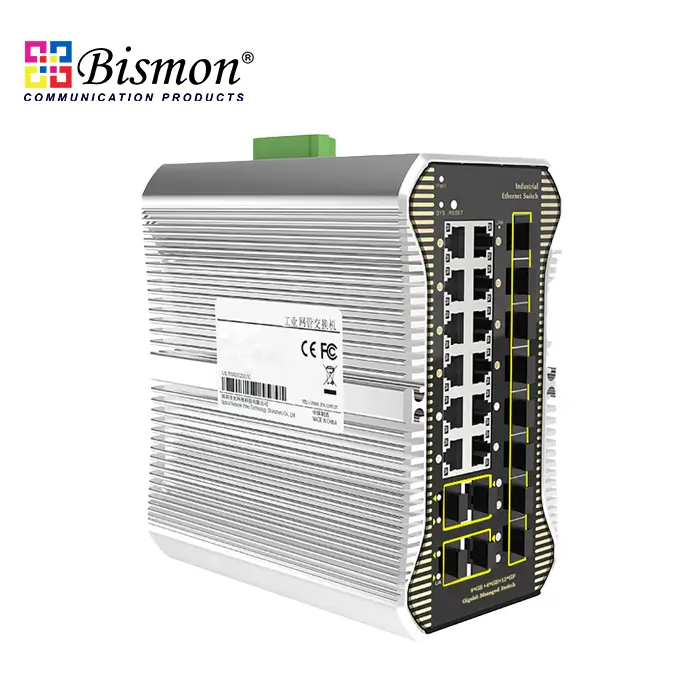

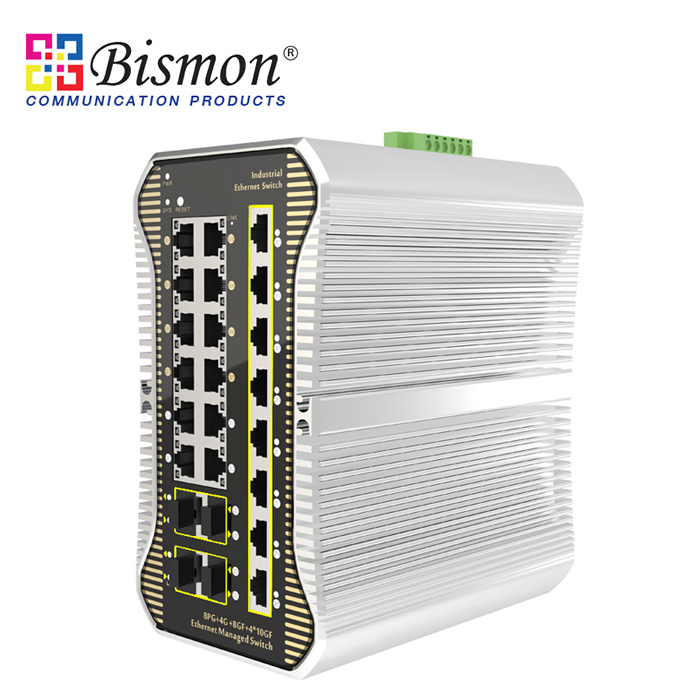

12*10/100/1000Base-T RJ45 ports (Data)

12*100/1000Base-X uplink SFP fiber ports (Data)

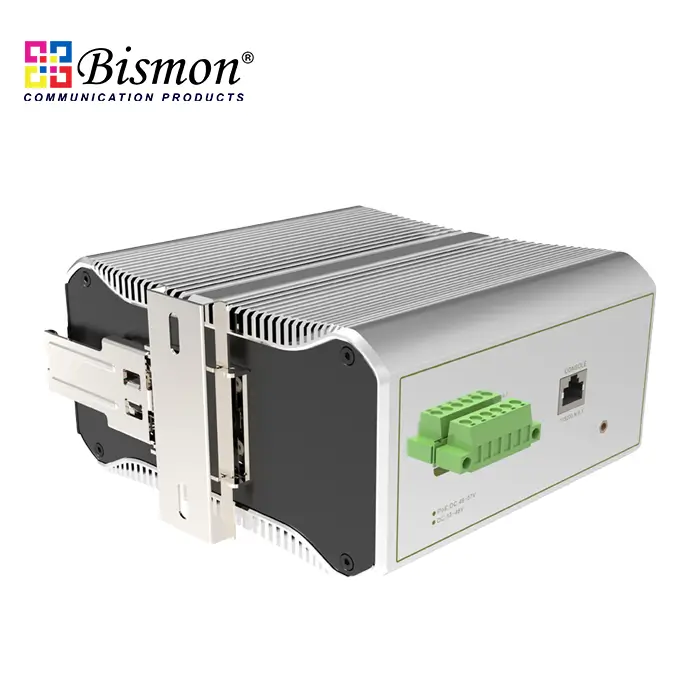

2 sets V+, V- redundant DC power port (6P Phoenix terminal)

Ethernet Port

Port 1-12 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meters)

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e or later UTP (≤100 meters)

Optical Fiber Port

Gigabit optical fiber interface, default matching optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)

Optical Fiber Port Expansion

Support Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

Chip Parameter

Network Management Type

L2+

Network Protocol

IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

52Gbps (non-blocking)

Forwarding Rate @64byte

35.71Mpps

MAC

8K

Buffer Memory

8M

Jumbo Frame

9.6K

LED Indicator

Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber Port: L/A (Green)

Reset Switch

Yes. press and hold for 10 seconds and then release to restore factory settings

Power Supply

Power Consumption

Standby<20W, Full load<30W

Working Voltage

DC12-48V, 6P industrial Phoenix terminal, supports anti-reverse protection.

Power Supply

No, optional 24V/36W or 24V/60W industrial power supply

Physical Parameter

Operation Temp/ Humidity

-40~+80°C, 5%~90% RH Non condensing

Storage Temp/ Humidity

-40~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

166*150*90mm

Net /Gross Weight

2.1kg / 2.3kg

Installation

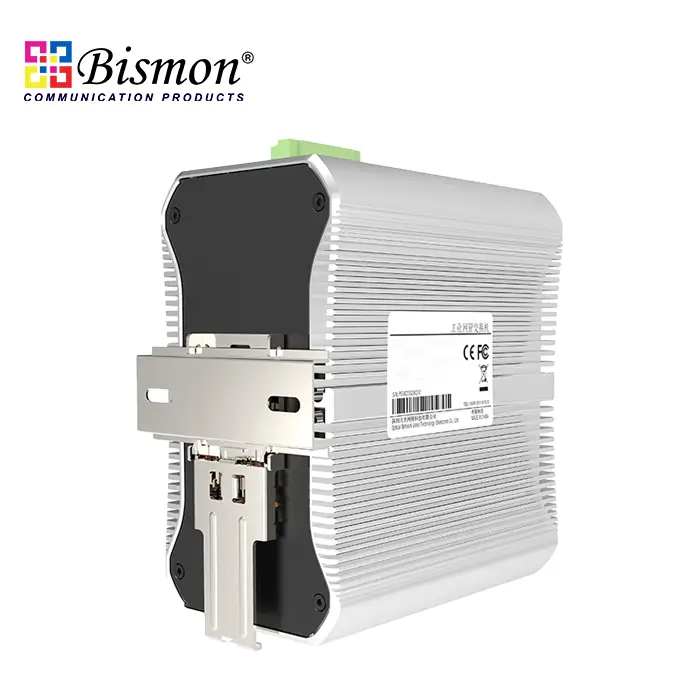

Desktop, 35mm DIN Rail

Certification & Warranty

Lightning Protection

Protection level: IP40

Lightning protection: 6KV 8/20us

IEC61000-4-3 (RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22 (EN55022): Class B

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnet field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz

IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV

IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s

IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV

Mechanical Properties

IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

3 years, lifelong maintenance.

Network Management Feature

Interface

Port temperature protection settings

IEEE 802.3x flow control (Full duplex)

Broadcast storm suppression based on port rate

Port EEE Green Ethernet energy-saving configuration

Limit the speed of the message traffic at the inbound and outbound ports mini granularity is 64Kbps

L3 Feature

ARP protocol, max 1024 entries

Static route/default route, max 128 entries

L2+ network management function, IPV4/IPV6 dual-stack management

L3 routing forwarding, communication between different network segments and different VLAN

VLAN

Port configuration of Access, Trunk, Hybrid.

VLAN based on MAC, VLAN based on the protocol

(4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration

Port Aggregation

LACP, Static aggregation, Max 12 aggregation groups and max 8 ports per group

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring Network Protocol

G.8032 (ERPS), ring network recovery time less than 20ms, 250 Ring at most, Max 250 devices per ring.

Multicast

MLD Snooping, Multicast VLAN, Fast log out, IGMP Snooping v1/v2/v3 and 1024 multicast groups at most

Port Mirroring

Bidirectional data mirroring based on port

QoS

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

Flow-based Rate Limiting, Flow-based redirection

Flow-based Packet Filtering, 8*Output queues of each port

802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark

ACL

ACL distribution based on port and VLAN

L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.

Security

Port-based IEEE802.1X authentication

SSL guarantees data transmission security

Quad binding function of IP+MAC+VLAN+ports

Port isolation, ARP message speed limit function

MAC address learning limit, MAC address black hole

Anti DoS attack, Port broadcast message suppression

Hierarchical user management and password protection

SSH 2.0 provides a secure encrypted channel for user login

Host data backup mechanism, ARP intrusion detection function

IP source address protection, AAA & RADIUS & TACACS+ certification

DHCP

DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay

Management

Web network management (https)

Link Layer Discovery Protocol(LLDP)

Viewing CPU Instant Utilization Status

NTP clock, One click restore, SNMP V1/V2/V3

Cable status check, Ping detection, System work log

ONV-NMS platform cluster management (LLDP+SNMP)

Console/AUX Modem/Telnet/CLI command line configuration

FTP, TFTP, Xmodem, SFTP file upload and download management

System

Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
