SPECIFICATION

Provider Mode Ports

• Business interface (Fixed port): 4*10G Base-X(SFP+), 16*10/100/1000 Base-T
• Management Port: Support console
• Power interface: Phoenix terminal, dual power supply redundancy
• LED lights (LED Indicators): PWR, Link/ACT LED

Cable type&Transmission distance

• Twisted-pair: 0-100m (CAT5e,CAT6)
• Monomode optical fiber: 20/40/60/80/100 Km
• Multimode optical fiber: 550 m

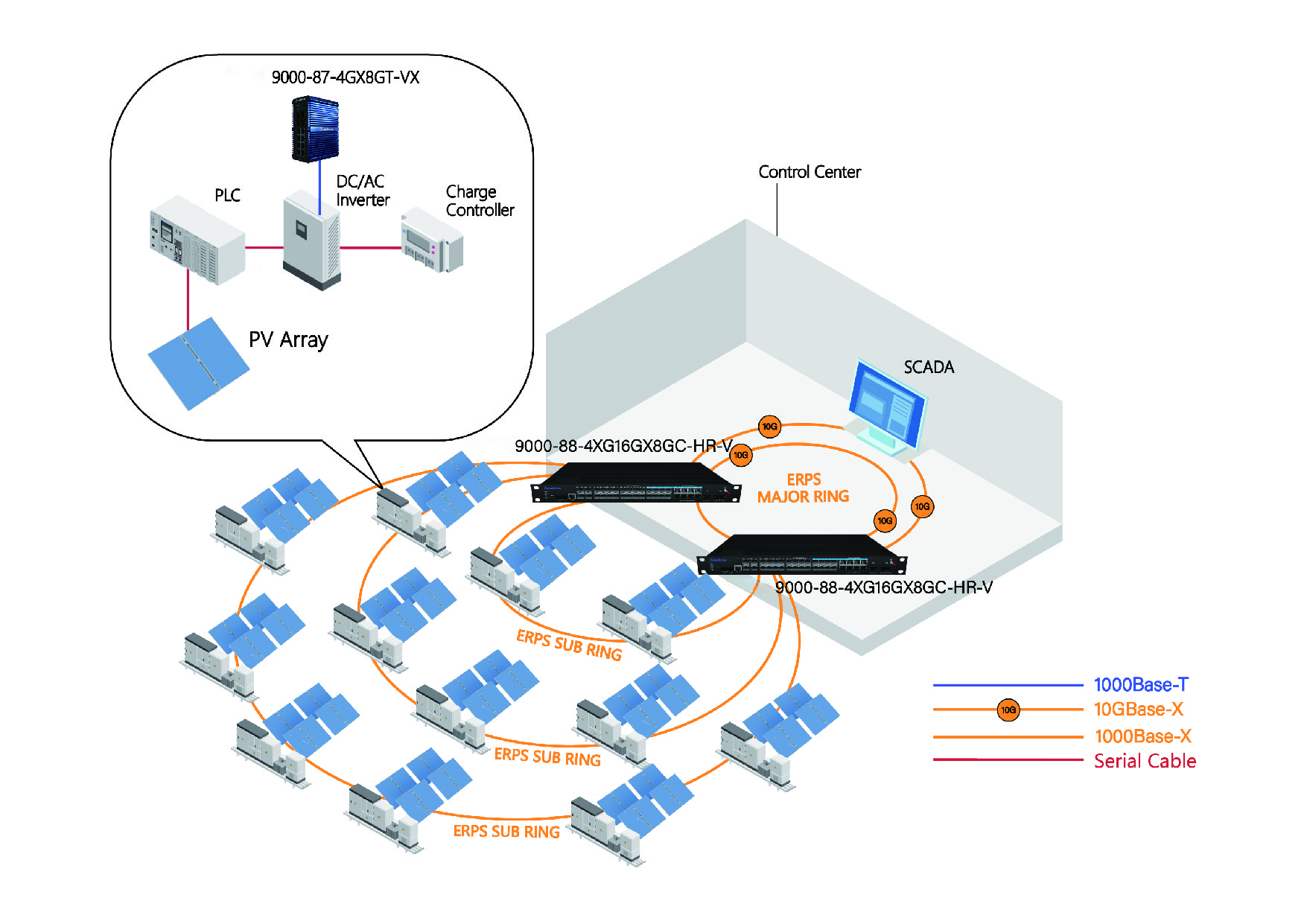

Network Topology

• Ring topology: Support
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: Support

Electrical Specifications

• Input voltage: DC 48-58V
• Total Power consumption: <386W

PoE Support

• PoE port: 1-16
• PoE Protocol: 802.3af, 802.3at
• PoE pin assignment : 1,2,3,6
• PoE management: Support

Layer 2 Switching

• Switching capacity: 68G
• Packet forwarding rate: 50.59 Mpps
• MAC address table: 16K
• VLAN Support: Support 4K
• Buffer: 12M
• Forwarding delay: <10 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10 Kbytes
• Spanning Tree Protocol: Support STP/RSTP/MSTP
• Ring Protocol: Support ERPS
• Link Aggregation: Support 12 groups
• Multicast: Support IGMP Snooping
• Port Mirroring: Support
• Storm Control: Support
• Interface Counters: Support
• QINQ: Support
• 802.1X: Support
• Radius/Mac certification: Support
• Port Isolation: Support
• Rmon: Support
• NTP client: Support
• DHCP client: Support
• DHCP snooping: Support
• Ping/tracert detection: Support
• Dying gasp: Support
• Optical module DDM: Support
• Layer 3 Router:
• Static routing: Support 512 static routes

Convergence

• Access Control List (ACL): Support ACL 500; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL
• Quality of Service (QOS): Support QoS re-marking and priority mapping; Support SP, WRR queue scheduling; Supports entrance speed limit and exit speed limit; Support flow-based QoS

Management

• Command line (CLI): Support
• Management serial port (Console): Support
• Telnet /SSH: Support
• WEB management: Support
• Management IP: Support IPV4/IPV6
• SNMP: Support SNMPv1/v2c/v3
• User Management: Support
• System Log
• File upgrade: Support
• Firmware upgrade: Support

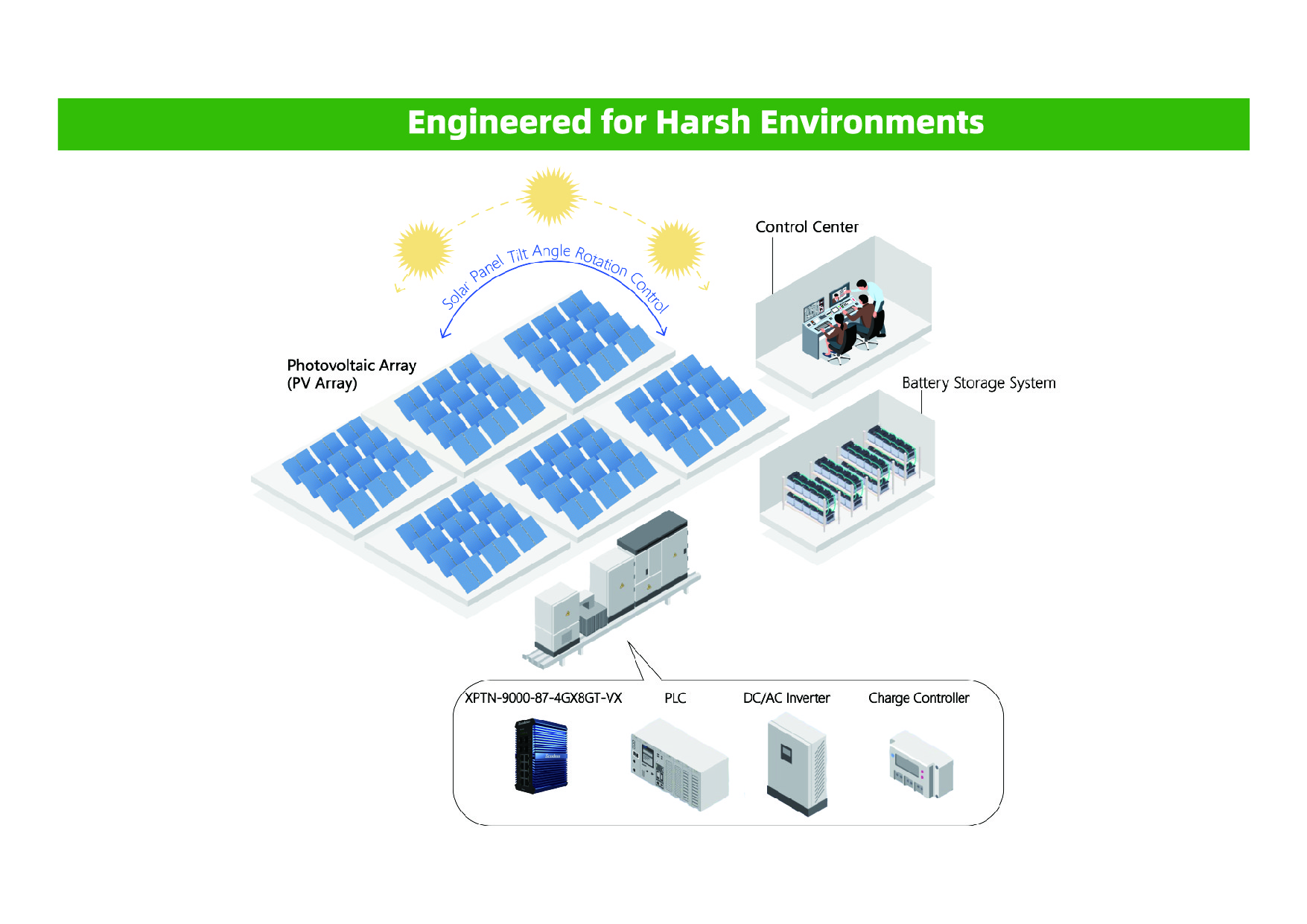

Environmental conditions (Environment)

• Operating temperature: -40oC ~ +75oC The device is tested for 8 hours at temperatures in 85°C
• Storage temperature: -40oC ~ +85oC
• Relative humidity: 5%~95% non-condensing
• Thermal methods: Fanless design, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions

• Installation Method: Rail installation, wall-mounted installation
• Weight: 1.3 Kg

• IP Level: IP50
• Surge protection of Power: IEC 61000-4-5 Level X (10KV/10KV) (8/20us)
• Surge protection of Ethernet port: IEC 61000-4-5 Level X (6KV/4KV) (10/700us)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level4 (30A/m)
• DIP: IEC 61000-4-11 Level3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m

Authentication

– Certificates: CCC/CE/FCC/RoHS

– Accessories: Equipment, terminals, certificate, instructions, Adapter (optional)
