Installation

1.    When you unpack this product package, please check the devices with the packing list .

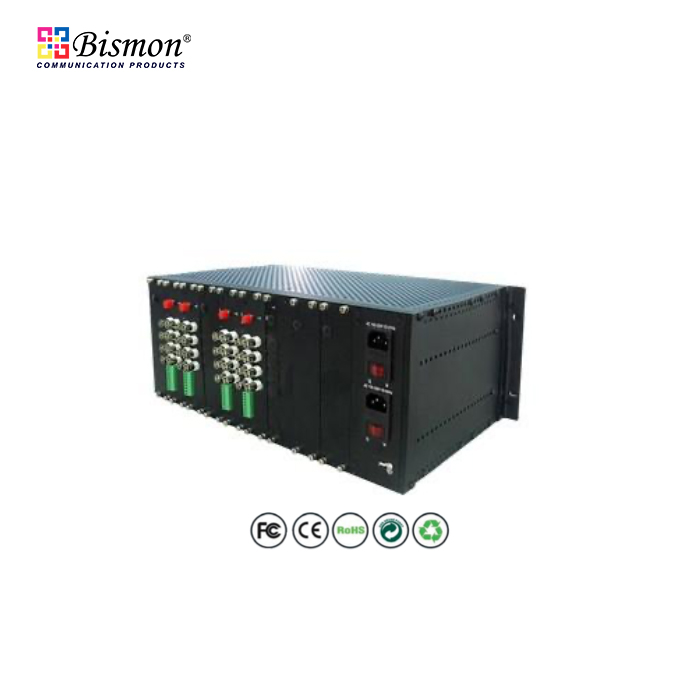

2.    Install the 18-slots chassis into a standard 19” cabinet and fix it.

3.    Insert the video converter module into the guide rails of the slot . Make sure the power plug of the video converter module is inserted in the power port of the chassis. When the converter module fully and firmly fits the chassis, fasten the screws. Follow the above steps, install all necessary converter modules in the chassis, then block up any slots not for use temporarily .

4.    If the chassis is with a dual power supply, please turn on both two power supplies, and they will work together. This will extends the life cycle of the power supply and can make sure the chassis work normally in case one of them breaks down.

Specifications

-Available Module Slots: 18
-Video converters module adapted: 1-8 video or 1-8 video+options Power in : AC 100 V~260 V
-Power out : DC5V 20A
-Dimensions:L482.6 *W313.5*H177 mm ;19 inch 4U Shipping Weight: 6.2Kg Environmental Construction: Aluminum
-MTBF: > 100,000 hours
-Operating Temp: -30° C to +50° C
-Storage Temp: -40° C to +85° C
-Relative Humidity: 0% to 95% (non condensing)
