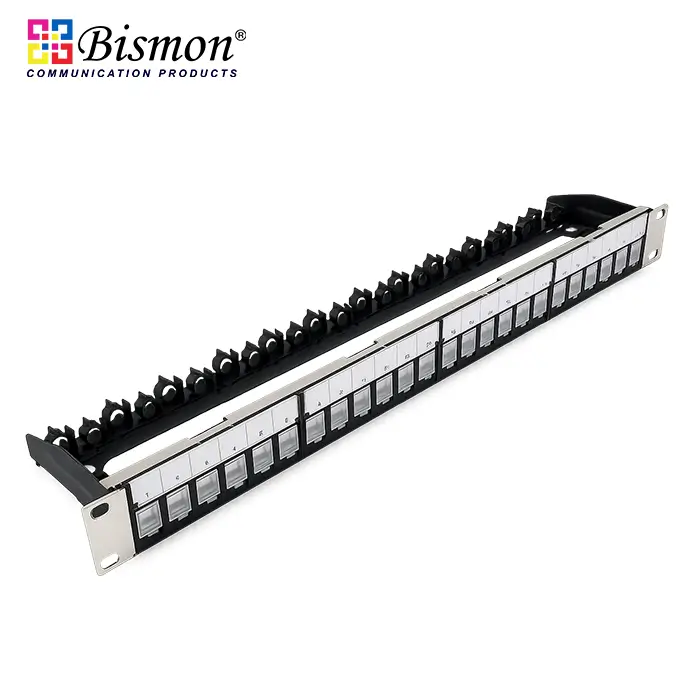

The B1-BMPT24FSTP1U is a 19-inch, 1U, 24-port patch panel that serves as the central termination point for structured cabling systems in standard equipment racks. It is

supplied as a blank (unloaded) panel with no keystone modules fitted at the factory, letting the installer select the exact category needed for each project - Cat5e, Cat6,

Cat6A or Cat7 - as well as television and telephone modules, all in one panel. The chassis is built from 1.5 mm cold-rolled steel with a black electrostatic powder

coating for rigidity and corrosion resistance, and is fully shielded with an integrated grounding cable that suppresses electromagnetic and radio frequency interference

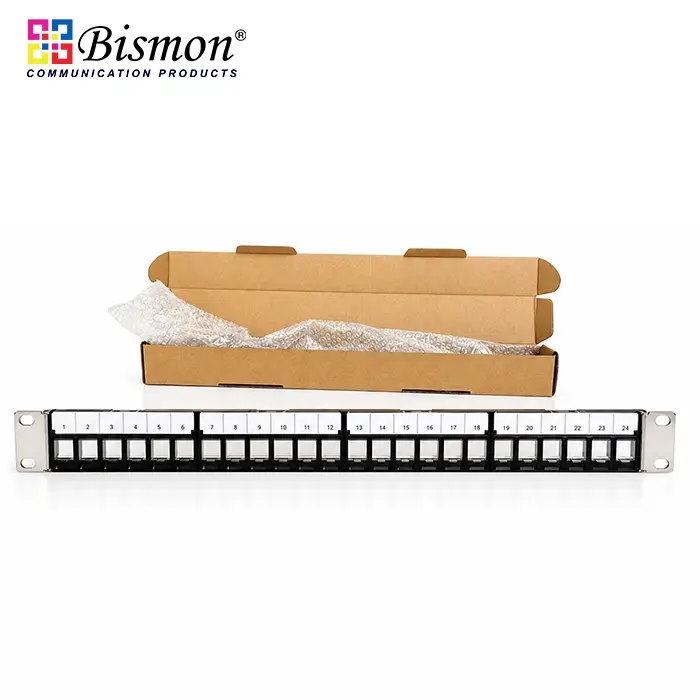

(EMI/RFI) in electrically noisy environments. The front face carries four plastic covers with label positions, while the rear provides a cable management bar.

• -Standard 19" 1U 24-Port Format: 19-inch, 1U form factor providing 24 connection points in a single rack unit, maximising rack density.
• -Blank / Unloaded Design: Supplied without modules so the installer can populate the panel with the exact keystone modules and category required.
• -Multi-Category Support: Accepts Cat5e, Cat6, Cat6A and Cat7 modules, including mixed categories within the same panel.
• -Shielded Construction with Grounding Cable: Full metal shielded construction with a grounding cable for connection to the rack earth bar, reducing EMI/RFI coupling.

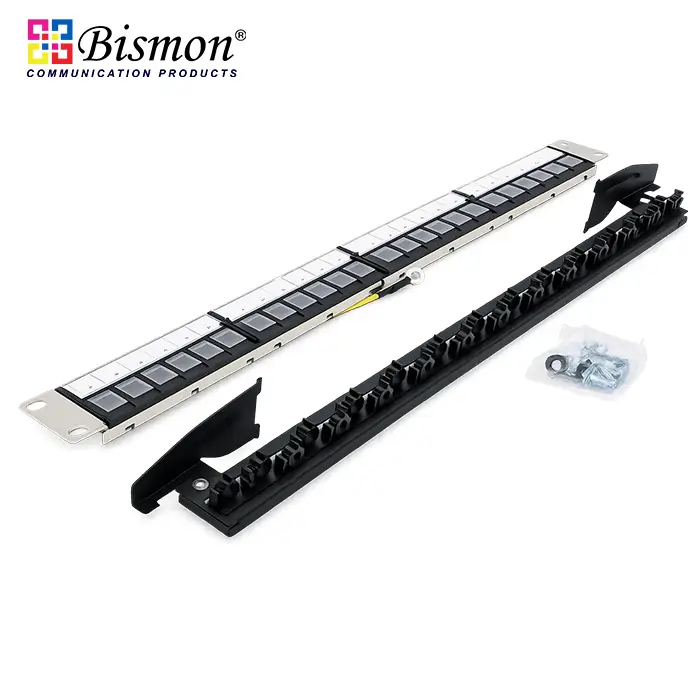

• -4 Removable Blocks of 6 Ports: Ports are grouped into four blocks of six, each removable from the front without dismounting the whole panel.

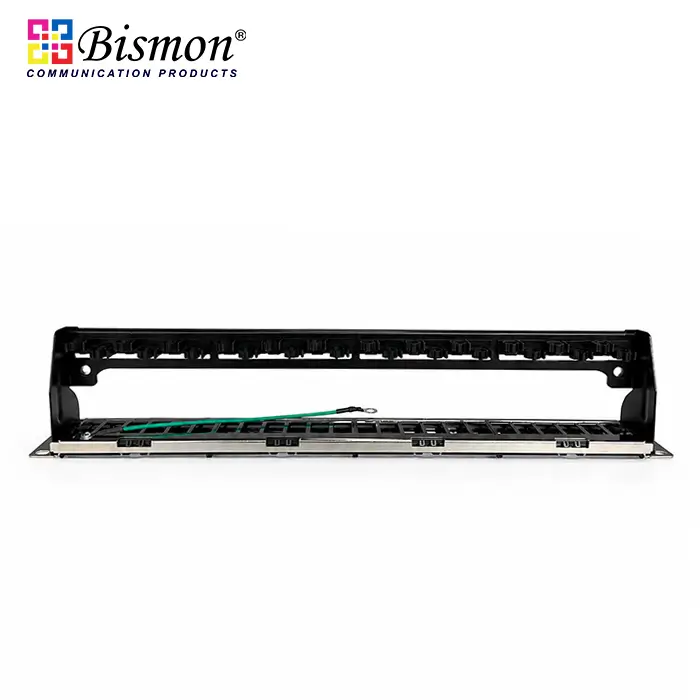

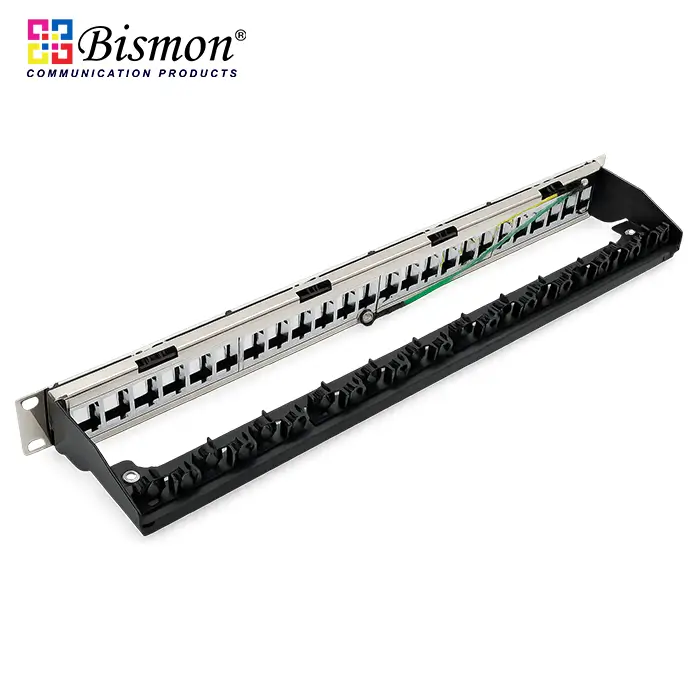

• -Integrated Cable Management: Rear cable management bar with cable tie anchor points supports cable weight and keeps terminations organised.
• -Port Labelling System: Dedicated label positions protected by four clear plastic covers for permanent port identification.
• -1.5 mm Steel Chassis: 1.5 mm cold-rolled steel body with electrostatic powder coating for rigidity and long-term corrosion resistance.
• -Multi-Service Capability: Compatible with network, television and telephone modules, allowing several services to share one panel.

• -Lower Capital Cost: Pay only for the module category actually needed at each port instead of a fixed factory configuration, reducing project cost.
• -Future-Proof Upgrade Path: Upgrading from Cat5e to Cat6 or Cat6A requires changing modules only — the panel and rack layout remain unchanged.
• -Fast Maintenance, Minimal Downtime: A faulty port can be replaced individually from the front of the rack, minimising system downtime.
• -Stable, High-Quality Transmission: Shielding and proper earthing preserve signal integrity and keep bit error rates low in high-interference environments.
• -Organised Cable Administration: The cable management bar and labelling system keep the rack tidy and make tracing connections quick and reliable.
• -Durable and Long-Lasting: Heavy-gauge steel and powder coating withstand demanding installations and extend service life.
• -Simple Installation: Mounts directly into any standard 19-inch rack, reducing installation time and on-site labour cost.

• -Structured cabling systems in commercial and office buildings
• -Server rooms, control rooms and small to medium data centres
• -Floor distribution and IDF cabinets
• -Industrial network installations requiring shielded cabling in high-EMI environments
• -IP CCTV and access control network infrastructure
• -Hotels, hospitals, educational campuses and residential buildings
• -Consolidated telephone and television distribution within a shared rack
