Name: 19" Cabinet Rack Outdoor 15U(80cm),for Stand EG steel Thick 1.5mm
Brand: BISMON
SKU: B1WM96OUT198T
Price: 36868.00 THB
Availability: InStock

19" Cabinet Rack Outdoor 15U(80cm),for Stand EG steel Thick 1.5mm

Part number : B1-WM96-OUT198T

Brand : BISMON

Price : 36,868.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

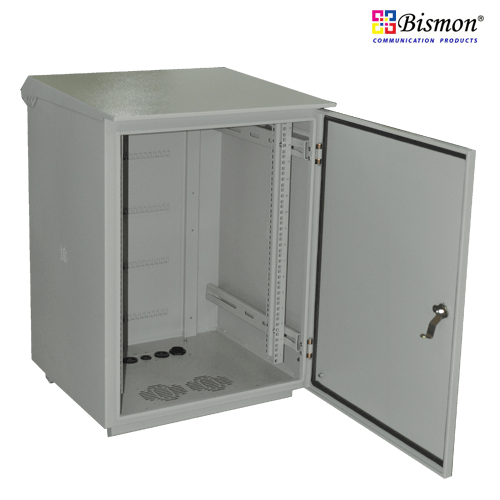

19" Wall Rack Outdoor Fiber optic 15U High, EG steel Thick 1.5mm for stand outdoor type, D:80CM, Use for Equipment active device 19" standard. The Cabinet is compliant with IP55 (Dust and water protection) or IP65 (Option) standard. One door lockable and dust, made from "CNC" Foam Gaskets" style high-quality grade for waterproof and dust

Brand	Bismon
Model	B1-WM96-OUT198T
Equipment Type	Wall rack outdoor
Size	810 mm x 600 mm x 800 mm (HighxWidthxDepth)
Standard	Compliant IP55, IP65
Color
Material	(EG)-Electro Galvanised Steel and Thickness 1.5mm
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment
Features	• 19 inch support for rack style
	• One door lockable and safe sealing and protection of equipment against water, water, humidity and dust, made from “ CNC Foam Gaskets” style, not rubber style
	• Provided 4mm thickness foam for protection water and rustproof for body closure
	• All screw or nut made of stainless steel
	• Size: 810 mm x 600 mm x (400, 500,600) mm (HighxWidthxDepth)
	• Can support rack mount 1U or 3U patch panel fiber optic max capacity: 15U
	• Can support cable entry 5 port and 2 cable grands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 4inch for air flow, 2 point (Max:4 pcs) (Top & Bottom Rack)
	• Complete set tools for hang on pole and support 4 hole for wall type
	• Material made from EG(Electro Galvanize) Sheet Steel Thick 1.5mm, High Quality Grade
	• The cabinet rack support ground stand Cement base outdoor type by screw side cover
	• Can support hinges provide 130 deg. door opening.
Option

- 19" Standard Rack - 15U High Cabinet Rack - Deep: 80 cm - Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened. - All screw or nut made of stainless steel - Hang on Electric Squre Pole in Thailand - Hang on Wall type - Made from color outdoor type epoxy polyester coating - Cable Grand lock cable EG/PG29 - Support FAN 2x4" 2 point TOP & Bottom rack - The front door is waterproof, humidity and dustproof sealing made from "CNC foam Gaskets", good adhesion to coated surfaces, UL 50. - Can support hinges provide 130 deg. door opening service - Material made from (EG) Electro Galvanized Steel thick 1.5mm - Dimension: 810mmx600x800mm) HxWxD
