Name: 1U Rack 24 Port 10/100/1000M POE + 4SFP 1/10GB Industrial Switch Managed(at)
Brand: BISMON
SKU: B1IPS36028PFMat
Price: 49268.00 THB
Availability: InStock

1U Rack 24 Port 10/100/1000M POE + 4SFP 1/10GB Industrial Switch Managed(at)

▸ คำอธิบายภาษาไทย
สวิตช์อุตสาหกรรมแบบจัดการ POE ขนาด 1U ที่มี 24 พอร์ต Gigabit Ethernet พร้อมการรองรับ POE มาตรฐาน IEEE 802.3at ที่ส่งกำลังไฟฟ้าได้ถึง 30W ต่อพอร์ต และมี 4 พอร์ต SFP+ ความเร็ว 1/10GB สำหรับการเชื่อมต่อเส้นใยแก้วนำแสง ช่วยให้คุณสามารถจ่ายไฟและส่งข้อมูลไปยังอุปกรณ์เทคโนโลยีต่างๆ เช่น Access Point ไร้สาย กล้องวงจรปิด โทรศัพท์ IP และเซนเซอร์อุตสาหกรรมผ่านสายเน็ต

Part number : B1-IPS36028PFM-at

Brand : BISMON

Price : 49,268.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 440*378*44.5mm

Warranty : 3 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

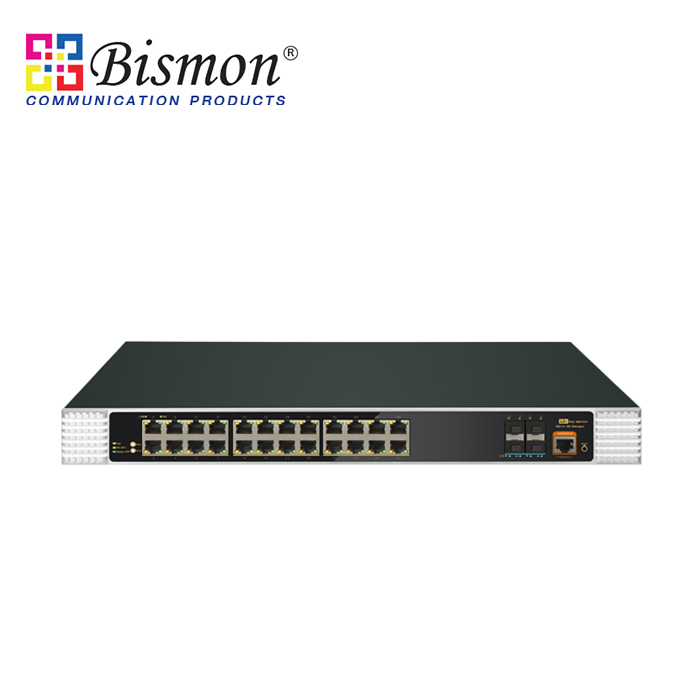

The B1-IPS36028PFM-at is a 10G uplink managed industrial PoE switch independently developed by BISMON. It has 24*10/100/1000Base-T adaptive RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-24 can support IEEE 802.3at PoE standard and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through a network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network.

The B1-IPS36028PFM has Layer 2+ network management function to support IPV4/IPV6 management, full line-speed forwarding of static routes, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and ITU-T G.8032 (<20ms) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important continuous communication of applications. According to application needs, PoE power supply management, port flow control, VLAN division, STP, RSTP, and other application configurations can be performed through Web, CLI, and SNMP network management methods.

FEATURE

Gigabit line speed access, uplink 1/10G SFP+ fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and uplink 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

? The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.

- 24*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.

Security

- Port isolation and storm control.

- IP+MAC+port+VLAN quadruple flexible combination binding function.

- IEEE802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.

Strong business processing ability

- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.

- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- Low power consumption, with fan, galvanized steel metal housing, and excellent heat dissipation to ensure stable operation of the switch.

Easy O&M management

- CPU monitoring, memory monitoring, Ping detection, and cable detection.

- HTTPS, SSLV3, SSH V1/V2, and other encryption methods make management more secure.

- RMON, system logs, and port traffic statistics facilitate network optimization and transformation.

- LLDP facilitates the network management system to query and determine the communication status of the link.

- Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.

DIMENSION

28-port Gigabit managed industrial PoE switch, industrial PoE switch, PoE switch

TECHNICAL SPECIFICATION

Model	B1-IPS36028PFM	B1-IPS36028PFM-at
Interface Characteristics
Fixed Port	2AC100-240V input ports 1Console RS232 port (115200, N, 8,1) 41/10G uplink SFP+ fiber ports (Data) 2410/100/1000Base-T PoE ports (Data/Power) 2*DC48-57V input ports (support reverse polarity protection)
Ethernet Port	Port 1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0~550m (1.25G), 850nm/ 0~300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	Layer 2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full wire speed)
Switching Capacity	176Gbps (non-blocking)
Forwarding Rate@64byte	95.23Mpps
CPU	500MHz
DRAM	2G
FLASH	128M
MAC	32K
Buffer Memory	32M
Jumbo Frame	9.6K
LED Indicator	Power: PWR (Green), System: SYS (Green), PoE: PoE (Green), Fiber port: L/A (Green), Network: Link (Yellow)
Reset Switch	Yes
PoE& Power Suppy
PoE Port	Port 1-24
PoE Management	PoE power supply total power limit configuration Power delay start, PoE work and time scheduling Port PoE working status display, Port PoE output priority configuration Port PoE output power distribution, PoE on/off, af/at power distribution
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR/ Input Voltage	400W/ (AC100-240V)	600W/ (AC100-240V)
Power Consumption	Standby<25W, Full Load<400W	Standby<30W, Full Load<600W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 5.0A	Built-in power supply, AC100~240V 50-60Hz, 6.6A
Power Input Port	Alarm switch port, 2AC power input ports, 2DC48-57V input ports Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH non condensing
Dimension (LWH)	44037844.5mm
Net /Gross Weight	5.4kg/ 6.2kg	6.2kg/ 7.0kg
Installation	Desktop, 1U/19” cabinet
Certification & Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	Port green Ethernet Energy-saving setting Broadcast storm control based on port speed Port temperature protection setting, IEEE 802.3x flow control (Full duplex) The speed limit of the message flow in the access port, mini particle size is 64Kbps.
L3 Feature	ARP protocol max 1024 entries Static routing/ default routing max 128 entries L2+ network management, IPV4/IPV6 dual stack management L3 routing and forwarding, and communication between different network segments and different VLAN
VLAN	Access, Trunk, and Hybrid port configurations Port-based VLAN (4K), IEEE802.1q, QinQ configuration Voice VLAN, Protocol-based VLAN, MAC address-based VLAN
Port Aggregation	LACP, Static aggregation, Max 14 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Ring Network Protocol	G.8032 (ERPS), Recovery time less than 20ms. 255 Ring at most, Max 1024 devices per ring.
Multicast	MLD Snooping, Multicast VLAN, IGMP Snooping v1/v2/v3, Max 1024 multicast groups, Fast log out
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection Anti-DoS attack, AAA & RADIUS & TACACS+ certification IP-MAC-VLAN-Port binding, ARP inspection, MAC learning limit
DHCP	DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
Management	NTP clock, One click restore, SNMP V1/V2/V3 System work log, Web network management (https) Ping detection, Link Layer Discovery Protocol (LLDP) ONV-NMS platform cluster management (LLDP+SNMP) Cable status check, Viewing CPU Instant Utilization Status</
