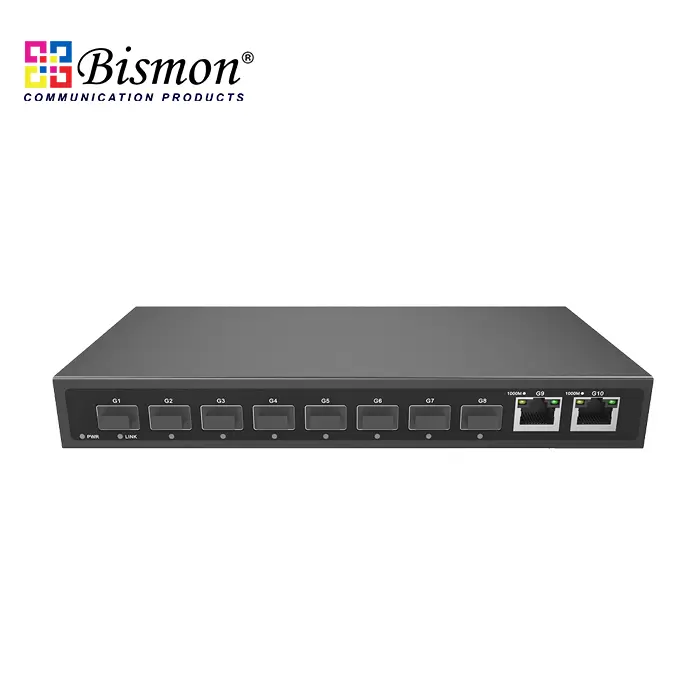

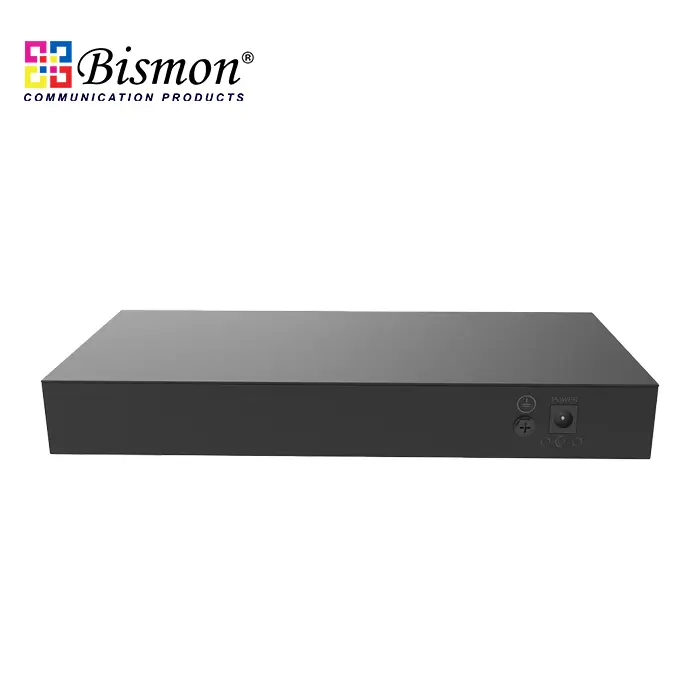

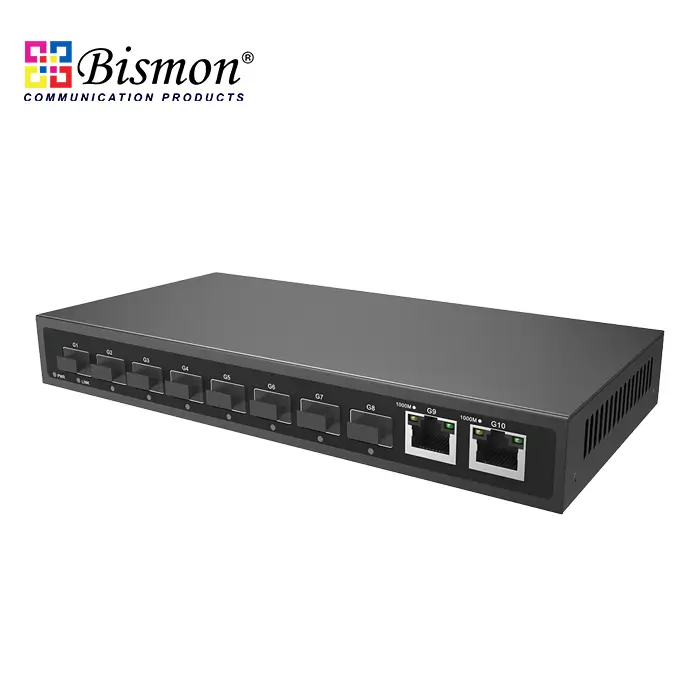

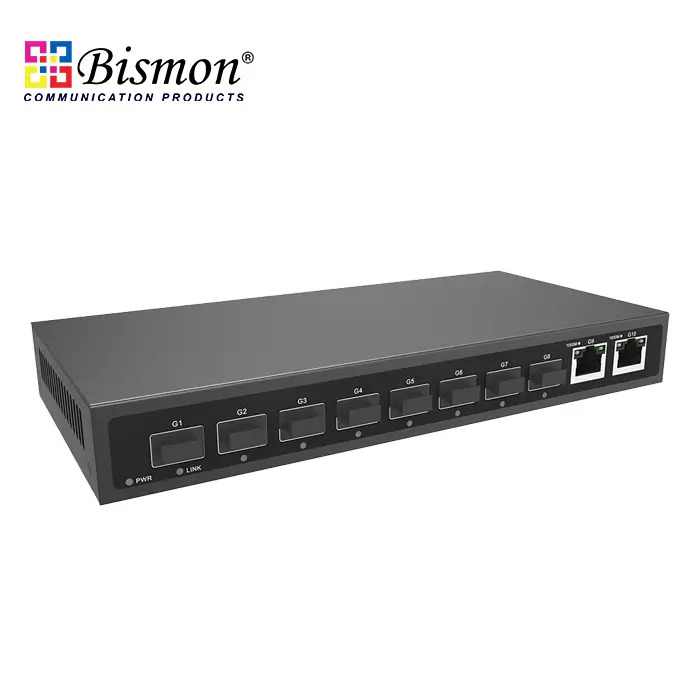

Name: 2*10/100/1000M RJ45 ports and 8*1000M uplink SFP ports Unmanaged Ethernet switch
Brand: BISMON
SKU: B1H3008FO
Price: 7136.00 THB
Availability: InStock

210/100/1000M RJ45 ports and 81000M uplink SFP ports Unmanaged Ethernet switch

Part number : B1-H3008FO

Brand : BISMON

Price : 7,136.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 Pcs.

Size : 221*112*29mm

Warranty : 1 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-H3008FO is a gigabit Ethernet fiber switch independently developed by BISMON. It has 2*10/100/1000M RJ45 ports and 8*1000M SFP fiber ports. Each port can support wire-speed forwarding. It is not affected by the transmission medium and realizes a convenient connection and expansion of the network. 2M large-capacity packet forwarding buffer, ensuring timely transmission of large files and stable video streaming, stable 7*24 hours without dropping, effectively solving problems such as video stuttering and picture loss in high-definition monitoring environments. It is suitable for network environments that require high-speed forwarding, such as hotels, banks, campuses, scenic spots, supermarkets, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit multi-fiber port access, uplink RJ45 port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Plug and play, no setup, simple and convenient to use.

- The user-friendly panel can show the device status through the LED indicator of PWR and Link.

- Self-developed power supply, high redundancy design, providing a long-term and stable power output.

- Low power consumption, no fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION

10-port gigabit Ethernet switch, Ethernet switch, gigabit Ethernet switch

TECHNICAL SPECIFICATION

Model	B1-H3008FO
Interface Characteristics
Fixed Port	*81000Base-X SFP fiber ports (Data) 210/100/1000Base-T uplink RJ45 ports (Data)*
Ethernet Port	Port 9-10 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode /multi-mode, single fiber /dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	20Gbps (non-blocking)
Forwarding Rate @64byte	14.88Mpps
MAC	8K
Buffer Memory	2M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), Data: Link (Yellow), Rate: 100/1000M (Green)
Power Supply
Total PWR / Input Voltage	10W/DC12V
Power Consumption	Standby<6W, Full load<10W
Power Supply	External power adapter, AC100 -240V 50-60Hz, 0.35A
Physical Parameter
Operation Temp/ Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH Non condensing
*Dimension (LWH)*	*22111229mm*
Net /Gross Weight	0.65kg / 0.95kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1,FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
