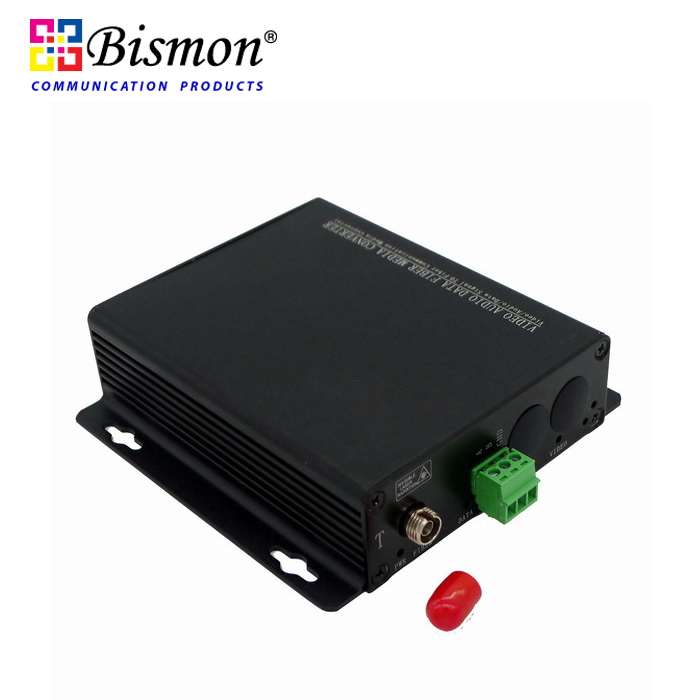

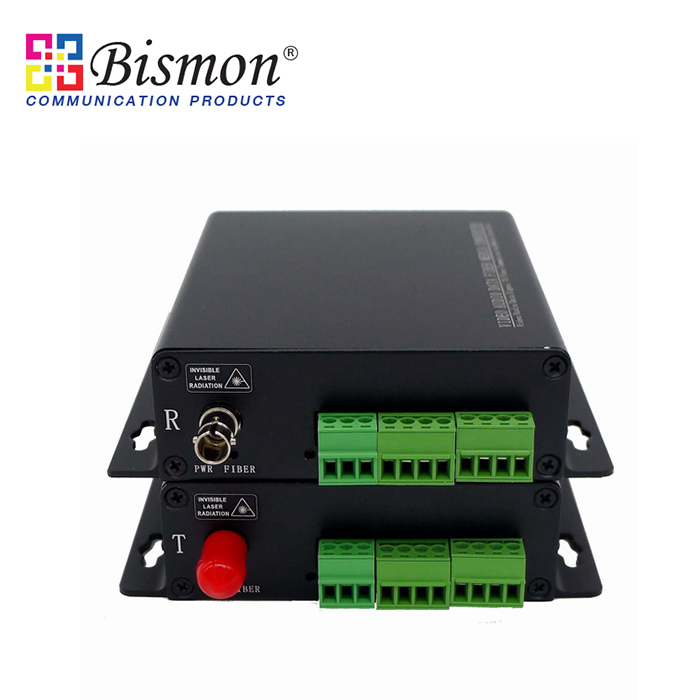

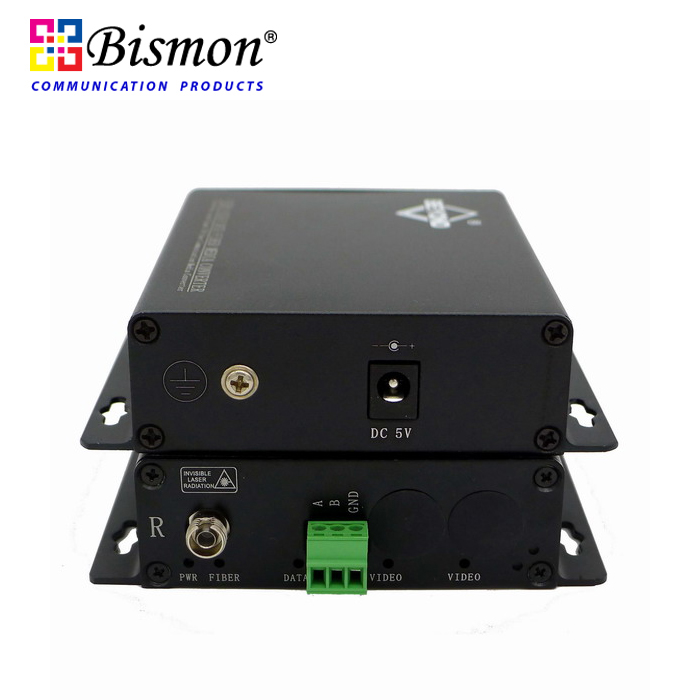

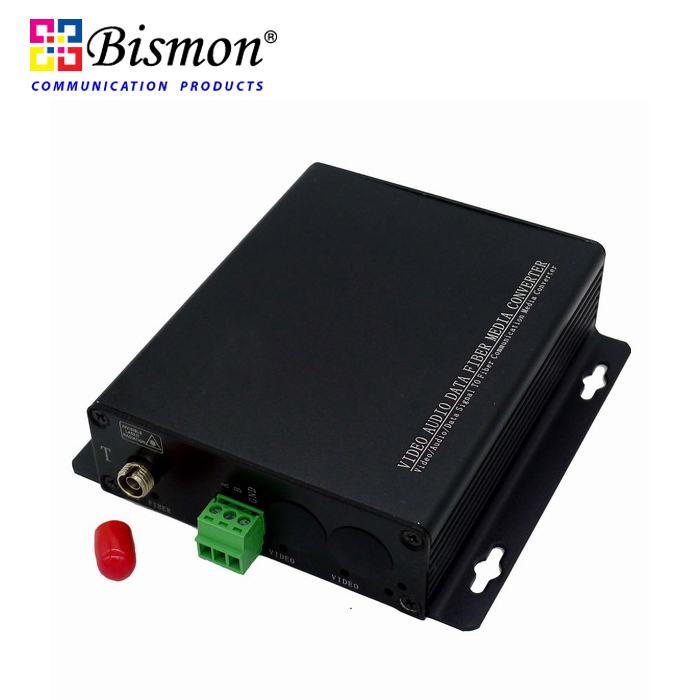

2-CH Audio unbalanced Converter Single fiber 20KM(SM), FC Connector


Part number : B1-2AUDUN-FC

Brand : BISMON

Price : 5,600.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

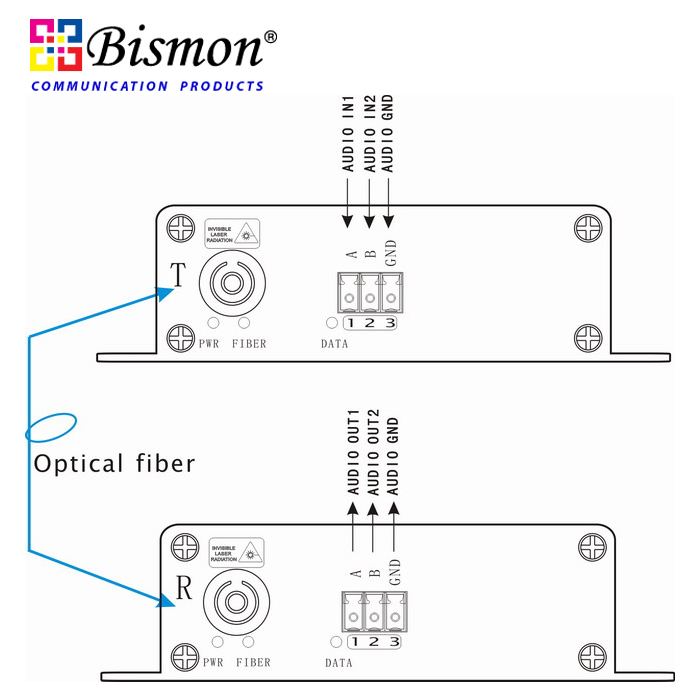

2ch Audio to Fiber Optic support 2 Channel   24-bit digitally encoded broadcast-quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Optical
Optical connector FC
Connector Standard terminal lead
Audio Unbalanced
Number of Channels 2 Ch
Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm /   -5~0dBm
Optic fiber 50/125u multimode, 62.5/125u multimode, 9/125u   single mode
Rx sensitivity -30dBm
Optical connector FC, ST, SC (optional)
Distance 0~2KM (MM)   /   0~20KM ,60KM , 100KM (SM)
Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz?29kHz @±3dB
SNR > 70dB
Connector Standard terminal lead
Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 1.5kg
Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

Opitcal? Wavelength 1310nm&1470nm~1610nm Output Power -14~ -8dBm / -5~0dBm Optic fiber 50/125u multimode?62.5/125u multimode?9/125u single mode Rx sensitivity -30dBm Optical connector FC?ST?SC (optional) Distance 0~2KM (MM) / 0~100KM (SM) Contact Closure: Connector Standard terminal lead Signal input alarm, Binary input, support TTL?RS-232/422/485 or passive dry Contact Closure Signal output Arbitrary alarm, Binary output, support TTL?RS-232/422/485 or relay output Electrical & Mechanical Input Power Requirements: DC 5V@2A Power Adapter: AC 90V~240V Power Consumption: < 3W Stand-Alone Dimensions: 104mm ? 104mm ? 28mm Shipping Weight: (include Transmitter & Receiver ) 0.75kg Environmental Operating Temperature: -20?C ~ +75?C Storage Temperature: -40?C ~ +85?C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours
