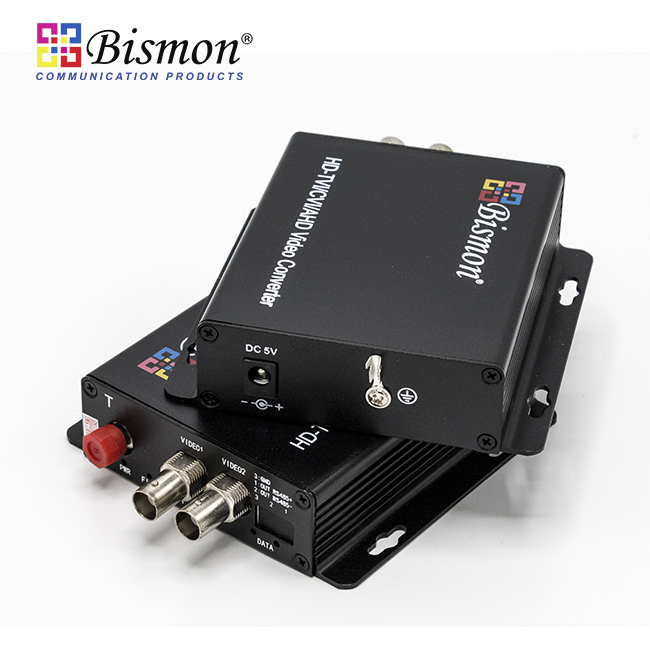

2 Channel HD-AHD/CVI/TVI (1MP/720P) MM/SM Fiber 20km(FC)

2 Channel HD-AHD/CVI/TVI (1MP/720P) MM/SM Fiber 20km(FC)

2 Channel HD-AHD/CVI/TVI (1MP/720P) MM/SM Fiber 20km(FC)

Part number : B1-2AHD101-SM

Brand : BISMON

Price : 4,776.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Warranty : 1 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

- Supports a variety of standard switch 720p/960p | 25/30 frame

- Lossless, HD, real-time transmission

- Automatic identify the input video formats

- Support ultra-distance coaxial transmission

- Support single fiber simultaneously transmit multiple video and composite signals

- Wide temperature dust-free prospective industrial design, the device supports outdoor high and low temperature harsh environments

- Plug and play, easy installation and operation

Specification

- 2 Channel Compatible to AHD/CVI/TVI Video converter HD-analog

- Support Standard 720P/960P(1MP/1.3MP)

- FC-Connector Single Fiber (1 Core)

- Support Single-mode 20km and Multi-mode 500M Fiber optic cable

- Support wavelength: 1310/1550nm

- Video interface : BNC

- Input and output impedance: 75 Ohm

- Video Bandwidth: 45 MHz

- Baud Rate: 1200-9600bps

- Operating Temperature: -40 C to 85 C

Download Datasheet
