OVERVIEW

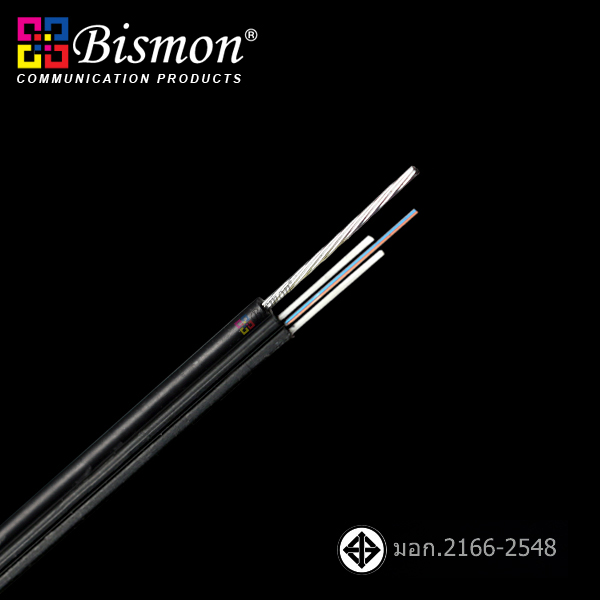

BISMON produces the FTTH Flat drop fiber optic cable self-support, which is able to fiber into homes. There are two different types of optical fiber cable, Single-mode (G.652.D, G.655, G.657A1-A2) and Multi-mode 50/125um (OM2,OM3,OM4). The cable is designed for indoor and outdoor use, while utilizing the 2xFRP to support a tensile strength member. The outer sheath material is made from LSZH (Low smoke zero halogen), which is flexible and safe in case of fire. The strand of the cable can support, has the diameter of 1.0mm. The cable has been approved by the Thai Industrial Standards Institute under TISI 2166-2548

Applications

 • Adopted for indoor and outdoor areial self-supporting installation

 • Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications

 • Ethernet LAN Network, CCTV, Network Camera, PLC

 • Mechanically, rugged, cable design suitable for : Aerial

Product Construction

Fiber :

            • 1-2 Core fibers (Single-mode)

            • 250 um optical fiber

            • Color-coding : Blue/Orange(2), Blue(1)

Strength Member :

            • 2xFRP

Outer Jacket :

            • Black UV-and LSZH material

            • Made to order cable marking (Thai word)

Messenger Wire :

            • Steel strand wire 1.2mm (7x0.4mm)

Max Tensile :

            • Max tensile load: (short term) 600N (IEC 60794-1-2-E1)

TISI Certificate :

            • TISI 2166-2548
