OVERVIEW

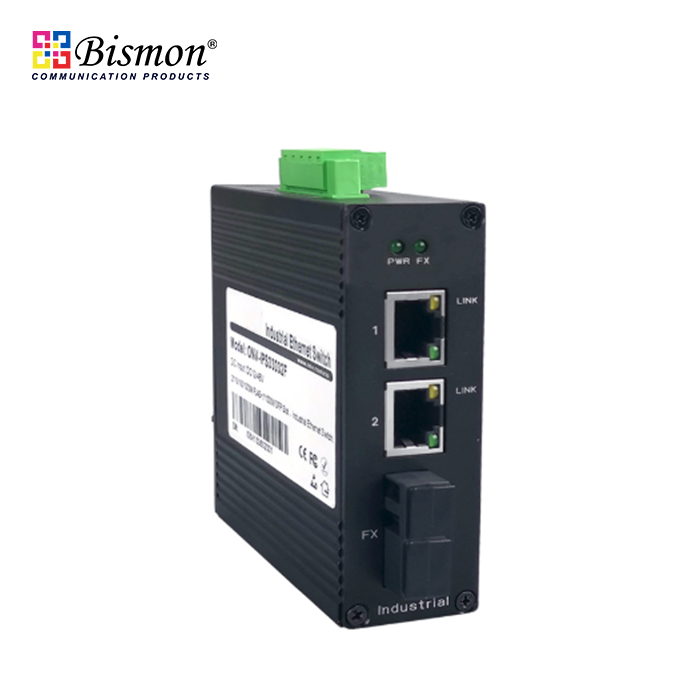

The B1-IPS33032FS-M is a gigabit industrial Ethernet fiber switch independently developed by BISMON. It has 2*10/100/1000Base-T RJ45 ports and 1*1000Base-X SC fiber port Multi-mode Dual fiber. Each port can support full line-rate forwarding.
The B1-IPS33032FS-M has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit wire-speed access, uplink SC fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support Gigabit Ethernet port and Gigabit SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR and Link.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33032FS-M
|
|
Interface Characteristics
|
|
Fixed Port
|
1*DC5521 power socket
1*1000Base-X SC fiber port (Data) Multi-mode
2*10/100/1000Base-T RJ45 ports (Data)
2 sets V+, V- redundant DC power port (5P phoenix terminal)
|
|
Ethernet Port
|
Port 1-2 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Default Gigabit single-mode dual fiber SC optical module (optional single-mode single fiber/ multi-mode dual fiber optical module)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
10Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
4.46Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link, Link/Act (Yellow)
|
|
Power Supply
|
|
Power Consumption
|
Standby<4W, Full load<6W
|
|
Operating Voltage
|
DC12-48V, 5P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP / Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
92*88*32mm
|
|
Net /Gross Weight
|
0.3kg/ 0.4kg
|
|
Installation
|

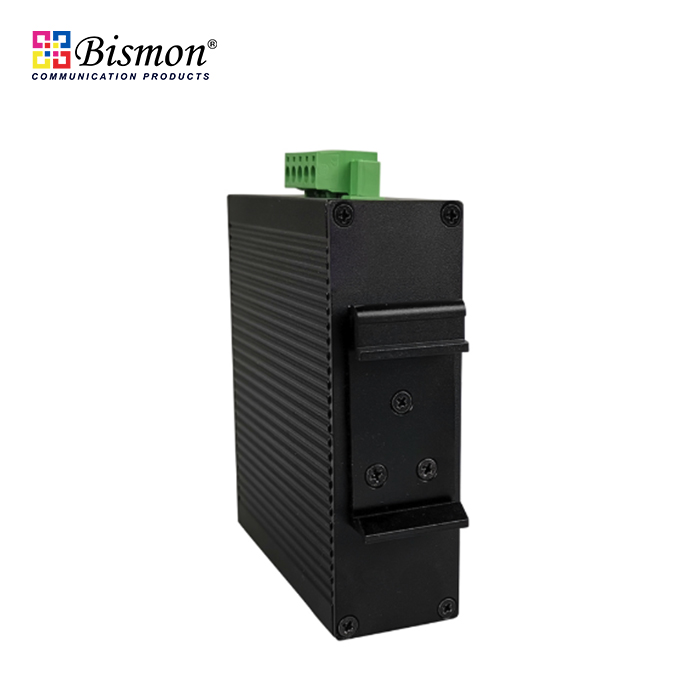

Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP40
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
