OVERVIEW

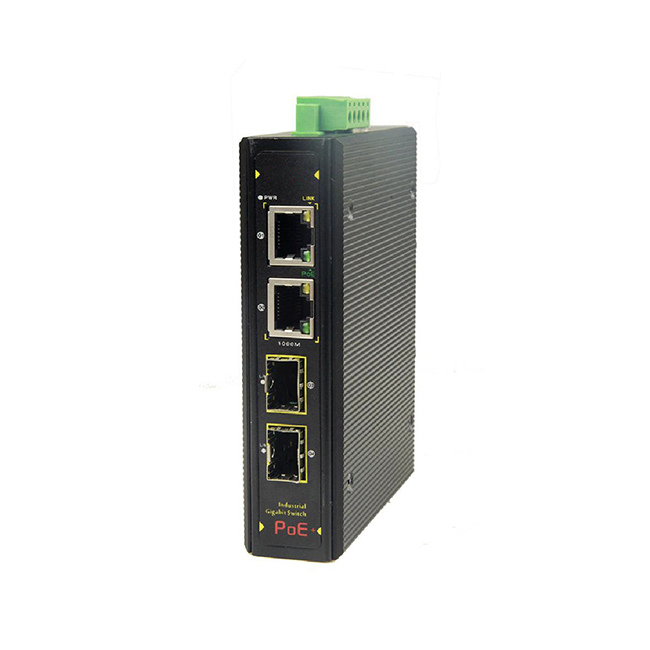

The B1-IPS33042PF is a Gigabit industrial PoE fiber switch independently developed by BISMON. It has 2*10/100/1000M adaptive RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-2 can support IEEE 802.3 af/at PoE standard and the single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify the power-receiving devices that meet the standards and power them through the network cable. It can power wireless AP, IP cameras, industrial sensors, and other PoE terminal devices through the network cable to meet the network environment that requires a high-density PoE power supply. It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy to build an economical, efficient, stable, and reliable communication network. Unmanaged mode, plug and play, no configuration, simple and convenient to use.
FEATURE
Gigabit access
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 2*10/100/1000Base-T RJ45 ports can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
- Priority system for PoE port will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
- CCC, CE, FCC, RoHS.

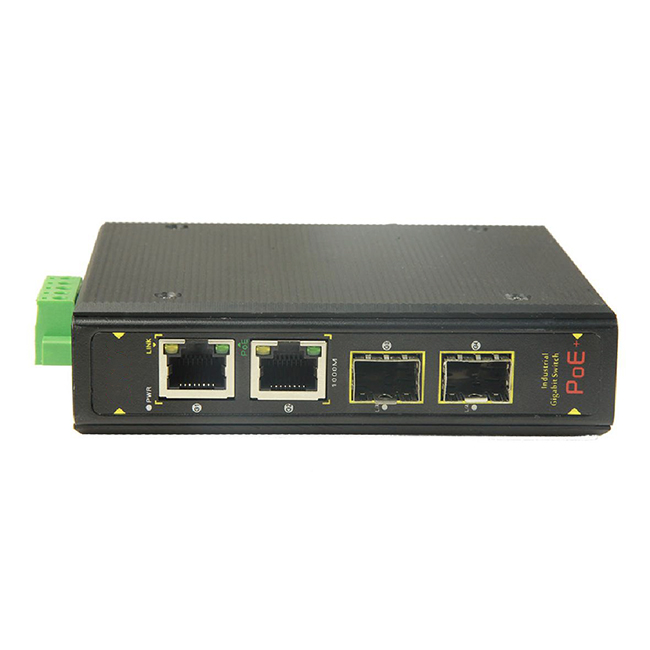

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33042PF
|
|
Interface Characteristics
|
|
Interface
|
2*1000Base-X uplink SFP fiber ports (Data)
2*10/100/1000Base-T PoE ports (Data/Power)
2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
|
|
Ethernet Port
|
Port 1-2 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm /0-40km,1550nm /0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
12Gbps (non-blocking)
|
|
Forwarding Rate@64byte
|
5.95Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR(Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green)
|
|
PoE& Power Supply
|
|
PoE Port
|
Port 1-2
|
|
Power Supply Pin
|
1/2(+) 3/6 (-)
|
|
Max Power Per Port
|
30W, IEEE 802.3 af/at
|
|
Power Consumption
|
Standby<4W, Full load af<30W, at<60W
|
|
Input Voltage/ Interface
|
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 48V/36W or 48V/60W industrial power supply
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+80°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension
|
119*100*30mm
|
|
Net /Gross Weight
|
0.4kg/ 0.5kg
|
|
Installation
|

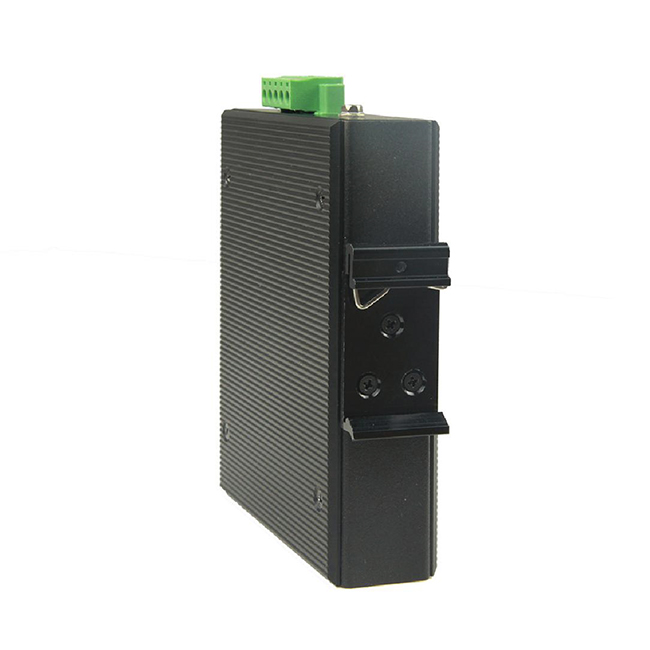

Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
Protection level: IP40, Lightning protection: 6KV 8/20us
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
|
|
Certification
|
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
