24*10/100/1000 RJ45 and 4*1/10G uplink SFP+ slot L2 managed

Name: 24*10/100/1000 RJ45 and 4*1/10G uplink SFP+ slot L2 managed
Brand: BISMON
SKU: B1IPS36028FM
Price: 40800.00 THB
Availability: InStock

2410/100/1000 RJ45 and 41/10G uplink SFP+ slot L2 managed

▸ คำอธิบายภาษาไทย
คำอธิบายสินค้า สวิตช์อีเธอร์เน็ตแบบจัดการ (Managed Switch) รุ่น B1-IPS36028FM ที่ออกแบบสำหรับงานอุตสาหกรรมหนักและสภาพแวดล้อมที่เข้มงวด มีพอร์ต RJ45 จำนวน 24 พอร์ต ที่รองรับการส่งข้อมูลด้วยความเร็ว 10/100/1000 Mbps พร้อมพอร์ต SFP+ ไฟเบอร์อัพลิงก์ 4 พอร์ตที่รองรับความเร็ว 1/10G สำหรับการเชื่อมต่อระยะไกลและแบนด์วิดท์สูง สินค้านี้มาพร้อมฟังก์ชันการจัดการระดับ L2

Part number : B1-IPS36028FM

Brand : BISMON

Price : 40,800.00 Baht / pcs

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

Minimum order quantity : 1 Pcs.

Size : 440*298*44mm

Warranty : 3 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

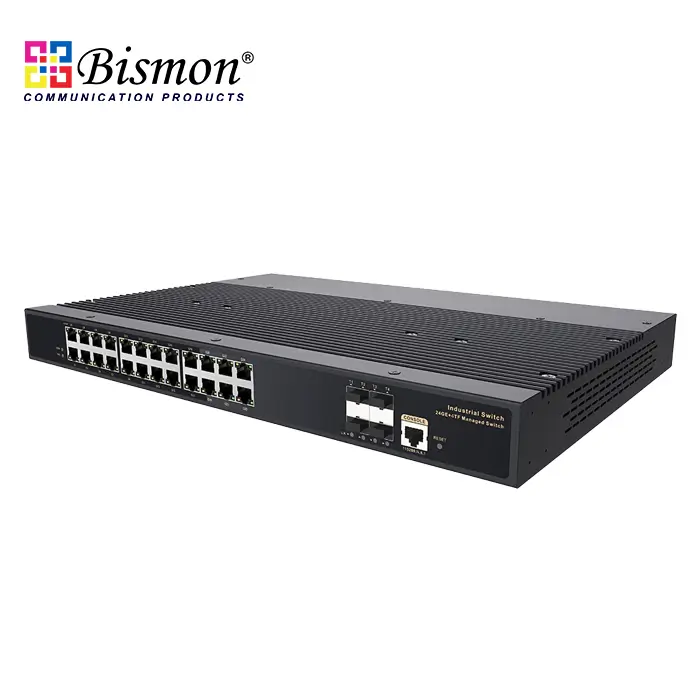

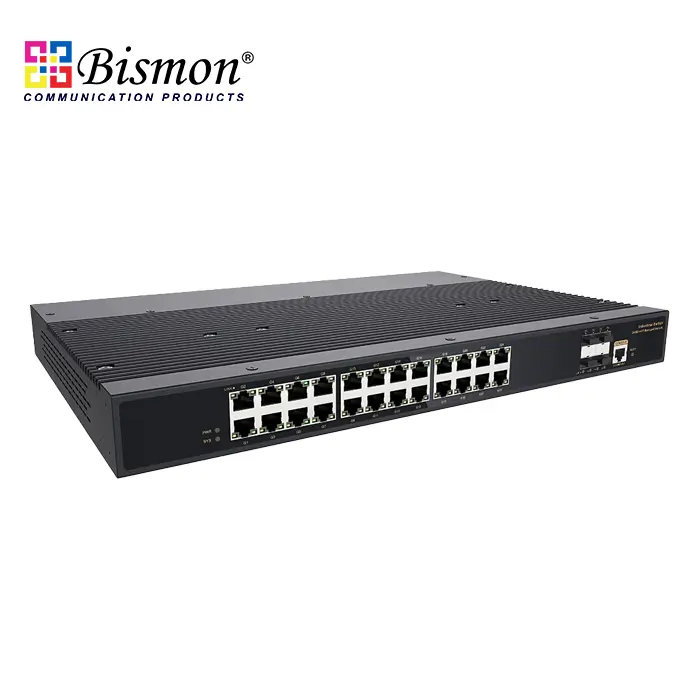

The B1-IPS36028FM series is a 10G uplink managed industrial Ethernet fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.

The B1-IPS36028FM has L2+ full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It meets the needs of various industrial Ethernet application environments and is suitable for industrial, intelligent transportation, rail transit, power industry, mining, petroleum, marine, metallurgical and green energy construction to form a cost-effective, stable and reliable communication network.

L2+ managed industrial Ethernet aggregation/ core switch with 24* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports. Support 1U/19 inch rack installation.

FEATURE

Gigabit access, 10G uplink

• All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

• IGMP V1/V2 and IGMP Snooping.

• ERPS/STP/RSTP/MSTP.

• Static and dynamic aggregation.

Security

• 802.1X authentication.

• Port isolation,Storm control.

• IP-MAC-VLAN-Port binding.

Stable and reliable

• Low power consumption, No fan, aluminum shell.

• Self-developed power supply, high redundancy design, providing a long term and stable power output.

• CCC,CE, FCC, RoHS.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link , L/A, SPEED.

Easy operation and maintenance management

• HTTPS, SSLV3, and SSHV1/V2.

• RMON, system log, LLDP, and port traffic statistics.

• CPU monitoring, memory monitoring, Ping test, and cable diagnose.

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-IPS36028FM
Interface Characteristics
Fixed Port	*1Console port (115200,N,8,1) 2AC100-240V power input ports* Power off alarm switch port (FAULT) *41/10G uplink SFP+ fiber ports (Data) 2410/100/1000Base-T RJ45 ports (Data)* *2DC12-48V power input ports ( support anti-reverse protection)**
Ethernet Port	Port 1-24 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	176Gbps (non-blocking)
Forwarding Rate @64byte	95.23Mpps
CPU(Hz)	500M
DRAM	2G
FLASH	128M
MAC	32K
Buffer Memory	32M
Jumbo Frame	9.6K
LED Indicator	Power: PWR(Yellow), System: SYS (Yellow), Network:Link (Yellow), Fiber port: L/A (Green)
Reset Switch	Yes
Power Supply
Total PWR/ Input Voltage	60W (AC100-240V)
Power Consumption	Standby<25W, Full Load<45W
Power Supply	Built-in power supply, AC 100~240V 50-60Hz, 0.65A
Power Input Port	*Alarm switch port, 2AC power input ports, 2DC12-48V input ports* Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity	-40°C~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40°C~+85°C, 5%~95% RH Non condensing
*Dimension (LWH)*	*44029844mm*
Net /Gross Weight	3.9kg / 4.7kg
Installation	Desktop, 1U/19” cabinet
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3(RS):10V/m (80~1000MHz) FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) IEC61000-4-9(Pulsed magnet field): 1000A/m IEC61000-4-10(Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18(Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16(Common-mode transmission): 30V, 300V, 1s IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6(Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8(Power frequency magnetic field):100A/m,1000A/m,1-3s IEC61000-4-5(Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	Port temperature protection setting No connection port automatic sleep IEEE 802.3x flow control (Full duplex) Port green Ethernet Energy-saving setting Broadcast storm control based on port speed SFP+ optical port DDMI real-time digital diagnosis Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 64Kbps
L3 Feature	ARP protocol, max 1024 entries Static routing/default routing, max 128 entries L2+ network management function, IPV4/IPV6 dual-stack management L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN	VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid, GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Industrial Ring Network Protocol	G.8032 (ERPS), Recovery time less than 20ms, 255 Ring at most, Max 254 devices per ring.
Multicast	MLD Snooping, Multicast VLAN, Fast log out, IGMP Snooping v1/v2/v3, Max 1024 multicast groups
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based rate limiting, Flow-based redirection Queue scheduling algorithm (SP, WRR, SP+WRR) *Flow-based packet filtering, 8Output queues of each port 802.1p/DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark**
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	IP source address protection ARP intrusion detection function ARP message rate limiting function Port broadcast message suppression AAA&RADIUS&TACACS+ certification SSL ensures data transmission security Anti-DoS attack, MAC address black hole Port isolation, Host data backup mechanism Limit the number of MAC addresses learned Quadruple binding function of IP+MAC+VLAN+port User hierarchical management and password protection SSH 2.0 provides a secure encrypted channel for user login IEEE802.1X authentication/ centralized MAC address authentication
DHCP	DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping
Management	System work log, Dual system backup NTP clock, CPU real-time utilization status check One-click restore, Link layer discovery protocol LLDP FTP, TFTP, Xmodem, SFTP file upload and download management SNMP V1/V2/V3, Ping detection, Web network management (https) Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration Cable length status detection, Mobile APP operation and maintenance ONV-NMS Network management platform cluster management (PC+cloud)
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
