24-port 10/100/1000Base-T+4SFP 1/10GB L3 managed industrial switch PoE(at)

Name: 24-port 10/100/1000Base-T+4SFP 1/10GB L3 managed industrial switch PoE(at)
Brand: BISMON
SKU: B1IPS58028PFMat
Price: 52668.00 THB
Availability: InStock

24-port 10/100/1000Base-T+4SFP 1/10GB L3 managed industrial switch PoE(at)

▸ คำอธิบายภาษาไทย
สวิตช์อุตสาหกรรมที่มี 24 พอร์ต Gigabit Ethernet พร้อม 4 พอร์ต SFP+ เพื่อการเชื่อมต่อเส้นใยแสงความเร็วสูง โดยมีความสามารถ PoE(at) ในการจ่ายไฟผ่านสายเน็ตเวิร์ก สูงสุด 600W รวม และแต่ละพอร์ตสามารถจ่ายไฟได้ 30W เพื่อให้อุปกรณ์ปลายทาง เช่น Access Point ไร้สาย กล้อง IP VoIP และเซนเซอร์อุตสาหกรรม สามารถทำงานได้เต็มประสิทธิภาพ สวิตช์นี้เป็นอุปกรณ์ Layer 3 Managed ที่พัฒนาโด

Part number : B1-IPS58028PFM-at

Brand : BISMON

Price : 52,668.00 Baht / pcs

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 440*378*44.5mm

Warranty : 3 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

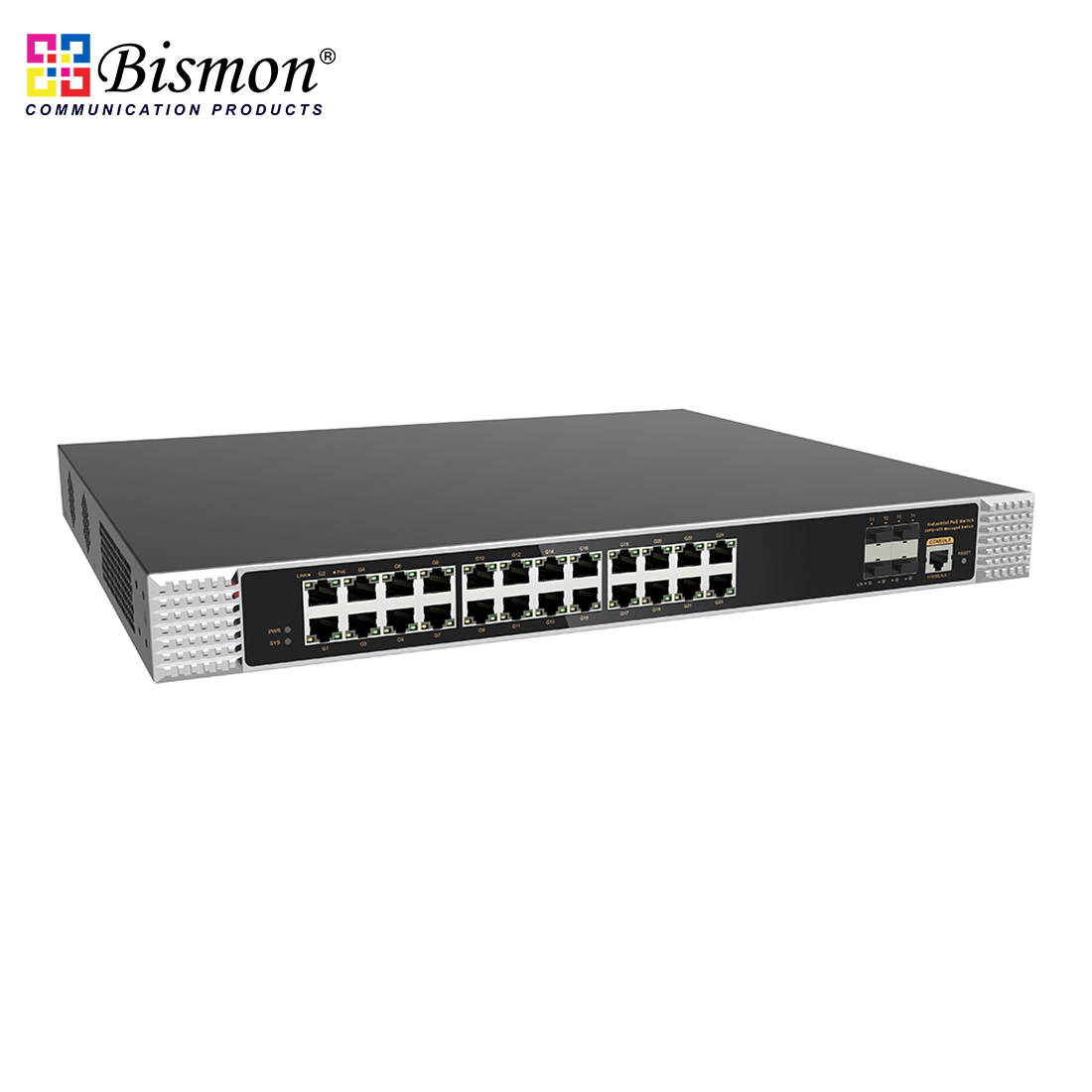

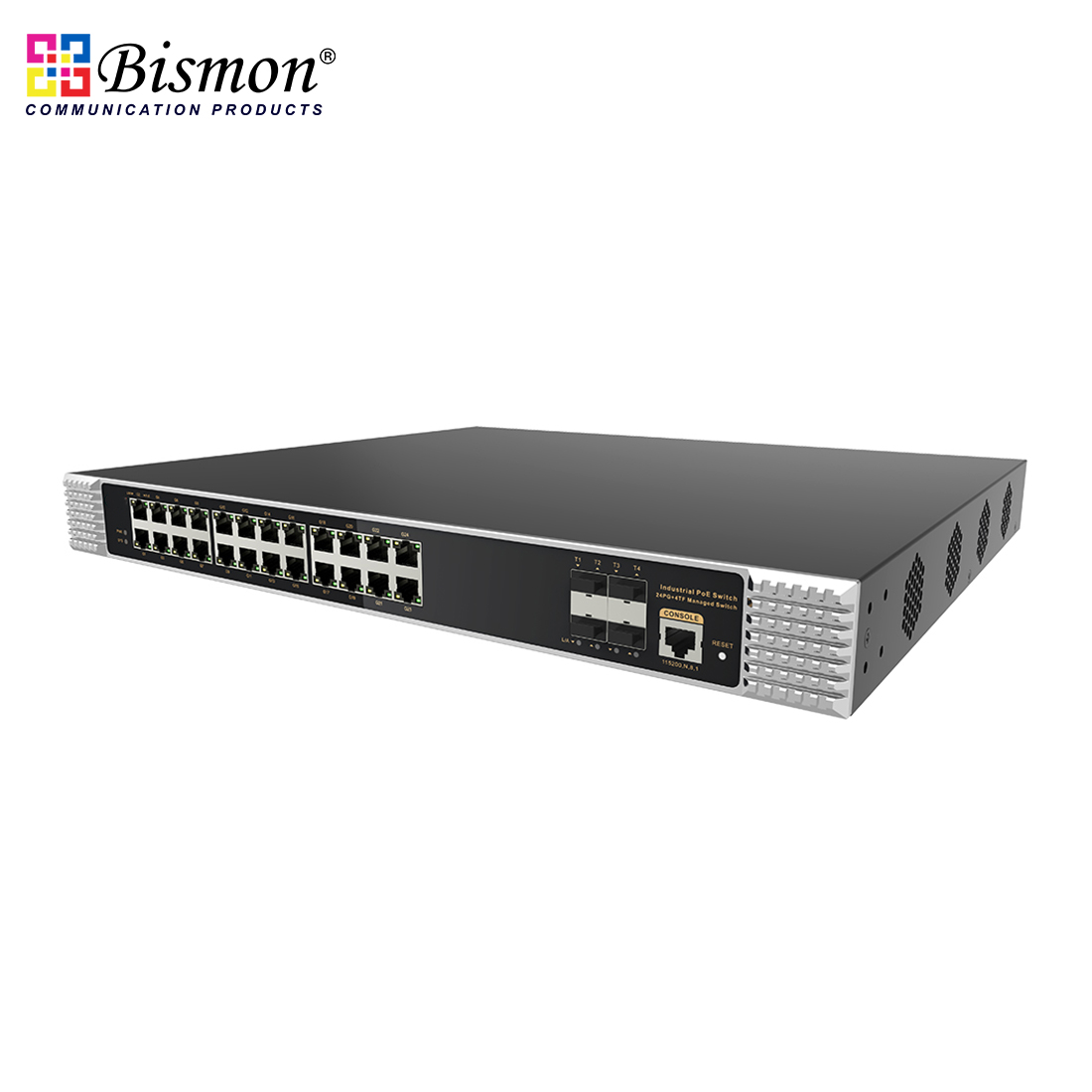

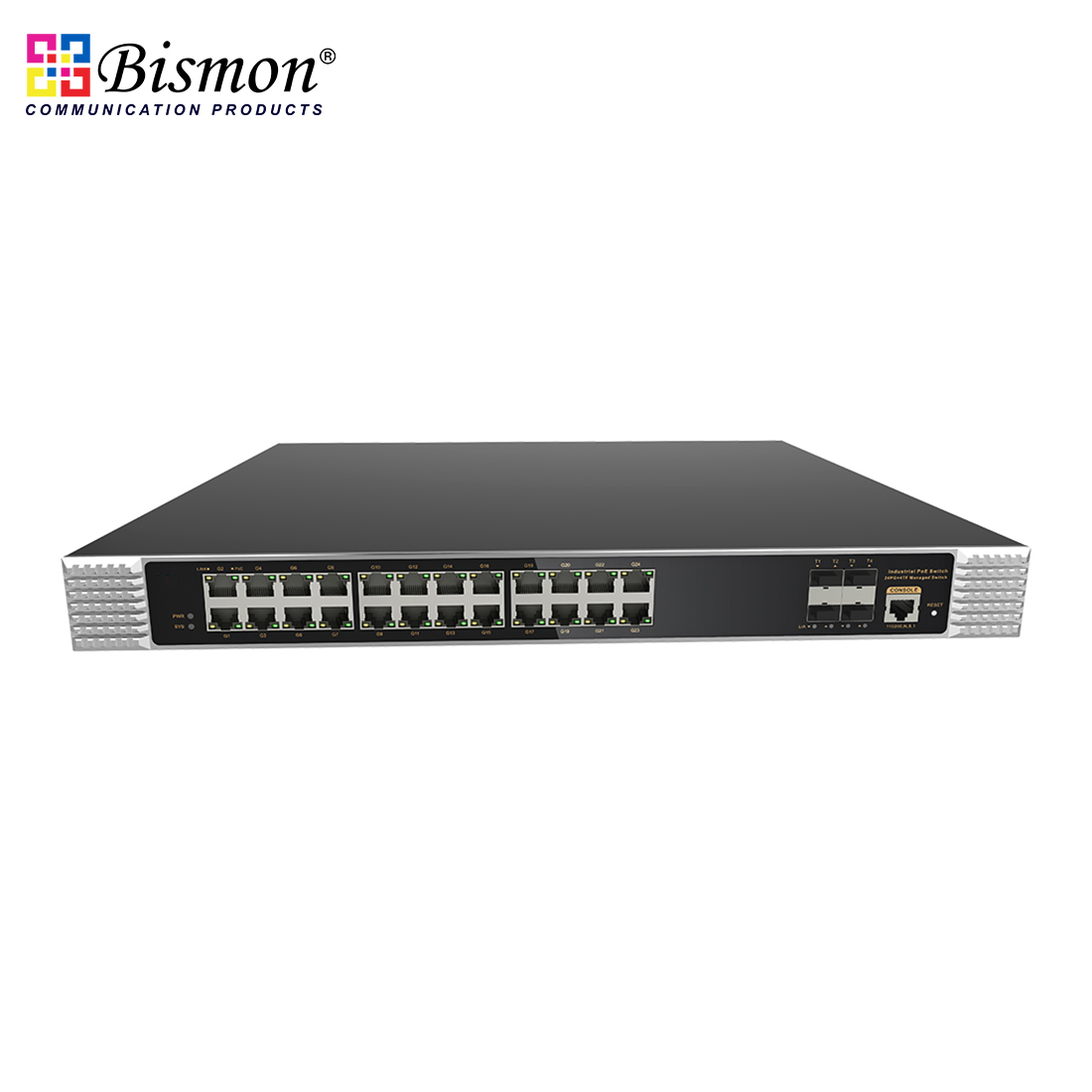

The B1-IPS58028PFM-at is a 10G uplink Layer 3 managed industrial PoE fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T adaptive RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-24 can support IEEE 802.3at PoE standard MAx: 600W. Single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network.

The B1-IPS58028PFM has Layer 3 network management function, supports IPV4/ IPV6 management, dynamic/ static routing and forwarding, complete security protection mechanism, perfect ACL/ QoS policy, and rich VLAN functions for easy management and maintenance. It supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When the one-way network fails, the communication can be quickly restored to ensure the uninterrupted communication of important applications. According to actual application needs, PoE power supply management, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application service configurations are performed through Web, CLI, SNMP, Telnet, and other network management methods.

FEATURE

Gigabit access, 10G uplink

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Support Gigabit Ethernet port and 10G SFP+ uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Intelligent PoE power supply

- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 24*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Security

- Support port isolation.

- Support port broadcast storm suppression.

- Support IP+MAC+port+VLAN quadruple flexible combination binding function.

- Support IEEE802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Strong business processing capability

- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.

- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Support IGMP SnoopingV1/V2/V3 multicast protocol IGMP to meet the multi-terminal high-definition video surveillance and video conference access requirements.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, PoE.

- Using self-developed power supply, redundant dual power supply provides long-term stable PoE power output.

- Low power consumption, galvanized steel casing. with fan, excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- Support NMS platform cluster management.

- Support CPU monitoring, memory monitoring, Ping detection, cable length detection.

- Support HTTPS, SSLV3, SSHV1/V2 and other encryption methods, making management more secure.

- Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.

- Support LLDP to facilitate the network management system to query and judge the communication status of the link.

- Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) and other diversified management and maintenance.

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-IPS58028PFM	B1-IPS58028PFM-at
Interface Characteristics
Fixed Port	2AC100-240V input ports Power failure alarm switch port (FAULT) 1Console RS232 port (115200, N, 8,1) 41/10G uplink SFP+ fiber ports (Data) 2410/100/1000Base-T PoE ports (Data/ Power) 2*DC48-57V input ports (support reverse polarity protection)
Ethernet Port	Port 1-24 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	Layer 3
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full wire speed)
Switching Capacity	128Gbps (non-blocking)
Forwarding Rate@64byte	95.23Mpps
CPU	800M
DRAM	1G
FLASH	128M
MAC	16K
Buffer Memory	12M
Jumbo Frame	12K
LED Indicator	Power: PWR(Yellow), System: SYS (Yellow), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-24
PoE Management	PoE working status display, Port PoE on/off, af/at power distribution
Power Supply Pin	1/2 (+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR/ Input Voltage	2*400W/ (AC100-240V)	2*600W /(AC100-240V)
Power Consumption	Standby<20W, full Load<380W	Standby<22W, full Load<600W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 5.0A	Built-in power supply, AC100~240V 50-60Hz, 6.6A
Power Input Port	Alarm switch port, 2AC power input ports, 2DC48-57V input ports Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity	-40°C~+75°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40°C~+85°C, 5%~95% RH non condensing
Dimension (LWH)	44037844.5mm
Net /Gross Weight	5.4kg/ 6.2kg	6.2kg/ 7.0kg
Installation	Desktop, 1U/19” cabinet
Certification& Warranty
Lightning Protection	IEC61000-4-3 (RS): 10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view IEEE 802.3x flow control (Full duplex), Port exception protection mechanism Limit the rate of incoming and outgoing packet traffic, mini granularity is16Kbps and max is 1Gbps
L3 Feature	IPV4/ IPV6 VRRP, max is 255 group IPV4/ IPV6 VLANIF port, max128 entries Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 IPV4/ IPV6 static route/ default route, max128 entries IPV4 dynamic routing, RIPv1/v2, OSPFv2, routing 4000 entries NG protocol, max 1000 entries, ARP protocol, max 1000 entries L3 network management function, IPV4/ IPV6 dual-stack management IPV6 dynamic routing OSPFv3, RIPng, IPV6 management, routing 1000 entries L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN	VLAN based on MAC, VLAN based on the protocol GVRP VLAN protocol, Port configuration of Access, Trunk, Hybrid (4K) VLAN based on port, IEEE 802.1q, Voice VLAN, QinQ configuration
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and max 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	ERPS, Recovery time less than 20ms, ITU-T G.8032
Multicast	MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring	Bidirectional traffic mirroring for basic ports Supports 1-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based rate limiting, Flow-based redirection Queue scheduling algorithm (SP, WRR, SP+WRR) Flow-based packet filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole
