Name: 24Port 10/100/1000Base-T+4SFP L2+ managed industrial PoE fiber switch(af)
Brand: BISMON
SKU: B1IPS33028PFM
Price: 25068.00 THB
Availability: InStock

24Port 10/100/1000Base-T+4SFP L2+ managed industrial PoE fiber switch(af)

▸ คำอธิบายภาษาไทย
คำอธิบายสินค้า B1-IPS33028PFM เป็นสวิตช์เครือข่ายอุตสาหกรรม Layer 2+ ที่มีประสิทธิภาพสูง พัฒนาโดยบริษัท BISMON โดยมีพอร์ต Gigabit ขนาด 24 พอร์ต RJ45 (10/100/1000Base-T) และ 4 พอร์ต SFP ไฟเบอร์ออปติก พร้อมรองรับ PoE (Power over Ethernet) มาตรฐาน IEEE 802.3af ที่สามารถส่งกำลังไฟฟ้า 30W ต่อพอร์ต ผ่านสายเครือข่ายเดียวกัน ช่วยให้ติดตั้งและจัดการอุปกรณ์เครือข่ายได้อย่างสะดวก เหม

Part number : B1-IPS33028PFM

Brand : BISMON

Price : 25,068.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 440*378*44.5mm

Warranty : 3 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-IPS33028PFM is full Gigabit L2+ managed industrial PoE fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T adaptive RJ45 ports and 4*100/1000Base-X SFP fiber ports. Port 1-24 can support IEEE 802.3 af PoE standard. Single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, industrial scenes such as shipping, metallurgy, and green energy construction form a cost-effective, stable and reliable communication network.

The B1-IPS33028PFM has an L2+ network management function, supports IPV4 management, static routing forward, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN functions for easy management and maintenance. It supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When the one-way network fails, the communication can be quickly restored to ensure the uninterrupted communication of important applications. According to actual application needs, PoE power supply management, port management, routing address management, port flow control, VLAN division, IGMP, security policy and other application service configurations are performed through Web, CLI, SNMP, Telnet and other network management methods.

FEATURE

Gigabit access and Gigabit SFP uplink

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Support Gigabit Ethernet port and Gigabit SFP uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Intelligent PoE power supply function

- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.

- 24*10/100/1000Base-T RJ45 support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.

Security

- Support port isolation.

- Support port broadcast storm suppression.

- Support port+MAC binding, IP+MAC+port binding function

- Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Strong business processing capability

- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN according to their needs.

- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.

- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Support IGMP V1/V2 multicast protocol, IGMP Snooping V1/V2/V3 meets multi-terminal high-definition video surveillance and video conference access requirements.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

- Using self-developed power supply, redundant dual power supply provides long-term stable PoE power output.

- Low power consumption, with fan, galvanized steel shell, excellent heat dissipation to ensure stable operation of the switch.

Easy O&M management

- Support NMS platform cluster management.

- Support CPU monitoring, memory monitoring, Ping detection, cable length detection.

- Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.

- Support HTTPS, SSLV3, SSHV1/V2 and other encryption methods, making management more secure.

- Support LLDP to facilitate the network management system to query and judge the communication status of the link.

- Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) ,Telnet and other diversified management and maintenance.

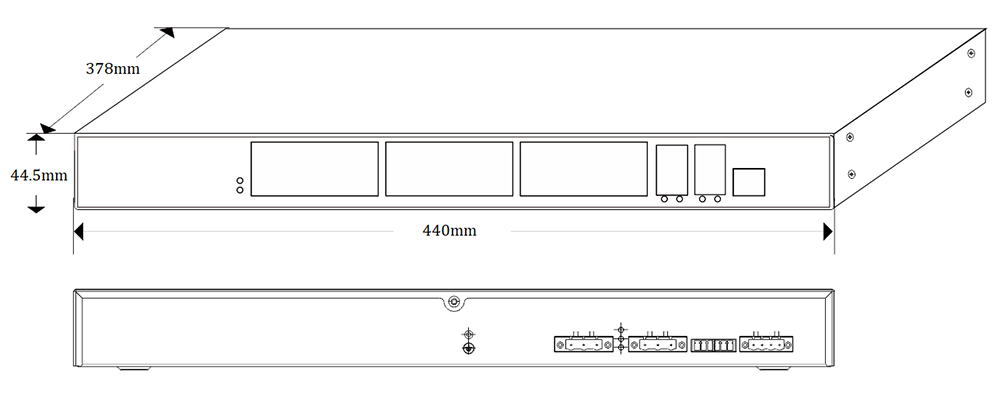

DIMENSION

28-port L2+ managed industrial PoE switch, industrial PoE switch, PoE switch

TECHNICAL SPECIFICATION

Model	B1-IPS33028PFM	B1-IPS33028PFM-at
Interface Characteristics
Fixed Port	2AC100-240V input ports 1RS232 Console port (115200, N, 8,1) 2410/100/1000Base-T PoE ports (Data/ Power) 4100/1000Base-X uplink SFP fiber ports (Data) 1 set DC48-57V input ports (support reverse connection protection)
Ethernet Port	Port 1-24 cab support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	Layer 2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	56Gbps (non-blocking)
Forwarding Rate@64byte	41.66Mpps
CPU	500M
DRAM	1G
FLASH	256M
MAC	8K
Buffer Memory	4.1M
LED Indicator	Power: PWR (Yellow), System: SYS (Yellow), Fiber port: L/A (Green), PoE: PoE (Green), Network: Link/ Act (Yellow)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-24 IEEE 802.3 af/at
PoE Management	Port PoE output on/off, Port PoE working status display
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR/ Input Voltage	400W/ (AC100-240V)	600W/ (AC100-240V)
Power Consumption	Standby<18W, Full Load<380W	Standby<22W, Full Load<600W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 5.0A	Built-in power supply, AC100~240V 50-60Hz, 6.6A
Power Input Port	Alarm switch port, 2AC power input ports, 2DC48-57V input ports Dual input power port: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	44037844.5mm
Net /Gross Weight	5.4kg/ 6.2kg	6.2kg/ 7.0kg
Installation	Desktop, 1U/19” cabinet
Certification & Warranty
Lightning Protection	IEC61000-4-3(RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m,1000A/m, 1-3s IEC61000-4-5( Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Broadcast storm suppression based on port rate Port real-time traffic management (Flow Interval) Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 16Kbps and max is 1Gbps
L3 Feature	IPV4 static route/ default route
VLAN	Port configuration of Access, Trunk, Hybrid IEEE802.1q, Port-based VLAN (4K), VLAN based on the protocol
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and 8 ports per group
Spanning Tree	RSTP (IEEE 802.1w)
ERPS	ERPSv2
Multicast	Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2
Port Mirroring	Bidirectional data mirroring based on port
QoS	802.1p/ DSCP priority mapping, Diff-Serv QoS Queue scheduling algorithm (SP, WRR, WFQ) Flow-based rate limiting, Flow-based packet filtering Flow-based based redirection, 8*Output queues of each port
ACL	Port-based and VLAN-delivered ACL The L2-L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range to define the ACL.
Security	Port isolation, Port broadcast message suppression Port-based and Mac-based IEEE802.1X certification User hierarchical management and password protection AAA&RADIUS certification, IP source address protection
DHCP	DHCP Client, DHCP Snooping
Management	Web network management (https), Ping detection ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status Link Layer Discovery Protocol (LLDP), System work log Console/ Telnet and CLI configuration, SNMP V1/V2/V3 NTP clock, HTTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
