Product Overview:‌

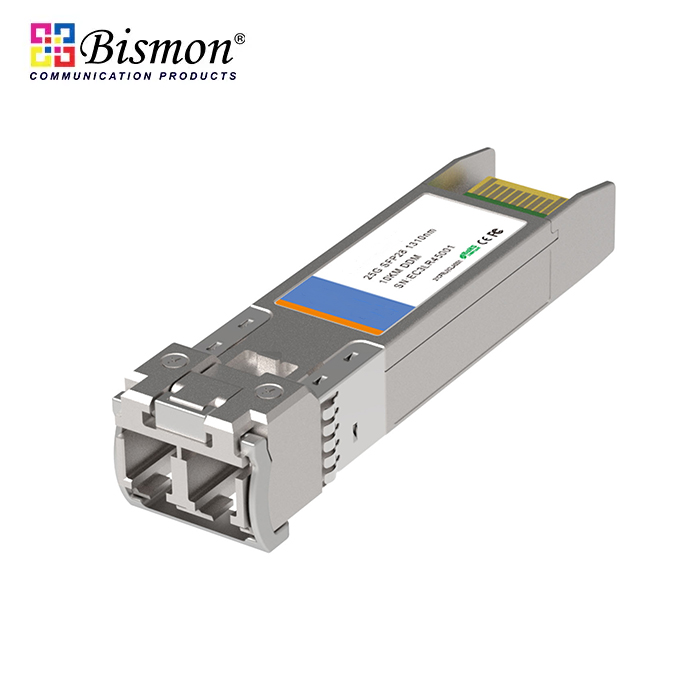

The 25G SFP28 LR is a high-performance, hot-pluggable optical transceiver designed for 25 Gigabit Ethernet applications. Operating at 1310nm wavelength, this module supports transmission distances up to 10 kilometers over single-mode fiber (SMF), making it ideal for long-reach data center interconnects and telecommunications networks.

This reliable and cost-effective solution enables smooth migration from 10G to 25G networks. The module is particularly suitable for 25G Ethernet, cloud computing, and 5G fronthaul applications requiring stable, long-distance connectivity.

Key Features:

• -Hot-pluggable SFP28 form factor
• -Supports 25Gbps data rate
• -Maximum link length of 10km
• -1310nm DFB laser and PIN photo-detector
• -Internal CDR on both Transmitter and Receiver channel
• -Duplex LC receptacle
• -Single 3.3V power supply
• -Power dissipation < 1.5W
• -Digital diagnostics functions are available via the I2C interface
• -RoHS-6 compliant
• -Commercial case temperature range: 0°C to 70°C
