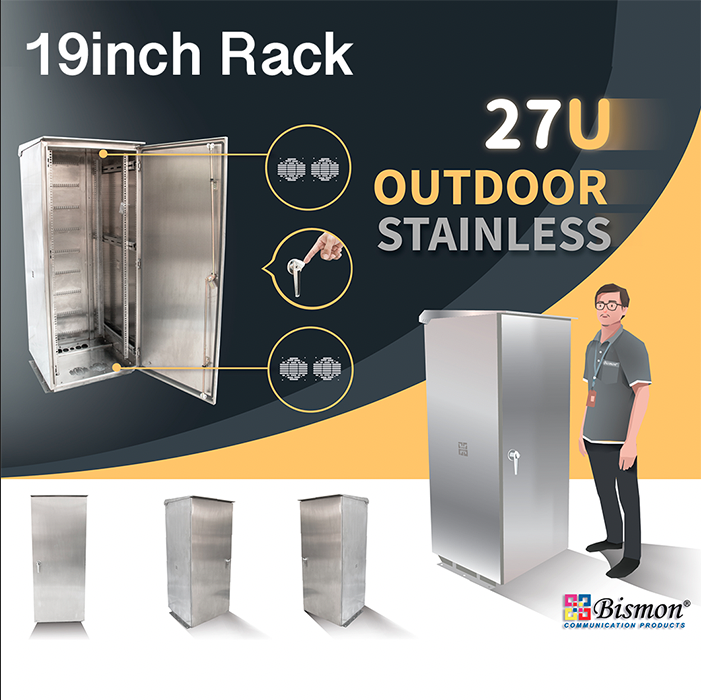

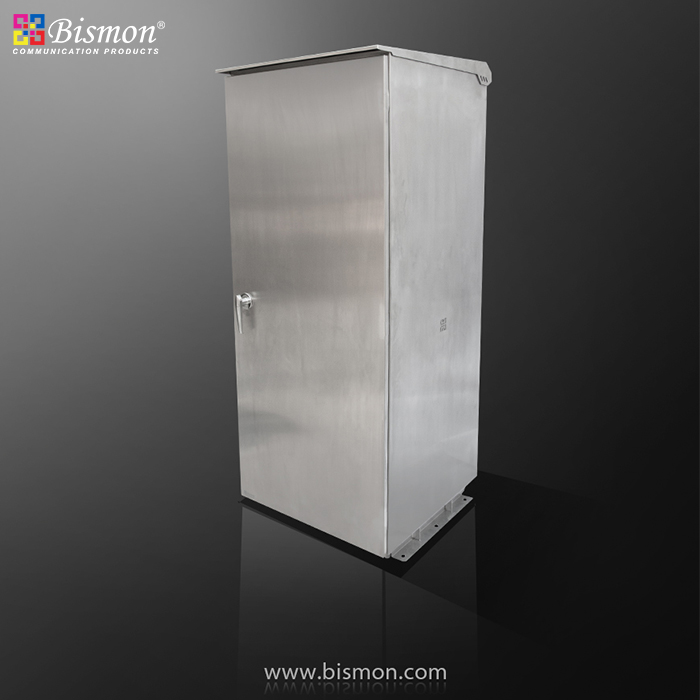

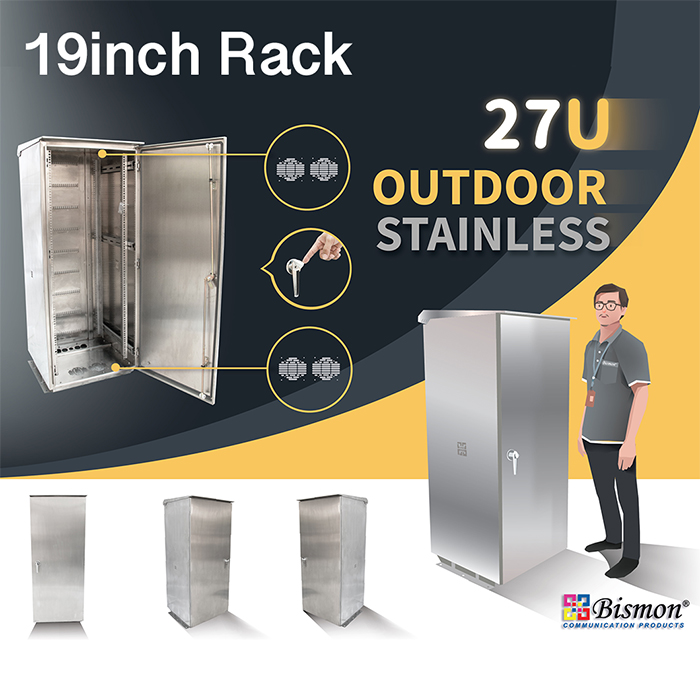

19" 27U Outdoor Cabinet Rack deep 60cm, compatible 19inch for all equipment Stainless steel for stand outdoor type, Use for Equipment active device 19" standard. The Cabinet is compliant with IP55 (Dust and water protection) or IP65 (Option) standard. One door lockable and dust, made from "CNC" Foam Gaskets" style high-quality grade for waterproof and dust
 Stainless Steel.jpg)
| Brand |
Bismon |
| Model |
B1-WM27U-OUT6ST |
| Equipment Type |
Wall rack outdoor |
| Size |
1343 mm x 600 mm x 600 mm (HighxWidthxDepth) |
| Standard |
Compliant IP55 |
| Color |
|
| Material |
Stainless Steel, High-Quality Grade |
| Application |
The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment |
| Features |
• 19-inch support for rack style, 2 Pole standard Rack 27U (Option: add 2 Pole 19” Back side support shelve) |
| |
• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets” |
| |
style, not rubber style |
| |
• Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened |
| |
• All screw or nut made of stainless steel |
| |
• Can support rack-mount 1U or 3U patch panel fiber optic max capacity: 27U |
| |

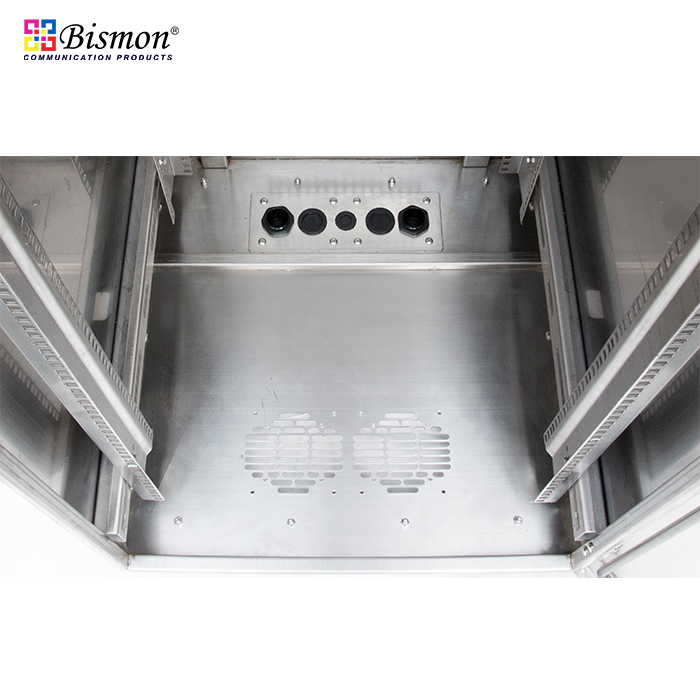

• Can support cable entry 5 port and 2 cable glands EG/PG29 |
| |
• Can support cable management inside easy for use cable tie lock |
| |
• Can support FAN 2x4” for airflow, 2 points (Top & Bottom Rack) Max:4 pcs, Option: for Filter FAN 2x4” double protect dust inside |
| |
• Complete set tools for hang on pole and support 4 hole for wall type |
| |
• Can support hinges provide 130 deg. door opening |
| |
• Surface finished cabinet with epoxy-polyester coating |
| |
•Can support hinges provide 130 deg. door opening. |
| |
|
