OVERVIEW

The Fibrlok Fiber Optic Mechanical Splice from 3M is great for your restoration work and many other applications that require that fiber optic splicing to be done in a quick and efficient manner. Using the 3M Fibrlok Fiber Optic Mechanical Splice, you can complete a fiber optic splice within 30 seconds after preparing the ends of the optical fiber.

This Fiber Optic Mechanical Splice has an insertion loss <.2dB,  and the optical fiber has a retention of >7.75 lbs. The Fibrlok Fiber Optic Mechanical Splice is known for its low reflection characteristics of -35dB and has a thermal stability of -40°C to 80°C.  The Fibrlok Fiber Optic Mechanical Splice is designed to accommodate 250-900µm buffer sizes.

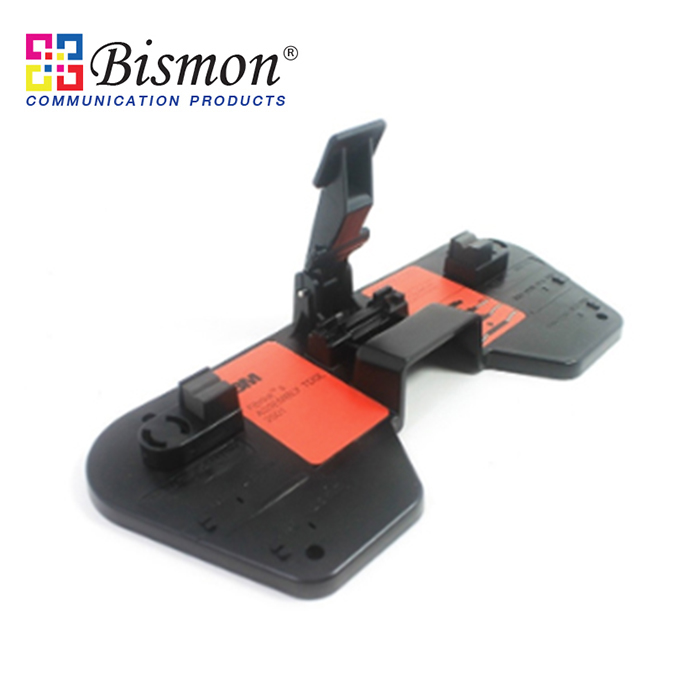

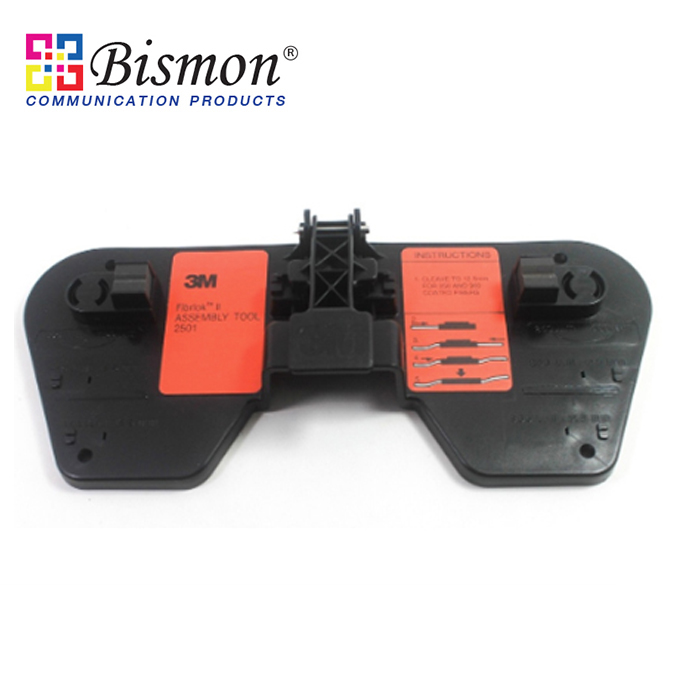

Using V groove technology, the Fibrlok Fiber Optic Mechanical Splice requires no epoxy. For assembling this Fiber Optic Mechanical Splice, use the Fibrlok Assembly Tool #2501.

3M Fibrlok uses V groove technology, and doesn't require epoxy. Uses Fibrlok assembly tool 2501. Splice completed in 30 seconds after preparing fiber ends.Fibrlok fits 250-900µm buffer sizes.

Specifications

 • Insertion loss <.2dB

 • Fiber retention of >7.75 lbs

 • Low reflection characteristics of -35dB

 • Thermal stability of -40°C to 80°C
