3U Rackmount DIN Rail Power Distribution Unit

The 3U Rackmount DIN Rail Power Distribution Unit is designed for organized electrical power distribution and protection inside standard 19-inch rack cabinets.
It features a robust metal enclosure with a standard 3U rackmount design, providing convenient integration with network, telecom, CCTV, and industrial equipment racks.

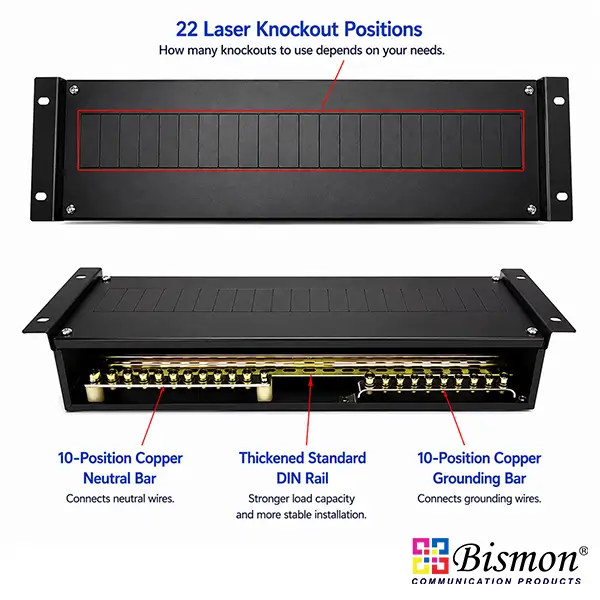

The front panel provides 22 laser knockout positions, allowing flexible installation of circuit breakers according to actual project requirements.

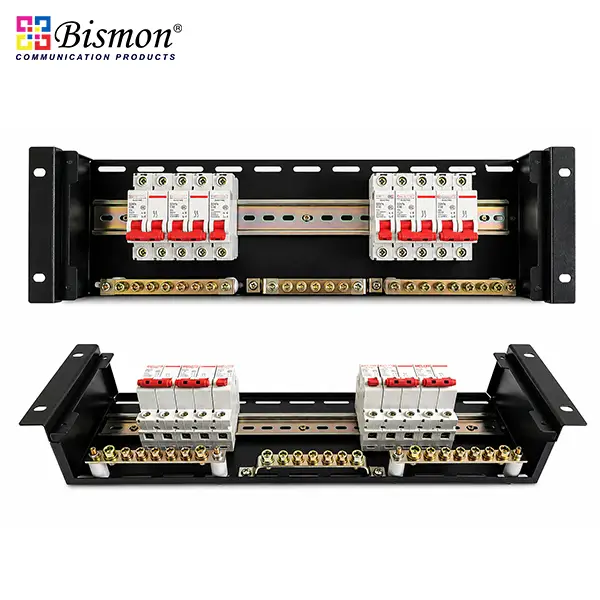

A standard DIN rail is installed inside the enclosure for mounting MCBs, RCCBs, RCBOs, SPDs, relays, terminal blocks, and other DIN-rail electrical devices.
The unit supports various breaker configurations, including 1-pole, 2-pole, 3-pole, and 4-pole circuit breakers.
A 10-position copper neutral bar is provided for convenient and organized neutral wire termination.
A 10-position copper grounding bar provides a dedicated connection point for protective grounding conductors.
The removable front cover allows easy installation, wiring, inspection, and maintenance of internal electrical components.

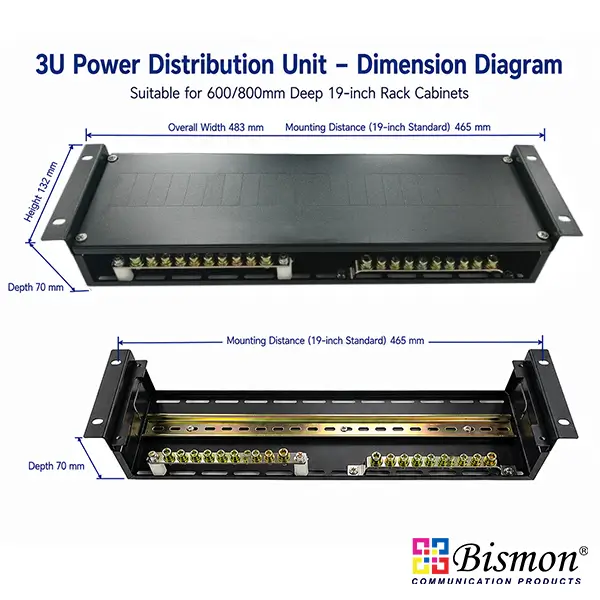

Its standard 19-inch rackmount construction makes it suitable for installation in 600 mm and 800 mm deep rack cabinets.
This unit provides a practical and professional solution for integrating electrical distribution and circuit protection directly into rack-based systems.

Key Features

• -Standard 19-inch Rackmount Design – Designed for installation in standard 19-inch equipment cabinets.
• -3U Rack Height – Provides more internal installation space for electrical protection and distribution components.
• -22 Laser Knockout Positions – Allows the required number of openings to be selected according to the installed breakers.
• -Built-in DIN Rail – Supports standard DIN-rail electrical devices and accessories.
• -Multiple Breaker Configurations – Suitable for 1P, 2P, 3P, and 4P circuit breakers.
• -10-Position Copper Neutral Bar – Provides organized termination points for neutral conductors.
• -10-Position Copper Grounding Bar – Provides dedicated connection points for protective earth conductors.
• -Durable Metal Construction – Provides mechanical protection for electrical components installed inside the enclosure.
• -Removable Front Cover – Simplifies installation, wiring, inspection, and maintenance.
• -Rack Cabinet Compatibility – Suitable for standard 600 mm and 800 mm deep 19-inch rack cabinets.

Functions

The main function of the 3U Rackmount DIN Rail Power Distribution Unit is to provide a centralized enclosure for electrical distribution, circuit protection, grounding, and wiring management within a 19-inch rack system.

It can accommodate various DIN-rail mounted devices, including:

• -MCB – Miniature Circuit Breaker
• -RCCB – Residual Current Circuit Breaker
• -RCBO – Residual Current Circuit Breaker with Overcurrent Protection
• -SPD – Surge Protection Device
• -DIN-rail Fuse Holder
• -DIN-rail Terminal Block
• -Relay and Contactor
• -Power Monitoring Device
• -Other compatible DIN-rail electrical components

The integrated neutral and grounding bars help keep Line, Neutral, and Protective Earth wiring properly organized within the enclosure.

Applications

The 3U Rackmount DIN Rail Power Distribution Unit is suitable for:

• -Data Centers and Server Rooms
• -Network and Communication Rooms
• -Telecommunication Systems
• -CCTV and Security Systems
• -Industrial Network Systems
• -Building Automation Systems
• -Access Control Systems
• -Audio/Visual and PA Systems
• -Solar Monitoring and Control Systems
• -Industrial Control and Automation
• -Smart Building Systems
• -19-inch Rack Power Distribution Systems
