OVERVIEW

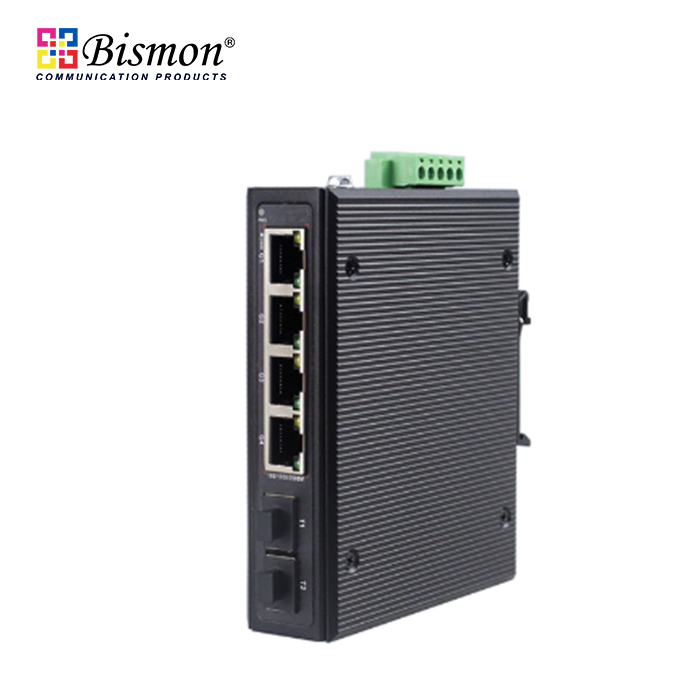

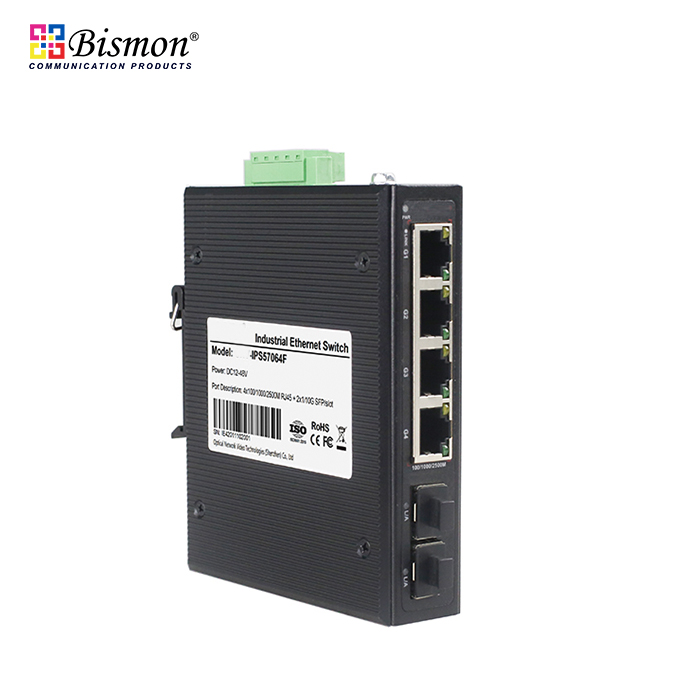

The B1-IPS57064F is a 2.5G high-speed industrial Ethernet fiber switch independently developed by BISMON. It has 4*10/100/1000/2500Base-T adaptive RJ45 ports and 2*1/2.5/10G uplink SFP+ fiber ports. Each port can support line-rate forwarding.
The B1-IPS57064F follows the design materials of industrial products, and the shell is made of aluminum alloy to enhance heat dissipation, which has excellent industrial field environmental adaptability (mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.), protection level IP40, support dual power supply, low power consumption, and 5 years warranty. The industrial switch is suitable for building cost-effective, stable, and reliable communication networks in industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
2.5G access, uplink 1/2.5G/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 2.5G RJ45 port and 1/2.5/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and L/A.
- Low power consumption, no fan, aluminum alloy shell, and excellent heat dissipation to ensure the stable operation of the switch.
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS57064F
|
|
Interface Characteristics
|
|
Fixed Port
|
2*1/2.5/10G uplink SFP+ fiber ports (Data)
4*10/100/1000/2500Base-T RJ45 ports (Data)
2 set of V+, V- redundant DC power ports (5 Pin Phoenix terminal)
|
|
Ethernet Port
|
Port 1-4 support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
2500BASE-T: Cat6A or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-500m, 2.5G/10G /0-300m
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3bz 2.5GBase-T, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
60Gbps (non-blocking)
|
|
Forwarding
Rate@64byte
|
44.64Mpps
|
|
MAC
|
4K
|
|
Buffer Memory
|
4Mbit
|
|
Jumbo Frame
|
12KB
|
|
LED Indicator
|
Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green)
|
|
Power Supply
|
|
Power Consumption
|
Standby<3W, Full load<10W
|
|
Working Voltage
|
DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP/ Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage TEMP/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
119*100*30mm
|
|
Net /Gross Weight
|
0.4kg / 0.5kg
|
|
Installation
|

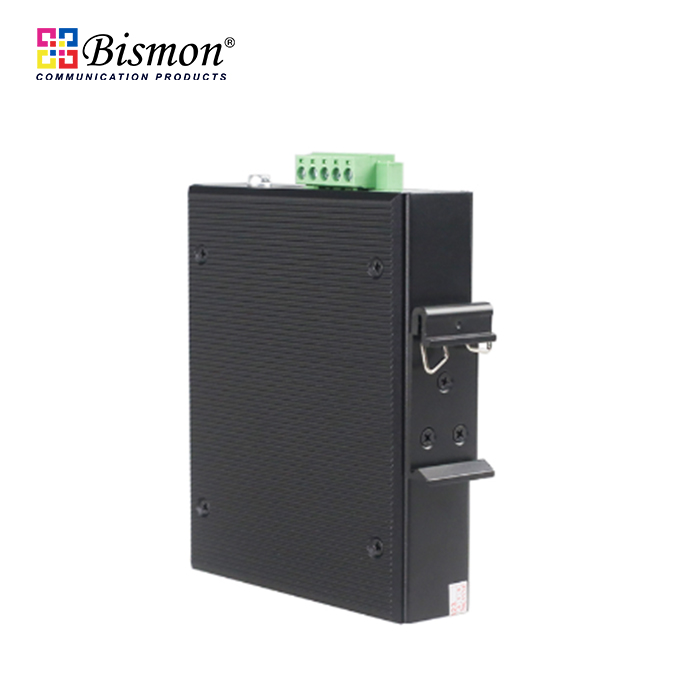

Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP40
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz
IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV
IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
