OVERVIEW

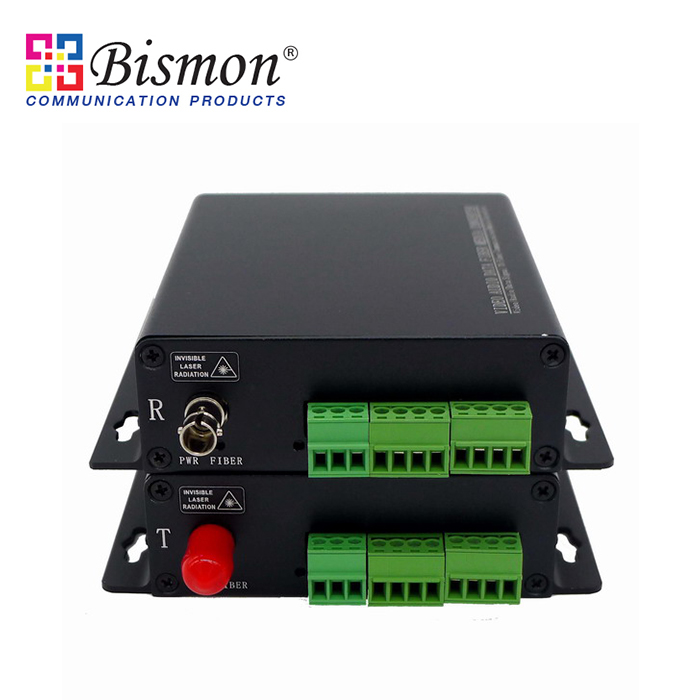

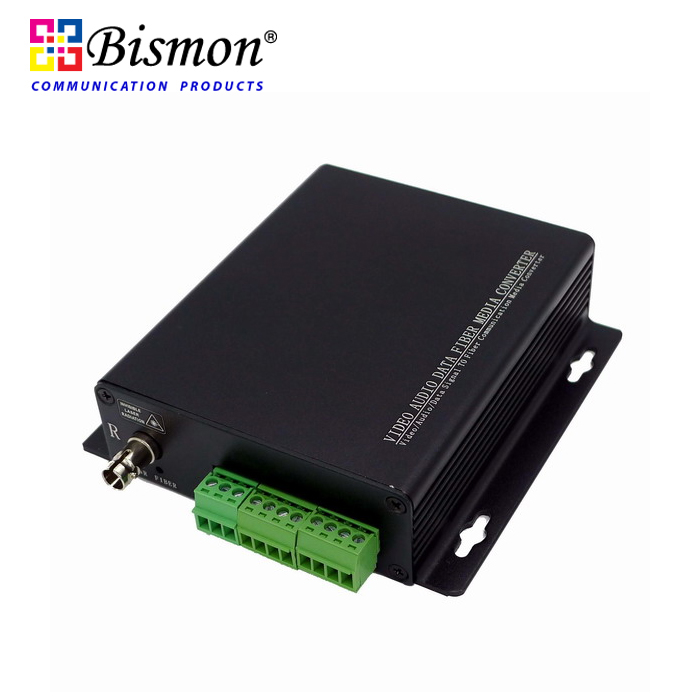

4ch Audio to Fiber Optic support 4 Channel 24-bit digitally encoded broadcast-quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
| Specifications |
|
| |
|
| Optical |
|
| Optical connector |
FC |
| Connector |
Standard terminal lead |
| Audio |
Unbalanced |
| Number of Channels |
4 Ch |
| Wavelength |
1310nm&1470nm~1610nm |
| Output Power |
-14~ -8dBm / -5~0dBm |
| Optic fiber |
50/125u multimode, 62.5/125u multimode, 9/125u single mode |
| Rx sensitivity |
-30dBm |
| Optical connector |
FC, ST, SC (optional) |
| Distance |
0~2KM (MM) / 0~20KM ,60KM , 100KM (SM) |
| Audio |
|
| Input/output Impedance |
600ohm(unbalance) |
| Max input/output voltage |
3.0Vp-p |
| Frequency Response |
10 Hz?29kHz @±3dB |
| SNR |
> 70dB |
| Connector |
Standard terminal lead |
| Electrical & Mechanical |
|
| Input Power Requirements: |
DC 5V@2A |
| Power Adapter: |
AC 90V~240V |
| Power Consumption: |
< 3W |
| Stand-Alone Dimensions: |
104mm × 104mm × 28mm |
| Shipping Weight: |
(include Transmitter & Receiver ) 1.5kg |
| Environmental |
|
| Operating Temperature: |
-20°C ~ +75°C |
| Storage Temperature: |
-40°C ~ +85°C |
| Relative Humidity: |
0% ~ 95% (non-condensing) |
| MTBF: |
>100,000 hours |
| |
|
.jpg)

.jpg)

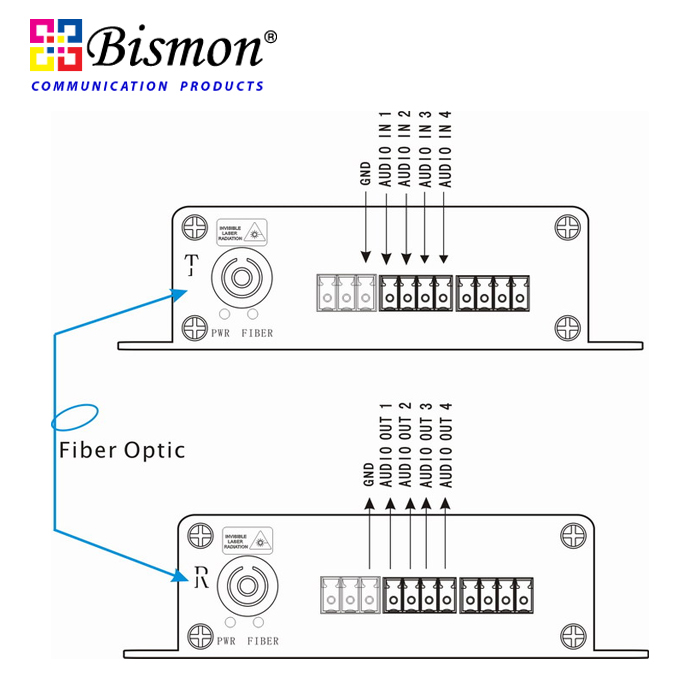

4 Ch Audio unbalanced to over fiber optic cable
