Product Introduction

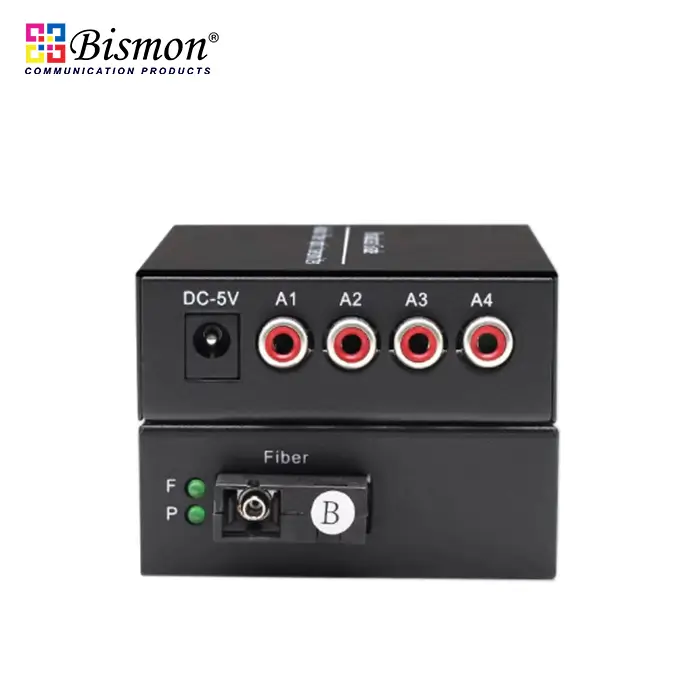

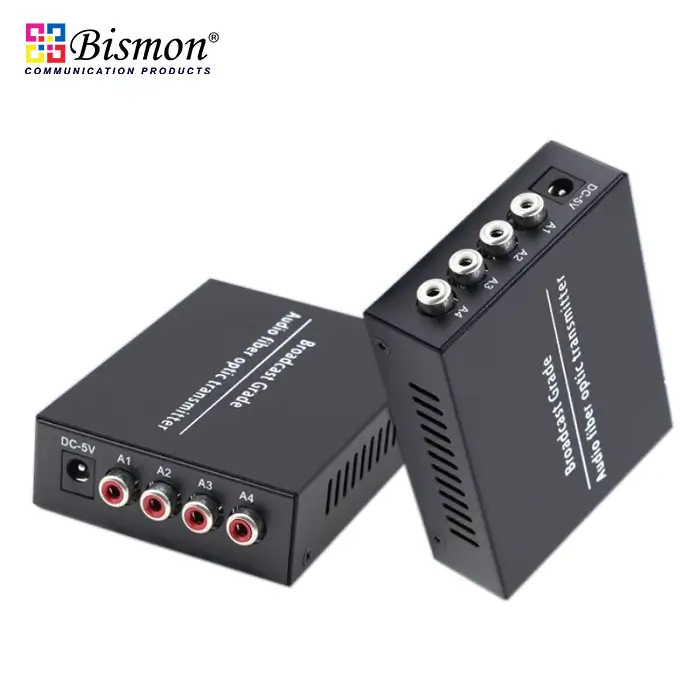

The 4-Channel Unidirectional (One-Way) RCA Audio Fiber Optic Transmitter is a high-quality broadcast-grade device designed for long-distance analog audio transmission via single-mode optical fiber.
It supports four RCA audio input channels, allowing simultaneous transmission of multiple audio signals up to 20 km without loss, noise, or delay.
Built with a metal body, DC 5V power supply, and SC optical connector, the unit provides excellent heat dissipation, EMI protection, and stable performance.

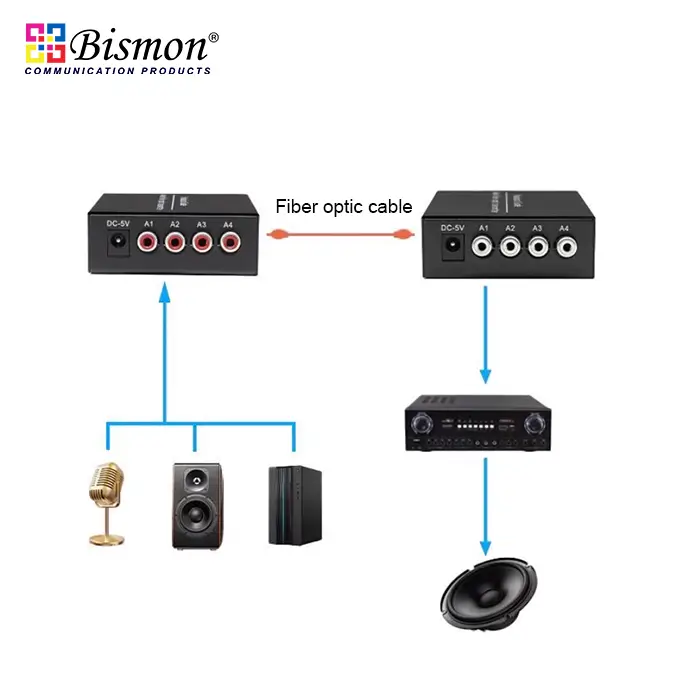

Ideal for background music systems, campus broadcasting, surveillance audio, and public sound installations, this compact and durable transmitter ensures real-time, distortion-free sound for professional applications.
Key Features
-4-Channel Unidirectional Audio Transmission – Transmits 4 analog RCA channels over one optical fiber
-Broadcast-Grade Sound Quality – Real-time transmission with zero distortion or compression
-Long-Distance Optical Link – Supports up to 20 km via Single-Mode SC Connector
-High Stability – Metal enclosure ensures heat resistance and interference protection
-DC 5V Power Supply – Low power consumption and safe operation
-Plug & Play Design – Simple installation without software configuration
-Compact Metal Body – Lightweight, durable, and suitable for professional environments
-Ideal For – Background music, campus broadcasting, audio monitoring, and public address systems
Product Parameters
| Parameter |
Specification |
| Product Name |
4-Channel Unidirectional Audio Fiber Optic Transmitter (RCA Type) |
| Audio Interface |
RCA Input (4 Channels) |
| Transmission Type |
One-Way (Unidirectional) |
| Number of Channels |
4 Channels |
| Transmission Distance |
0 – 20 km |
| Optical Interface |
SC (Single-mode Fiber) |
| Power Supply |
DC 5V |
| Material |
Full Metal Enclosure |
| Color |
Black |
| Operating Temperature |
−20 °C ~ +70 °C |
| Storage Temperature |
−40 °C ~ +80 °C |
| Warranty |
1 Year |
รายละเอียดสินค้า
อุปกรณ์ ส่งสัญญาณเสียงผ่านใยแก้วนำแสงแบบทางเดียว 4 ช่อง (4-Channel Unidirectional Audio Fiber Optic Transmitter – RCA Type)
ออกแบบมาเพื่อการส่งสัญญาณเสียงอนาล็อกคุณภาพสูงระดับ Broadcast-grade ได้ระยะไกลสูงสุดถึง 20 กิโลเมตร ผ่านสายใยแก้วนำแสง Single-mode SC Connector
รองรับสัญญาณเสียงเข้าแบบ RCA จำนวน 4 ช่อง ส่งออกแบบ Real-time ไม่มีการสูญเสียสัญญาณ ไม่มีเสียงรบกวน ตัวเครื่องผลิตจากโลหะทั้งชิ้น แข็งแรง ทนความร้อน ระบายอากาศได้ดี และใช้พลังงานต่ำด้วยระบบไฟ DC 5V
เหมาะสำหรับ ระบบเสียงตามสาย, ระบบเสียงโรงเรียนหรือมหาวิทยาลัย, ระบบประกาศ, ระบบตรวจสอบเสียง และระบบเสียงในอาคารหรือกลางแจ้ง
คุณสมบัติเด่น
-ส่งสัญญาณเสียงทางเดียว 4 ช่อง ผ่านสายไฟเบอร์ออปติกเส้นเดียว
-ใช้หัวต่อเสียง RCA คุณภาพสูง ให้เสียงคมชัด ไม่มีสัญญาณรบกวน
-คุณภาพเสียงระดับ Broadcast-grade ส่งแบบ Real-time ไม่มีดีเลย์
-ส่งสัญญาณได้ระยะไกลสูงสุด 20 กม. ผ่านสายใยแก้วนำแสง Single-mode SC
-ตัวเครื่องโลหะ แข็งแรง ทนทาน ระบายความร้อนได้ดี
-ใช้ไฟ DC 5V เสถียร ปลอดภัย เหมาะกับการทำงานต่อเนื่อง
-ติดตั้งง่ายแบบ Plug & Play ไม่ต้องตั้งค่าเพิ่มเติม
-เหมาะสำหรับ ระบบเสียงตามสาย, ระบบกระจายเสียง, ระบบตรวจสอบเสียง และระบบเสียงในอาคาร/กลางแจ้ง
