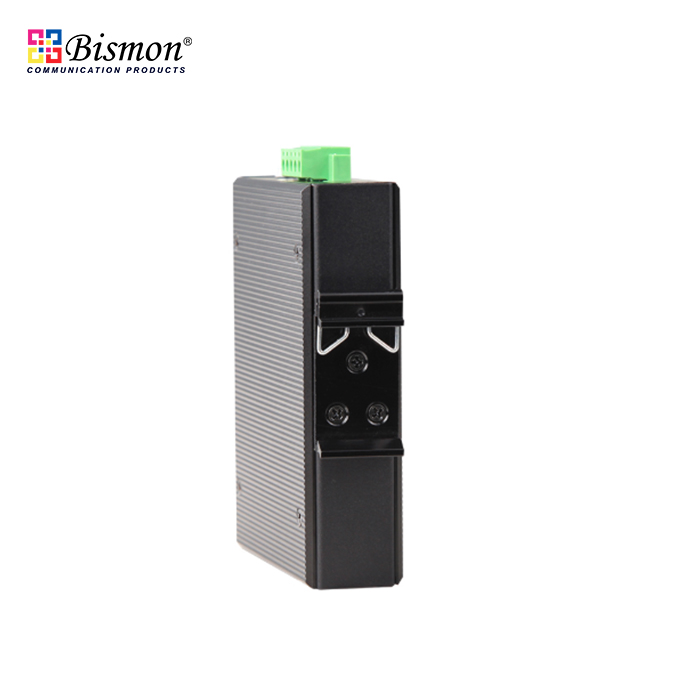

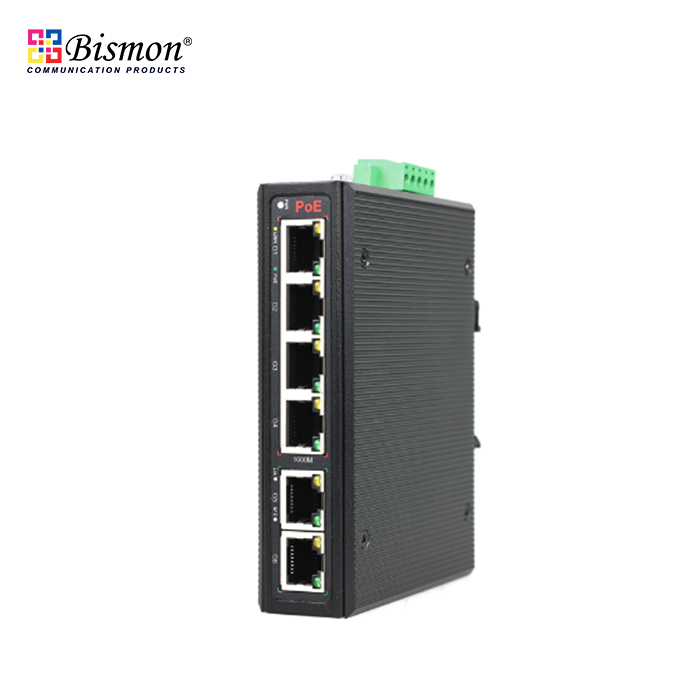

4 Port PoE Gigabit-2x RJ45 Gigabit Industrial Switch
คำอธิบายสินค้า อุปกรณ์สวิตช์อุตสาหกรรม B1-IPS33064P เป็นสวิตช์ PoE แบบ Gigabit เต็มรูปแบบที่ออกแบบมาเพื่อการจ่ายไฟและถ่ายโอนข้อมูลผ่านสายเคเบิลเดียว โดยมีพอร์ต RJ45 จำนวน 6 พอร์ต (พอร์ท 1-4 รองรับ PoE มาตรฐาน IEEE 802.3af/at) ที่สามารถจ่ายพลังงานได้ถึง 30W ต่อพอร์ตและ 60W สำหรับระบบทั้งหมด อุปกรณ์นี้มีความสามารถในการตรวจจับและจดจำอุปกรณ์ที่รองร
Part number : B1-IPS33064P
Brand : BISMON
Price : 5,800.00 Baht
Delivery time : 15 Day
Minimum order quantity : 1 pcs
Size : 119*100*30mm
Warranty : 3 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-IPS33064P series is a full gigabit industrial PoE switch independently developed by BISMON. It has 6*10/100/1000Base-T RJ45 ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
Unmanaged industrial PoE switch with 6*10/100/1000M RJ45 ports, Port 1-4 can support IEEE802.3af/at PoE standard. Support DC dual power supply input and DIN rail mounting.
FEATURE
Gigabit wire speed forwarding
• All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, wide voltage input
• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input
• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V
Intelligent PoE power supply
• 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
• Low power consumption, No fan, aluminum casing.
• CCC,CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, L/A,PoE.
