High-Density Fiber Optic Distribution Cabinet
Supports 400 Cores (SC Simplex) / 800 Cores (LC Duplex Adapters)
This high-density fiber optic distribution cabinet is specifically designed for large-scale fiber optic infrastructure within buildings.It serves as a centralized fiber termination and management point, enabling clean, safe, and efficient cable organization.
The cabinet is constructed from high-quality steel to ensure durability and long-term operational reliability. Its internal layout is engineered to simplify fiber routing, splicing, and future maintenance.Supporting both single-mode and multi-mode fiber types, the cabinet offers flexibility for various network architectures.The design allows the use of SC Simplex and LC Duplex adapters within the same enclosure.It significantly reduces installation space compared to multiple 19-inch rack cabinets.This solution is ideal for modern buildings requiring professional-grade fiber management without compromising space or accessibility.
Key Features
-Supports up to 400 fiber cores with SC Simplex adapters or 800 fiber cores with LC Duplex adapters

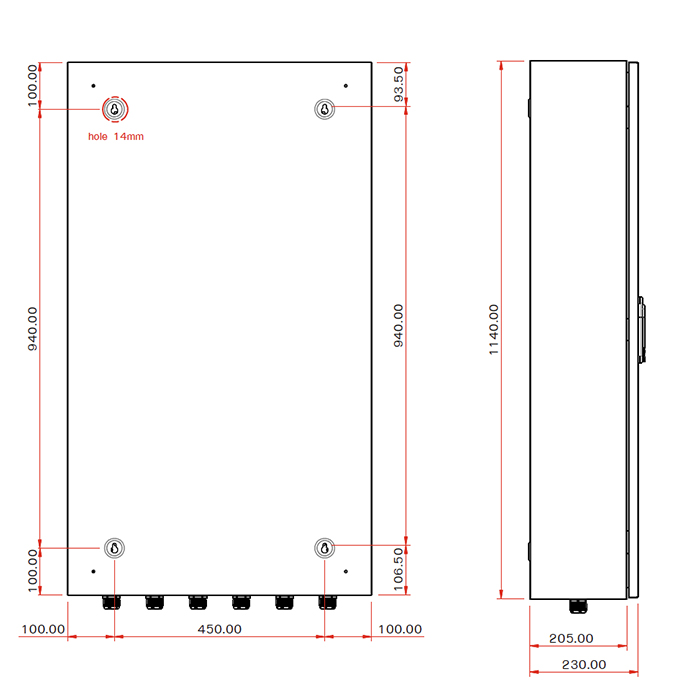

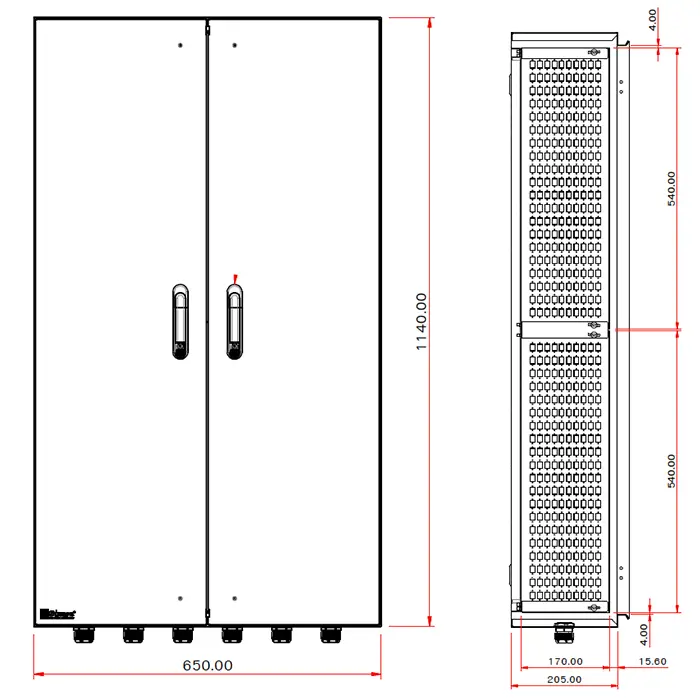

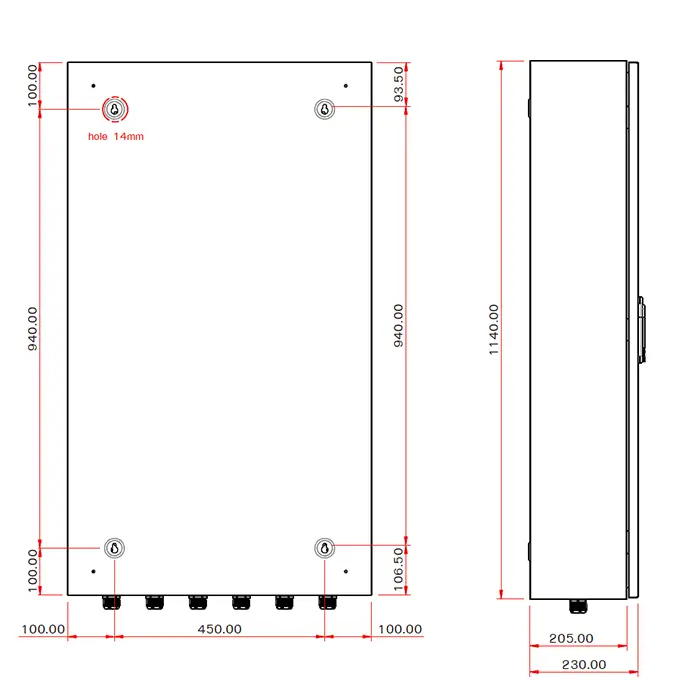

-Cabinet dimensions: 1140 × 650 × 205 mm, suitable for indoor wall-mounted installation
-Constructed from 1.4 mm thick SPCC steel, providing high mechanical strength and durability
-Compatible with both Single-mode and Multi-mode fiber optic cables
(62.5/125µm, 50/125µm OM2, OM3, OM4)
-Equipped with one full-height vertical fiber management panel for organized cable routing
-Supports installation of SC Simplex and LC Duplex female adapters
-Includes five (5) sets of 24-core splice trays, with five trays per set, enabling efficient fiber splicing and distribution
-Dual front doors provide easy access for installation, inspection, and maintenance
-Eliminates the need for multiple 19-inch rack cabinets, saving valuable installation space
Applications
-Fiber optic backbone and distribution systems in condominiums and apartment buildings
-Office buildings, commercial complexes, and high-rise buildings
-Multi-tenant buildings and shop-houses with centralized network infrastructure
-Industrial facilities and manufacturing plants
-Centralized fiber termination points for Internet, CCTV, Smart Building, and Enterprise Network systems
-Projects requiring high-capacity fiber management with a clean, professional, and space-efficient solution
