4810/100/1000 RJ45 and 41/10G uplink SFP+ slot L2 managed

Part number : B1-IPS36048FM

Brand : BISMON

Price : 47,200.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

OVERVIEW

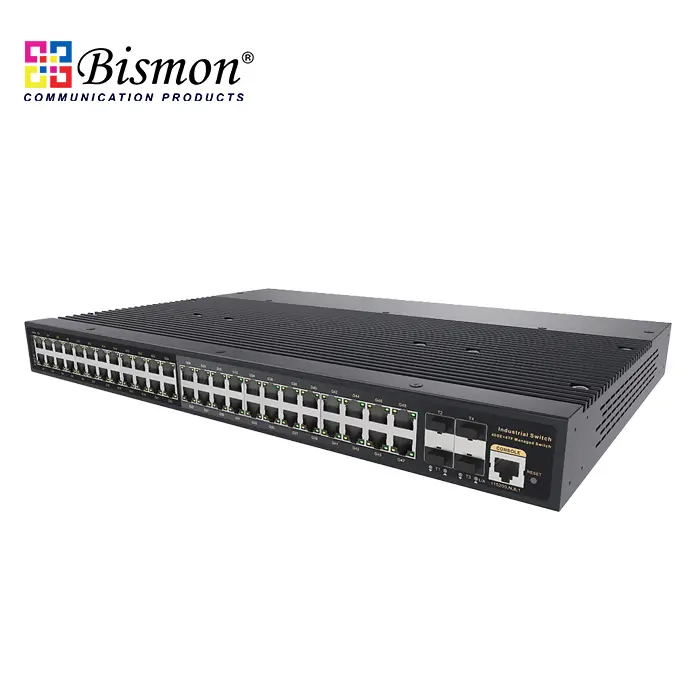

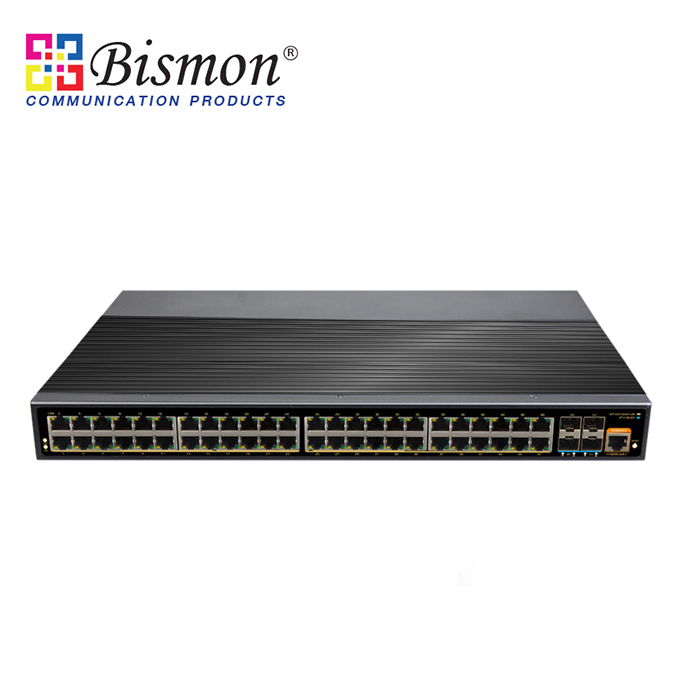

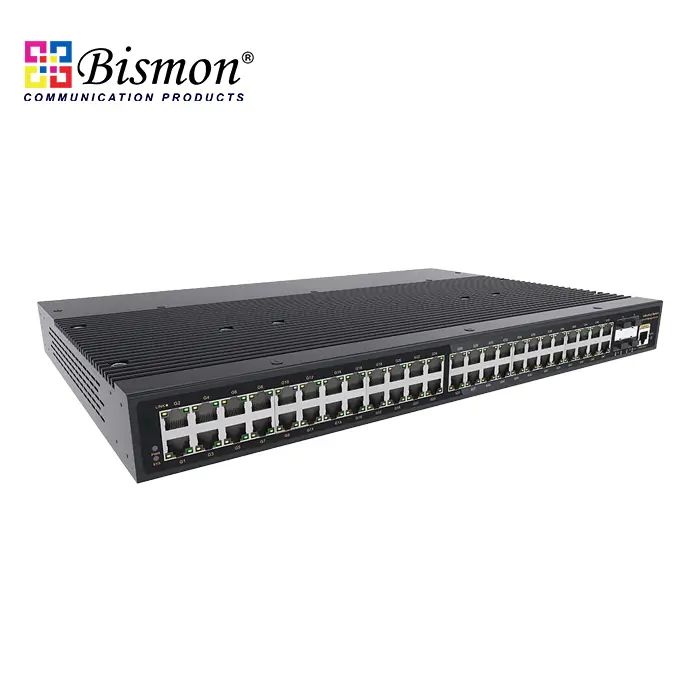

The B1-IPS36048FM series is a 10G uplink managed industrial Ethernet switch independently developed by BISMON. It has 48*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.

The B1-IPS36048FM has L2+ full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It meets the needs of various industrial Ethernet application environments and is suitable for industrial, intelligent transportation, rail transit, power industry, mining, petroleum, marine, metallurgical and green energy construction to form a cost-effective, stable and reliable communication network.

L2+ managed industrial Ethernet switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, built-in 60W power supply. Support dual AC or DC power supply input and 1U/19 inch rack installation.

FEATURE

Gigabit access, 10G uplink

• All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

• IGMP V1/V2 and IGMP Snooping.

• ERPS/STP/RSTP/MSTP.

• Static and dynamic aggregation.

Security

• 802.1X authentication.

• Port isolation,Storm control.

• IP-MAC-VLAN-Port binding.

Stable and reliable

• Low power consumption, No fan, aluminum shell.

• Self-developed power supply, high redundancy design, providing a long term and stable power output.

• CCC,CE, FCC, RoHS.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link , L/A, SPEED.

Easy operation and maintenance management

• HTTPS, SSLV3, and SSHV1/V2.

• RMON, system log, LLDP, and port traffic statistics.

• CPU monitoring, memory monitoring, Ping test, and cable diagnose.

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

Specification

Interface

Fixed Port 48*10/100/1000Base-T RJ45 ports (Data)

4*1/10G uplink SFP+ slot ports (Data)

1 * console port(115200,N,8,1)

Alarm switch(FAULT)

1 *AC100-240V power input port

2 * DC12-48V power input ports ( support anti-reverse protection)

Ethernet Port Port 1-48 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption

SFP Slot Port 1/10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

SFP Port Expansion Turbo overclocking 2.5G optical module and ring

Optical Cable/ Distance Multi mode: 850nm / 0 ~ 500M, 0 ~ 300M (10G);

single mode: 1310nm / 0 ~ 40KM, 1550nm/ 0 ~ 120KM.

Chip Parameter

Network Management Type L2+

Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3ae 10GBase-LR/SR

IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)

Switching Capacity 598Gbps (non-blocking)

ForwardingRate@64byte 131Mpps

MAC 32K

Buffer Memory 32M

Jumbo Frame 9.6K

LED Indicator Power: PWR (yellow), system:SYS (yellow), network: Link/Act (yellow), Fiber port : L/A (green)

Reset Switch Yes, support one key to restore factory settings

Power

Total PWR / Input Voltage 60W (AC100-240V)

Power Consumption Standby<35W, Full Load<60W

Power Supply Built-in power supply, AC 100~240V 50-60Hz 0.65A

Power Input Interface Dual input power port design, AC power supply priority,

support anti-reverse protection, power-off automatic switching DC connection; 2*DC12-48V power input ports; Alarm switch, 1*AC power input port

Physical Parameter

Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing

Dimension (L*W*H) 440*298*44mm

Net /Gross Weight <5.0kg / <5.8kg

Installation Desktop type ,19 inch 1U cabinet installation

Certification & Warranty

Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS

Warranty 5 years, lifelong maintenance.

Network Management Features

Interface IEEE802.3X (Full-duplex)

Port temperature protection setting

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

The speed limit of the message flow in the access port.

The minimum particle size is 64Kbps.

Layer 3 Features L2+ network management ,IPV4/IPV6 management

L3 soft routing forwarding,

Static route, Default route @ 128 pcs, APR @ 1024 pcs

VLAN 4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC

Voice VLAN, QinQ configuration

Port configuration of Access, Trunk, Hybrid

Port Aggregation LACP, Static aggregation

Max 26 aggregation groups and 8 ports per group.

Spanning Tree STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s)

Industrial Ring Network Protocol G.8032 (ERPS),Recovery time less than 20ms

250 Ring at most, Max 254 devices per ring.

Multicast MLD Snooping v1/v2,Multicast VLAN

IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out

Port Mirroring Bidirectional data mirroring based on port

QoS Flow-based Rate Limiting

Flow-based Packet Filtering

8*Output queues of each port

802.1p/DSCP priority mapping

Diff-Serv QoS,Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.

Security IP-MAC-VLAN-Port binding

ARP inspection,Anti-DoS attack

AAA & RADIUS,MAC learning limit

Mac black holes,IP source protection

IEEE802.1X & MAC address authentication

Broadcast storm control,Backup for host datum

SSH 2.0,SSL,Port isolation,ARP message speed limit

User hierarchical management and password protection

DHCP DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay

Management One-key recovery

Cable Diagnose,LLDP

Web Management (HTTPS)
