OVERVIEW

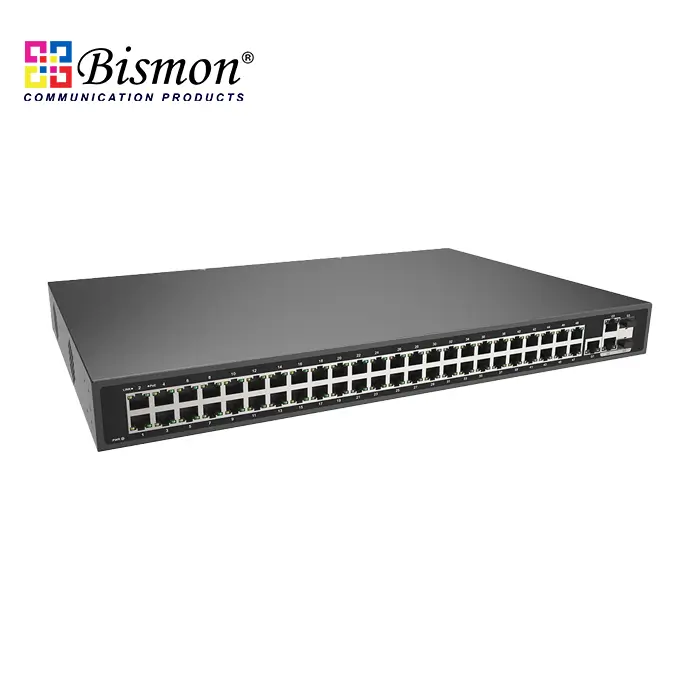

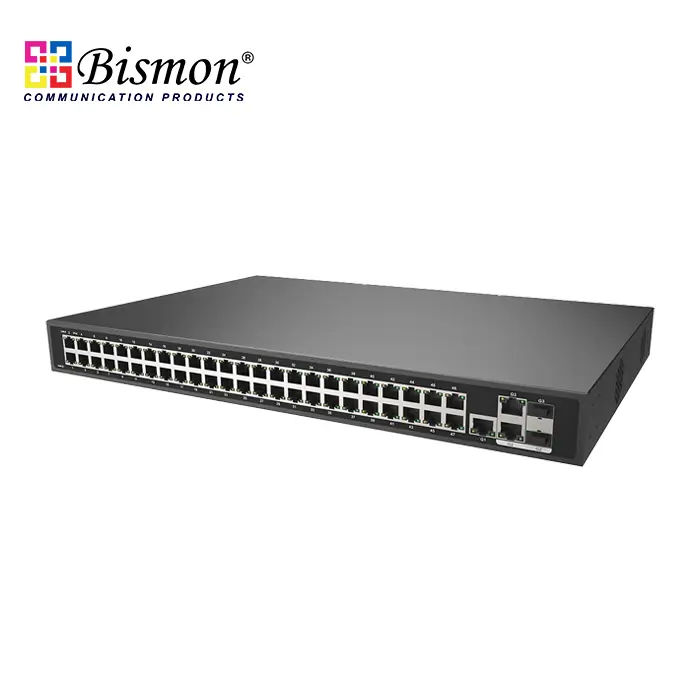

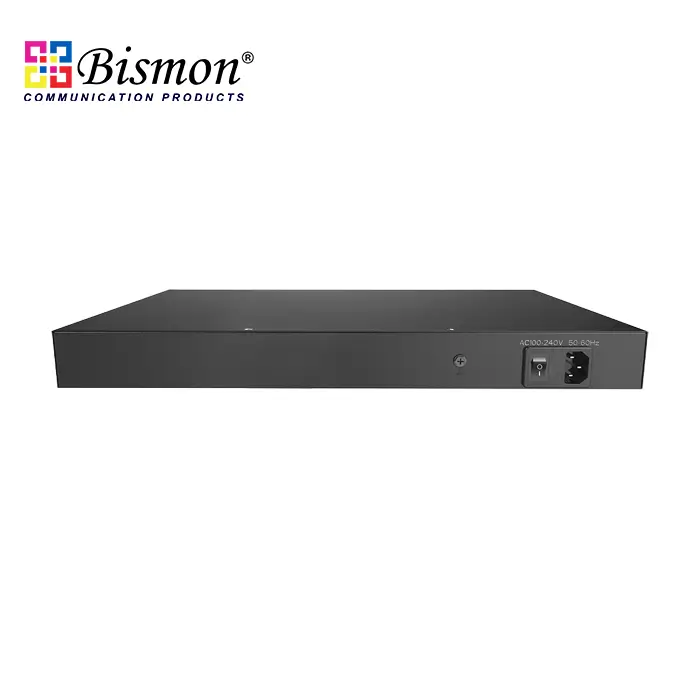

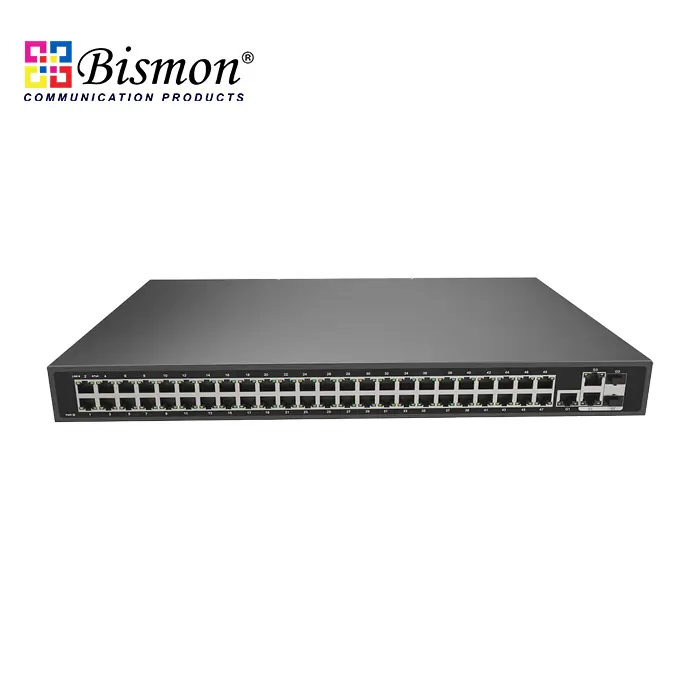

The B1-POE31048PF series is an ummanaged PoE fiber switch independently developed by BISMON. It has 48*10/100M RJ45 ports and 3*10/100M uplink RJ45 ports and 2*1000M uplink SFP slot ports (combo port). Port 1-48 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 600W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

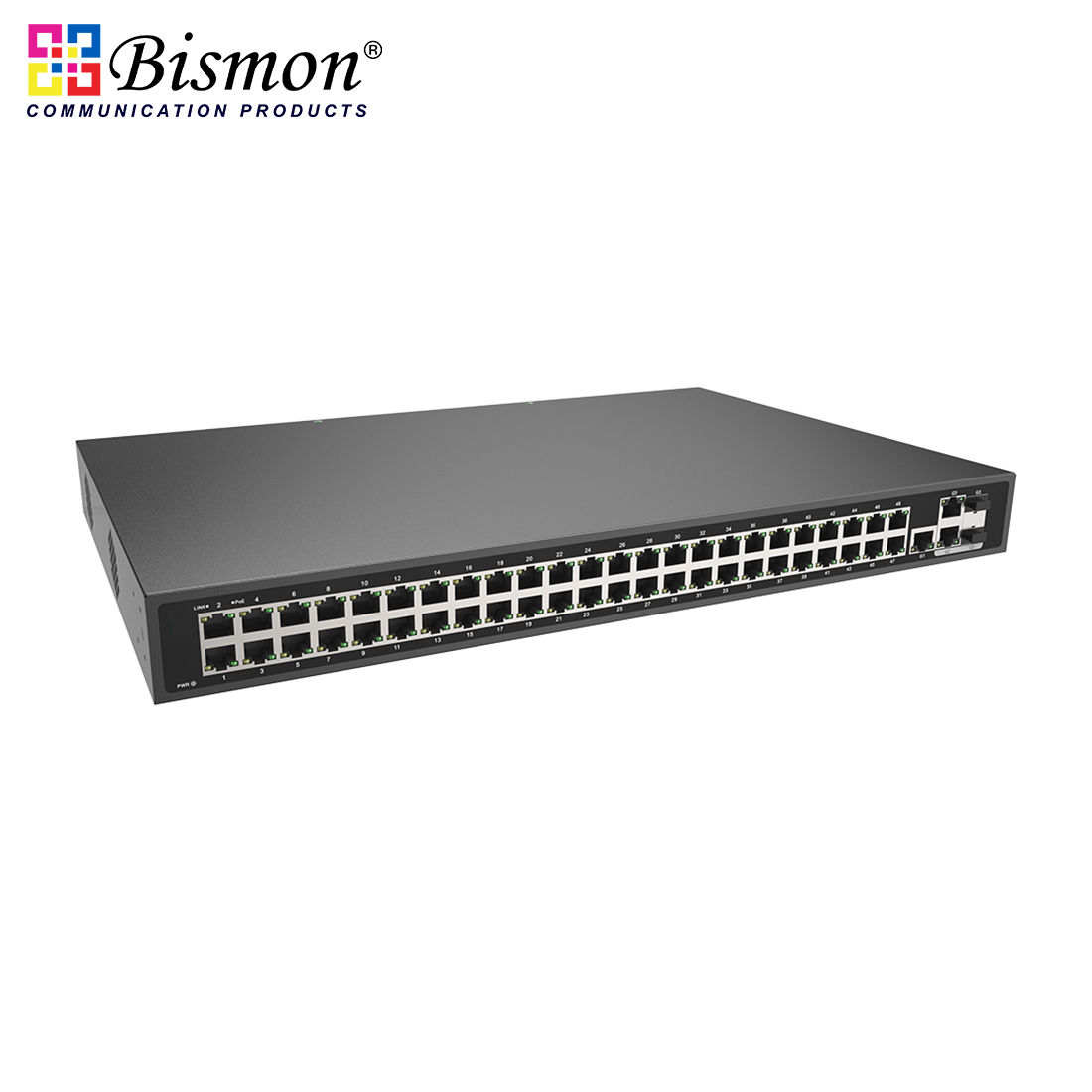

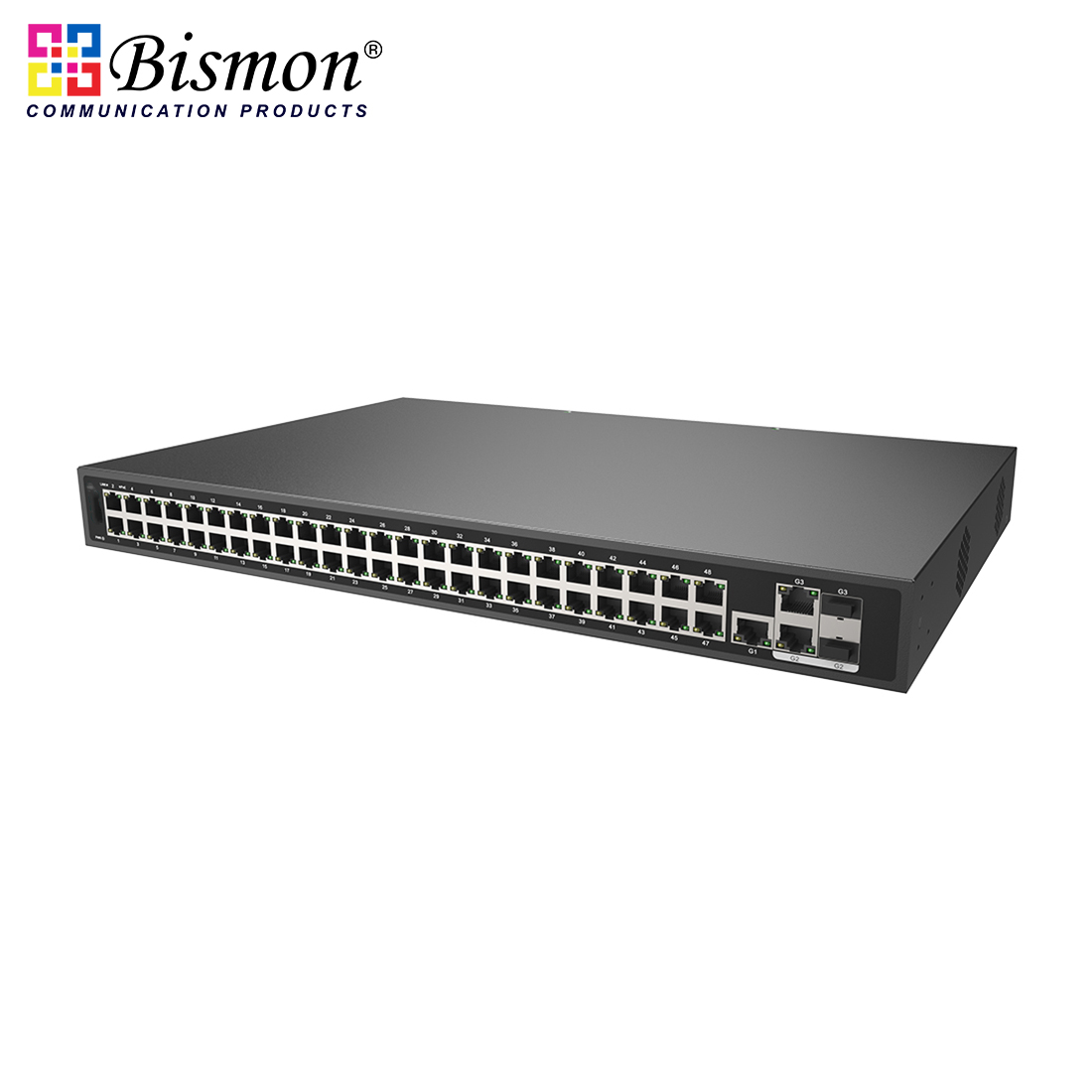

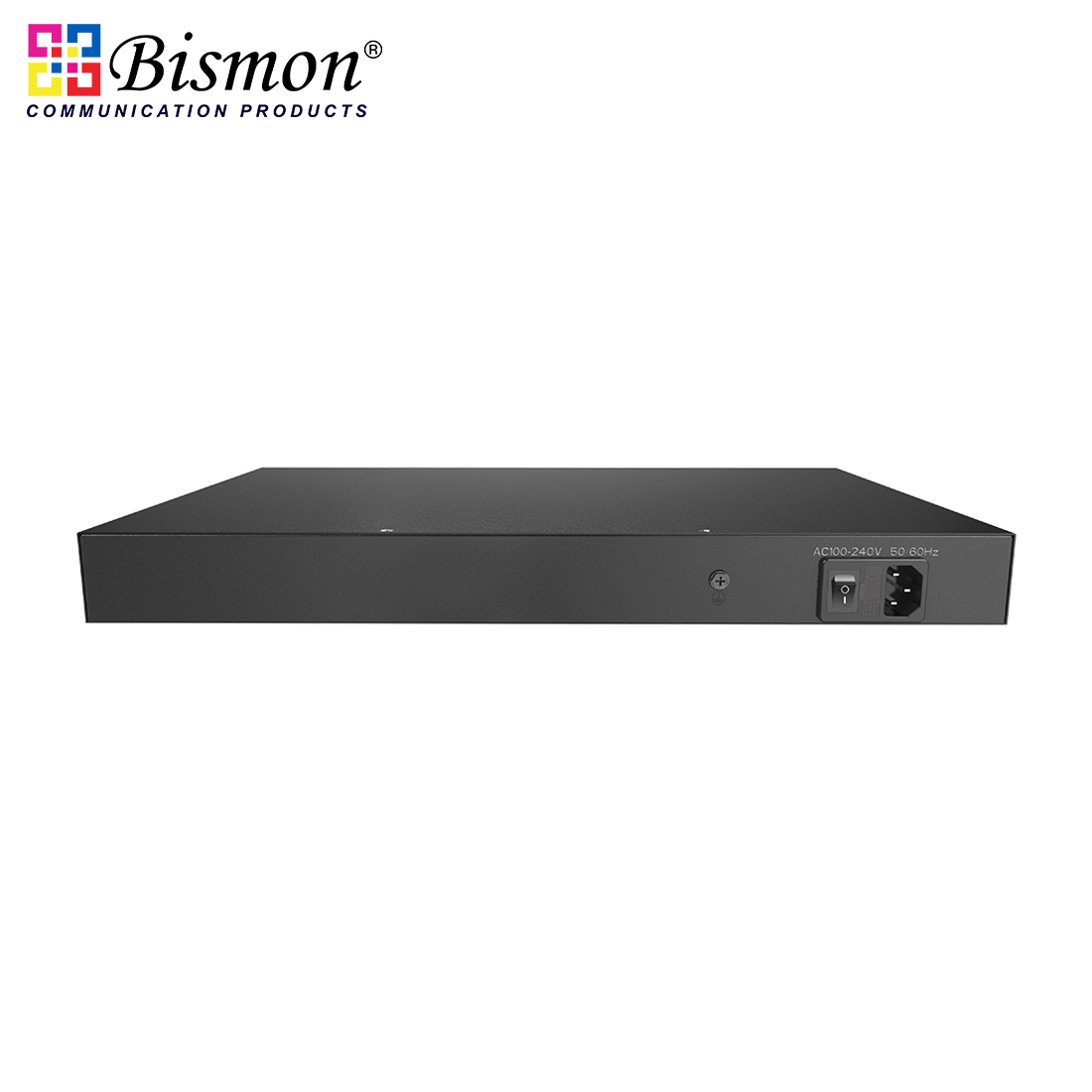

Unmanaged PoE fiber switch with 48*10/100M RJ45 ports and 3*10/100/1000M uplink RJ45 ports and 2*1000M uplink SFP fiber slots (combo port), port 1-48 can support IEEE 802.3af/at PoE standard. Support 1U/19 inch rack installation.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M access, gigabit TP/SFP combo port uplink

• All series support "10/100M RJ45 port and gigabit TP/SFP port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

• 48*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

• Low power consumption, galvanized steel casing, The fan active cooling.

• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

• CCC,CE, FCC, RoHS.

• Plug and play, no configuration, simple and convenient.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.
