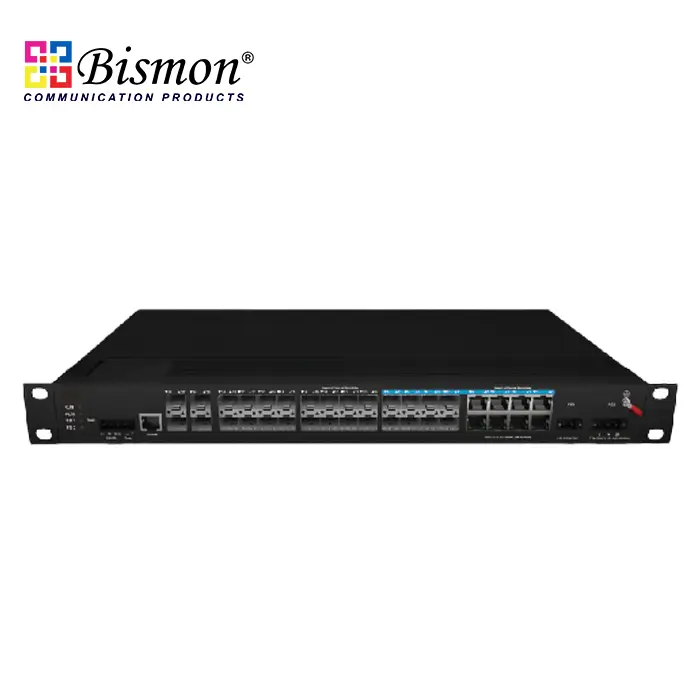

4x10G Base-X to 16x1000Base-X to 8x1000M Combo port Industrial Switch Managed

Part number : B1-88-4XG16GX8GC-HR-V

Brand : BISMON

Price : 71,268.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Minimum order quantity : 1 Pcs.

OVERVIEW

Industrial Switch 16 port Gigabit(1000Mbps) with 4x10GB SFP (10GBase-X) slot fiber optic port with 8x1000M Combo port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40,120km. รองรับ Input Voltage: DC 12-58V และ 100-240V AC 50-60Hz, สามารถทำงานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Anti-static ได้ที่ 8KV-15KV), support IEEE 802.1Q, IEEE 802.1X, QoS, ACL, STP, RSTP, MSTP, ERPS Ring, OSPFv2/RIP/IS-IS dynamic routing มีระบบพลังงานสำรองคู่, ป้องกันไฟกระชาก 4KV, support Rack mount 19inch, Standard complies CCC, RoHs, FCC, CE, ISO

Input voltage: DC 12~58V AC 100~240V 50/60Hz

Input voltage: DC 12 ~58V AC 100 ~240V 50/60Hz

Working temperature:- 40°C ~ +75°C

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F : 100000 hours

This device is an industrial Ethernet fast switch with 4 10G optical, 16 1G optical,

and 8 combo management. Through fanless cooling circuit design, wide range

working environment temperature, high protection level, and other technologies,

it provides excellent industrial grade quality such as high/low temperature resistance

and lightning protection; Moreover, it integrates various rich protocols such as switching

and security, and supports public Ethernet multi ring protection technology (ERPS),

greatly enhancing networking flexibility and improving the reliability and security of

industrial networks. It can better meet the deployment requirements of rail transit,

safe cities, intelligent transportation, outdoor monitoring, and other harsh environments.

Provider Mode Ports
Fixed port	410G Base-X , 161000 Base-X , 8*1000M combo
Management Port	Support console
Power interface	Phoenix terminal, dual power redundancy
LED Indicators	PWR , Link/ACT LED
Cable type&Transmission distance
Twisted-pair	0-100m (CAT5e,CAT6)
Monomode optical fiber	20/40/60/80/100KM
Multimode optical fibre	550m
Network Topology
Ring topology	support
Star topology	support
Bus topology	support
Tree Topology	support
Hybrid topology	support
Electrical Specifications
input voltage	DC12-58V/AC 100-240V 50-60HZ
Total Power consumption	fully loaded(Total power) <36W
Layer 2 Switching
Switching capacity	160G
Packet forwarding rate	95.23Mpps
MAC address table	16K
VLAN	support 4K
Buffer	12M
Forwarding delay	<10us
MDI/MDIX	support
Flow control	support
Jumbo Frame	support 10Kbytes
Spanning Tree	support STP/RSTP/MSTP
Ring Protocol	support ERPS
Link Aggregation	support12
Multicast	support IGMP Snooping
Port Mirroring	support
Storm Control	support
Interface Counters	support
QINQ	support
802.1X	support
Radius/Mac	support
Port Isolation	support
Rmon	support
NTP client	support
DHCP client	support
DHCP snooping	support
Ping/tracert	support
Dyinggasp	support
DDM	support
Port security	support
IP Source Guard	support
Device scanning	support
layer 3 function
Static Routing	Support 1K static routes
ARP	ARP table entry aging
Equivalent routing	Equivalent routing
	The maximum number of next hop configurable ECMP
	Support traffic balance configuration
VRRP	virtual router redundancy protocol
RIP	support
OSPFv2	support
DHCP server	support
Convergence
ACL	Support 500 ACL entries; Support IP standard ACL; Support MAC extension ACL; Support IP extension ACL;
QOS	Support QoS re labeling and priority mapping; Support SP and WRR queue scheduling; Support entrance and exit speed limits; Support flow based QoS
Management
CLI	support
Console	support
Telnet/SSH	support
WEB	support
IP	support IPV4/IPV6
SNMP	support SNMPv1/v2c/v3
User Management	support
System Log	support
Configuration File Download/Upload	support
Upgrade Firmware	support
Environment
Operating temperature	-40°C ~ +75°C
Storage temperature
