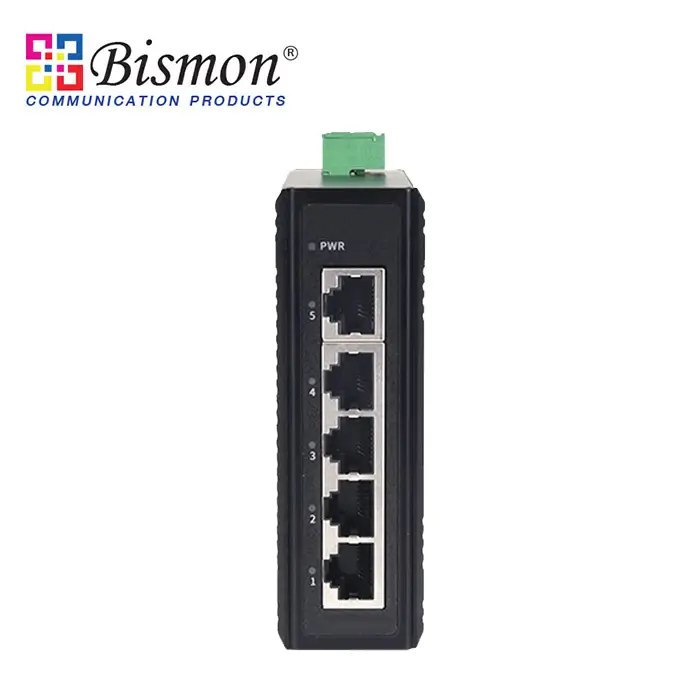

5-Port L2 100M DIN Rail Unmanaged Industrial Ethernet Switch

Part number : B1-CIES205

Brand : BISMON

Price : 0.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Minimum order quantity : 1 Pcs.

Warranty : 1 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

Overview

Name: 5-Port L2 100M DIN Rail Unmanaged Industrial Ethernet Switch
Brand: BISMON
SKU: B1CIES205
Availability: InStock

B1-CIES205 is a 5-port 100M unmanaged industrial Ethernet switch specially designed and developed for industrial communication network applications. Each 100M copper port has 10/100M auto-sensing capability, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection, providing a strong guarantee for industrial automation. The product selects industrial-grade components, 35mm standard DIN rail installation, high-strength aluminum alloy shell, fanless casing for heat dissipation, -40°C~+75°C wide temperature operation, high-standard industrial protection design, able to adapt to various harsh conditions working environment, and stable communication performance. The products can be widely used in industrial automation, integrated energy, smart cities, smart transportation, smart factories, and other industrial fields.

Specification

Protocol Standard
IEEE Standard		IEEE802.3, IEEE802.3u, IEEE802.3x
Switch Capability
Backplane Bandwidth		1.6Gbps
Buffer Size		768kbit
Jumbo frame		2kbyte
Mac Address Table		2K
Interface
100M Copper		5 x 10/ 100Base-T(X) auto-sensing RJ45 port, full/half duplex, auto MDI/MDI-X
Status LED		Power status LED, copper port LED
Power Supply
Power Input		DC9V ~ 60V or AC24V, dual inputs for redundancy, non-polarity
Power Consumption		<1W@DC24V
Connection		5.08mm pitch 5-pin terminal block
Physical Characteristics
Dimensions		102 × 33 × 78mm (DIN rail mounting clip and connector excluded)
Installations		35mm standard DIN-rail mounting
Shell protection		IP40; Aluminum alloy shell
Weight		About 0.27kg
Working Environment
Operating Temperature	-40°C ~+75°C
Storage Temperature	-40°C ~+85°C
Relative Humidity	5%~95% (non-condensing)
Industry Standard
EMC	IEC 61000-4-2 (ESD): Level 3 (contact discharge ±6kV, air discharge ±8kV) IEC 61000-4-5 (Surge): Level 4 (Power supply: common mode±4kV, differential mode ±2kV Network port: common mode ±6kV, differential mode ±2kV) IEC 61000-4-4 (EFT): Level 4 (power supply: ±4kV, network port: ±2kV)
Certification	CE, FCC, RoHS
