In today’s world of smart infrastructure, reliable power and connectivity are critical.
The Solar Power Smart Wall Box combines energy efficiency with intelligent network control.
By integrating MPPT solar charging, PoE switch functions, and surge protection, it ensures stable operations even in remote areas.
Its IP66 metal enclosure offers robust durability against harsh weather conditions.
With touch-screen monitoring and RS232/RS485 interfaces, management becomes simple and intuitive.
The system supports DC outputs for multiple devices, reducing installation complexity and cost.
Designed for green energy projects, smart cities, and remote monitoring applications, it maximizes uptime.
Choosing this wall box means investing in sustainability, reliability, and next-generation connectivity.

The Solar Power Smart Wall Box is an integrated outdoor solution that combines solar power management, PoE switching, and intelligent control in one compact enclosure.
It is engineered for reliability in harsh environments with IP66 protection, advanced surge/ESD safeguards, and high MPPT efficiency.
Ideal for smart city, surveillance, and remote communication systems, it delivers both power and connectivity where conventional infrastructure is unavailable.

• Solar Input: <100VDC, MPPT efficiency >99%, supports 12V/24V battery systems, max discharge current 20A

• DC Output: 3 channels, voltage/current detection

• Network Switch: 8×10/100Base-TX PoE ports + 2×1000M SFP, unmanaged, 5.6Gbps fabric, 4K MAC

• Control & Interfaces: RS232, RS485, DI, door/fan/lamp monitoring, reset key >5s

• Protection: Surge 6kV IEC61000-4-5, ESD 6kV contact / 8kV air IEC61000-4-2

• Environment: Operating –20°C to +70°C, storage –40°C to +85°C, 0–90% RH (non-condensing)

• Structure: Metal box, 400×300×220mm, IP66, white, 10kg net weight

• Screen: 5-inch touch control, resolution 480×800

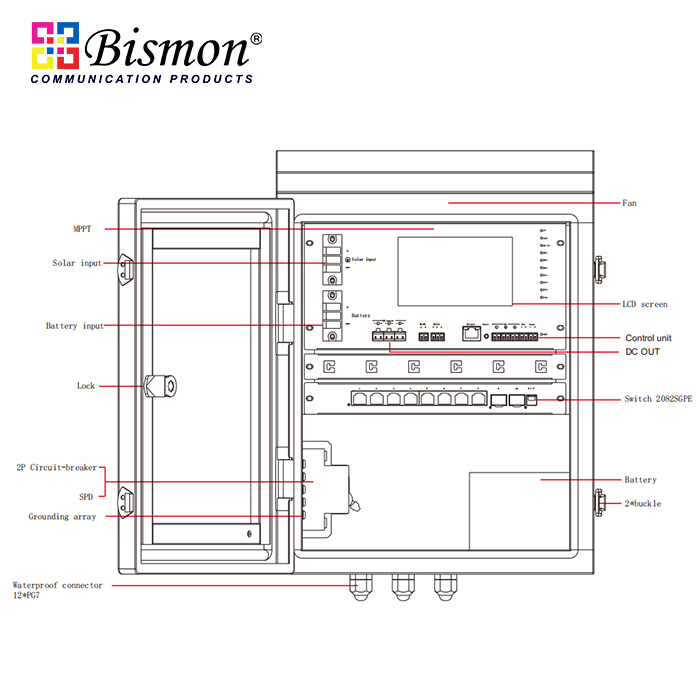

- The Cabinet Standard IP66 Smart Sloar box, Size: 500x380x220mm

- Include:

               -1 x Cooling fan

               - 1 x Circuit breaker

              - 1 x Surge protector

              - 1 x MPPT controller

              - 1 x 5 inch LCD screen

               - 1 x Tray for putiing battery

               - 1 x DC12V to DC48V Voltage booster

               - 1 x Smart Control Card work with our software platform

                - 1 x 10-Port 10-Port Fast Ethernet PoE Switch, 8 PoE Outputs 10/100Mbps +2 uplink Gigabit SFP port
