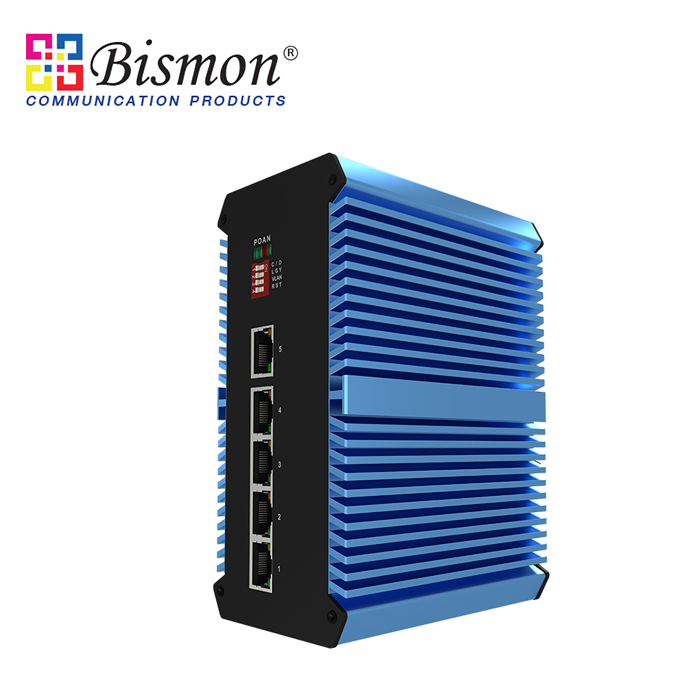

SPECIFICATION

Provider Mode Ports

• Fixed port: 5*10/100/1000 Base-T
• Management Port: Unsupported
• Power interface: Phoenix terminal, redundant dual power supply
• LED Indicators: PWR, OPT, NMC, ALM

DIP Switch

• 1 C/D: Reserve
• 2 LGY: Stand/Non-standard PoE Mode
• 3 VLAN: Port Isolation
• 4 RST: Reset

Cable Type & Transmission Distance

• Twisted-pair: 0-100m (CAT5e,CAT6)
• Monomode optical fiber: –
• Multi mode (optical) fiber: –

Network Topology

• Ring topology: Unsupported
• Star topology: Support
• B us topology: Support
• Tree Topology: Support
• Hybrid topology: –

Electrical Specifications

• Input voltage: DC 12-58V(Non-PoE), DC 48-58V(PoE)
• Total Power consumption: <6W(Non-PoE); <126W(PoE)
• Voltage Alarm: Support

PoE

• PoE port: 1-4
• PoE Protocol: 802.3af?802.3at
• Pin Assignment: 12+, 26-
• PoE Mode: Standard & non-standard are supported
• PoE Management: Unsupported
• Remote PD Reset: Support

Layer 2 Switching

• Switching capacity: 10G
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 8K
• VLAN: Unsupported
• Buffer: 1M
• Forwarding delay: <5 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10 Kbytes
• WatchDog: Support
• Port Isolation: Support

Environment

• Operating temperature: -40oC ~ +75oC The device is tested for 8 hours at temperatures in 85°C
• Storage temperature: -40oC ~ +85oC
• Relative humidity: 5% ~ 95% non-condensing
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions

• Product size: 65*104*143 mm
• Installation Method: DIN-rail
• Weight: 0.7 Kg around

EMC & Ingress Protection

• IP Level: IP50
• Surge protection of Power: IEC 61000-4-5 Level X (10KV/10KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level X (6KV/4KV) (10/700 µs)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level 4 (30A/m)
• DIP: IEC 61000-4-11 Level 3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m

Authentication

• Certificates: CCC, CE, FCC, RoHS
• Accessories: Device, Terminals, Specification, Certificate, Adapter(optional)
