OVERVIEW

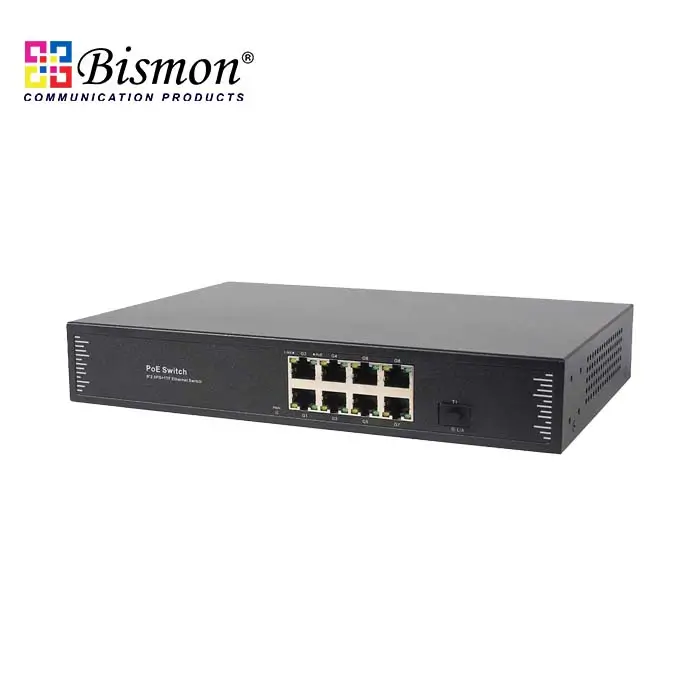

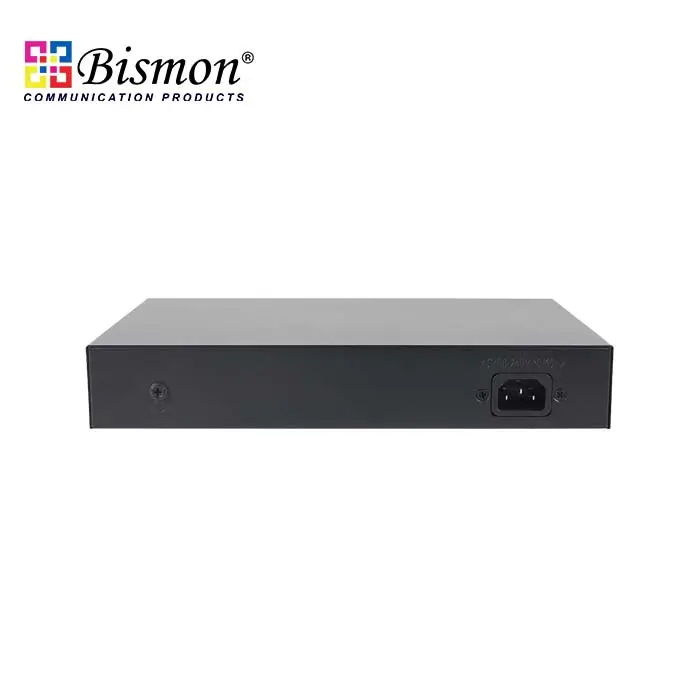

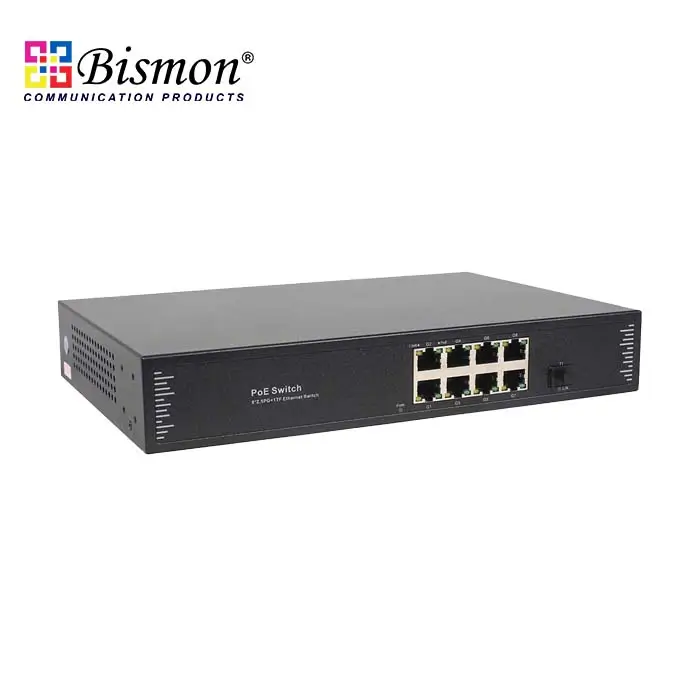

The B1-POE57008PF-at is a 2.5G PoE fiber switch independently developed by BISMON. It has 8*10/100/1000/2500Base-T adaptive RJ45 ports and 1*1/10G SFP+ fiber port. Port 1-8 can support the IEEE 802.3 af/at PoE standard, and the single-port max PoE power is 30W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. It can power PoE terminal equipment such as wireless AP (WIFI6/WIFI7), IP cameras, Internet telephones, video access control intercoms, etc., through network cables to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, factories, parks, supermarkets, and small and medium-sized enterprises to establish cost-effective networks.

FEATURE

2.5G access, uplink 1/10G SFP+ fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support 2.5G RJ45 port and 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 8*10/100/1000/2500Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

- Low power consumption, no fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

ORDERING INFORMATION
