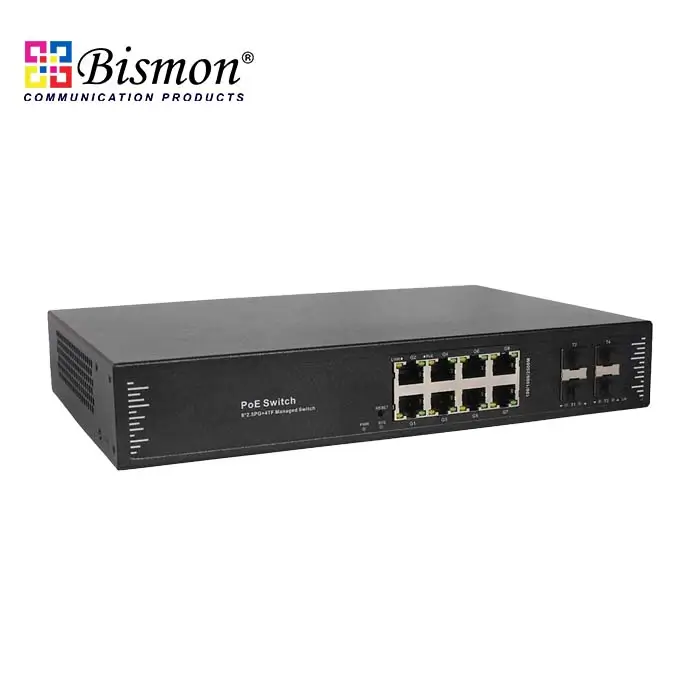

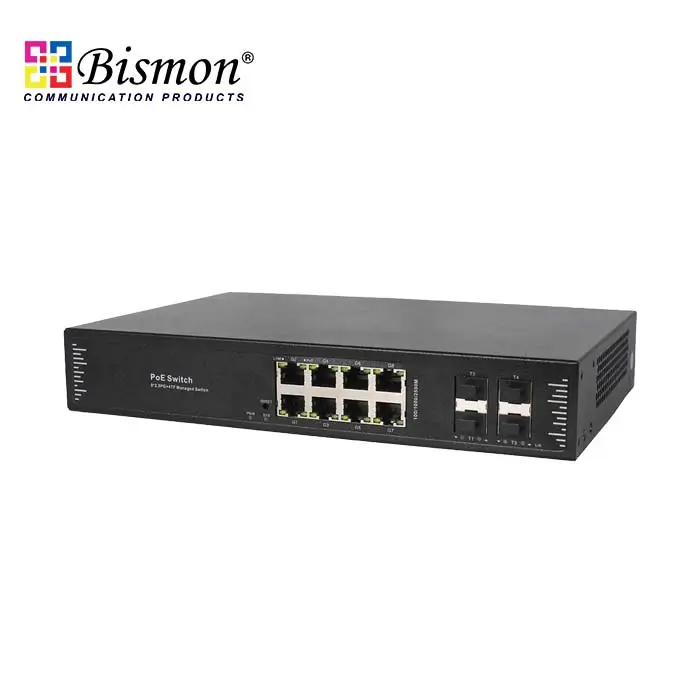

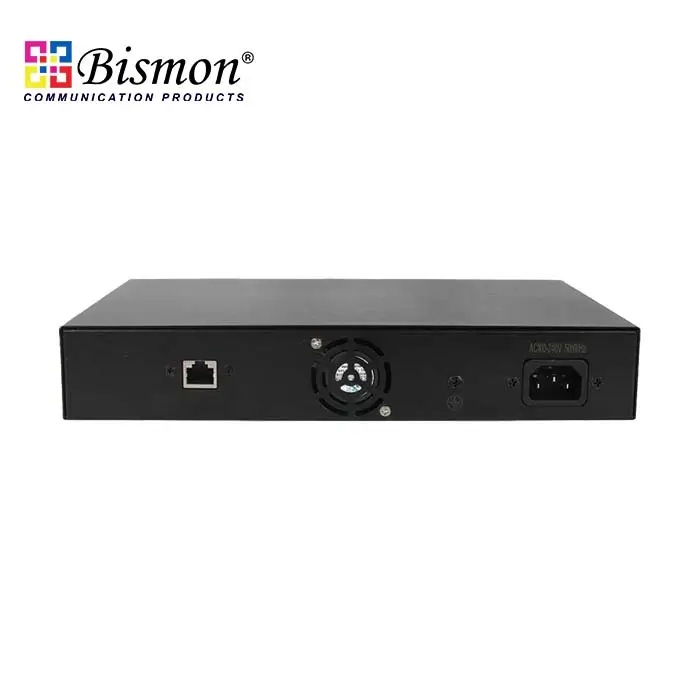

8*10/100/1000/2500Base-T PoE with 4*1/10G uplink SFP+ uplink Managed Switch (250W)
คำอธิบายสินค้า สวิตช์ managed PoE ความเร็ว 2.5G ที่พัฒนาโดย BISMON มีพอร์ต RJ45 จำนวน 8 พอร์ต รองรับการส่งข้อมูลและจ่ายไฟผ่านสายเน็ตเวิร์ก พร้อมพอร์ต SFP+ fiber uplink 4 พอร์ตสำหรับการเชื่อมต่อความเร็วสูง ทั้งนี้พอร์ต 1-8 สามารถจ่ายไฟ PoE ได้สูงสุด 30W ต่อพอร์ตตามมาตรฐาน IEEE 802.3af/at เหมาะสำหรับใช้ power devices ต่างๆ เช่น wireless AP, IP camera, IP phone และระบบควบคุมการเข้าออก ผ่าน
Part number : B1-POE57128PFM-at
Brand : BISMON
Price : 18,336.00 Baht / Pcs.
Delivery time : 15 Day
Minimum order quantity : 1 Pcs.
Size : 270*181*44.5mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-POE57128PFM-at is a 2.5G managed PoE fiber switch independently developed by BISMON. It has 8*10/100/1000/2500Base-T adaptive RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-8 can support the IEEE 802.3af/at PoE standard, and the single-port max PoE power is 30W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, Internet telephones, video access control intercoms, etc., through network cables to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, factories, parks, supermarkets, and small and medium-sized enterprises to establish cost-effective networks.
The B1-POE57128PFM-at has L2+ network management function, supports IPV4/ IPV6 management, static route forwarding, complete security protection mechanism, complete ACL/QoS policy, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure uninterrupted communication for important applications. According to application needs, PoE power supply management, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application service configurations are performed through network management methods such as Web, CLI, SNMP, and Telnet.
FEATURE
2.5G access, uplink 1/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 2.5G RJ45 port and 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 8*10/100/1000/2500Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
- Support PoE network management function, which can be configured through network management to enable PoE port opening/closing, port power status viewing, time scheduling, etc.
Strong business processing capability
- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Security
- Support port isolation and port broadcast storm suppression.
- Support port+MAC binding and IP+MAC+ port binding functions.
- Support 802.1X authentication, provide authentication function for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
- Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
- LLDP is convenient for the network management system to query and judge the communication status of the link.
- Various management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
B1-POE57128PFM |
L2+ managed PoE switch with 8*10/100/1000/2500M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It built-in power supply and 1U/19” cabinet installation. |
130W |
|
B1-POE57128PFM-at |
250W |
|
|
Note: The optical module is not included and needs to be purchased. |
||
