OVERVIEW

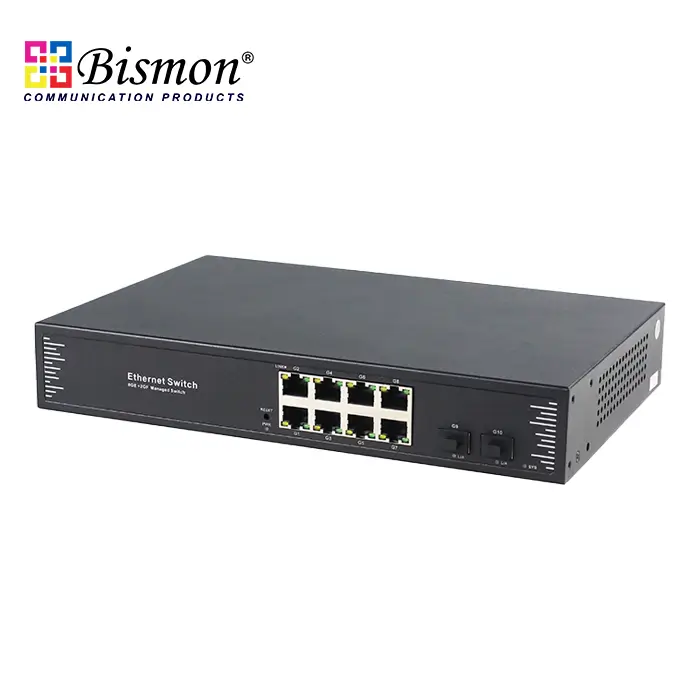

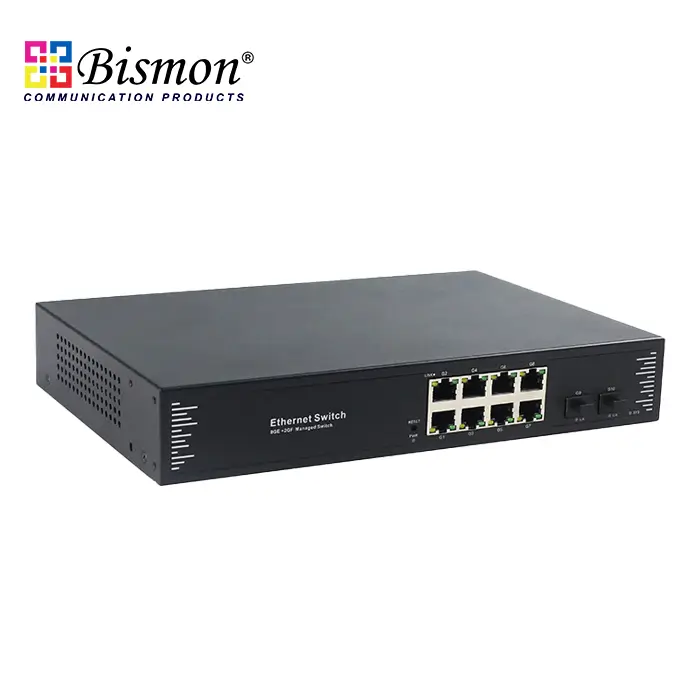

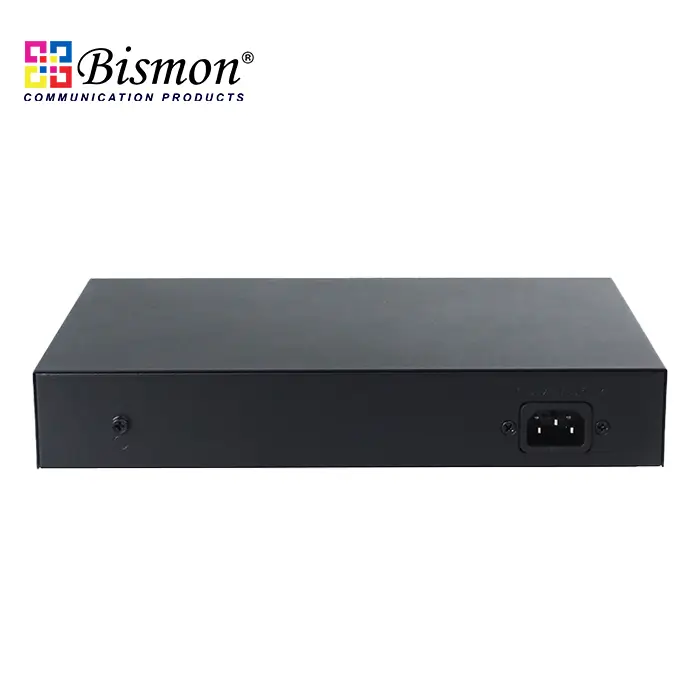

The B1-H5108FM is a Gigabit Easy managed Ethernet fiber switch independently developed by BISMON. It has 8*10/100/1000Base-T adaptive RJ45 ports and 2*1000Base-X uplink SFP fiber ports. Each port supports wire-speed forwarding.
The B1-H5108PFM can support Web management, BISMON-NMS management platform, and mobile APP cloud platform management, which can realize functions such as security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch has high reliability, easy installation and maintenance, a fast switching function, and multiple access ports, which are suitable for access to LAN devices of various scales.
FEATURE
Gigabit access, uplink SFP fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Extreme Optimization, minimalist application
- Support remote upgrade, remote restart, and restore factory settings.
- Support real-time fault alarm, fault location, and automatic order dispatch.
- Support local platform, cloud platform, and mobile APP O&M management.
- Visual network topology management, VLAN division, QoS, link aggregation, loop protection, port mirroring, port control, and bandwidth management.
- Practical network management functions are retained according to industry application requirements, and network deployment and centralized operation and maintenance can be quickly realized through the operation and maintenance platform.
Stable and reliable
- CCC, CE, FCC, RoHS.

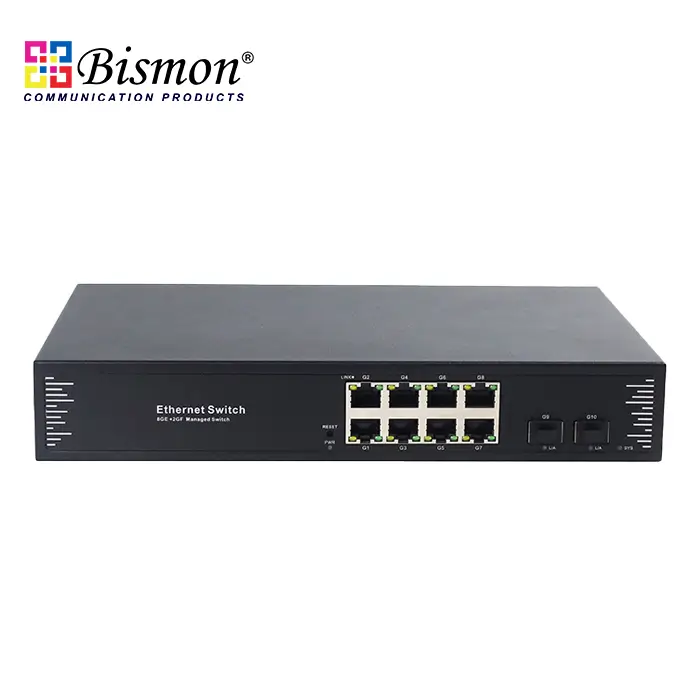

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and L/A.
- Low power consumption,, no fan. galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-H5108FM
|
|
Interface Characteristics
|
|
Fixed Port
|
8*10/100/1000Base-T RJ45 ports (Data)
2*1000Base-X uplink SFP fiber ports (Data)
|
|
Ethernet Port
|
Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC).
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
|
|
Chip Parameter
|
|
Network Management Type
|
L2 (Web management, platform management)
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
20Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
14.88Mpps
|
|
MAC
|
8K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green)
|
|
Reset Switch
|
Press and hold for 6s and release to restore the factory settings, short press 2 times (1s interval) to switch to the unmanaged state
|
|
Power Supply
|
|
Total PWR / Input Voltage
|
20W/ (AC100-240V)
|
|
Power Consumption
|
Standby<5W, Full load<10W
|
|
Power Supply
|
Built-in power supply, AC 100~240V 50-60Hz, 0.56A
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-20°C~+55°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40°C~+80°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
270*181*44.5mm
|
|
Net /Gross Weight
|
1.05kg / 1.55kg
|
|
Installation
|
Desktop, wall mount, 1U/19” cabinet
|
|
Certification & Warranty
|
|
Lightning Protection
|
Lightning protection: 4KV 8/20us, Protection level: IP30
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
1 year, lifelong maintenance.
|
|
Network Management Feature
|
|
Interface
|
Port status display, Port traffic statistics
Port duplex/negotiation rate configuration
EEE Energy-saving and green Ethernet function
IEEE802.3x flow control configuration (Full-duplex)
|
|
VLAN
|
Port-based IEEE802.1Q VLAN configuration (4K)
|
|
Port Aggregation
|
Static aggregation
|
|
Loop Protection
|
Loop protection function, Prevent ring network failure function
|
|
Multicast
|
IGMP Snooping v1/v2, Max 256 multicast groups
|
|
Port Mirroring
|
Bidirectional data mirroring based on port
|
|
QoS
|
Diff-Serv QoS, Priority Mark/ Remark
8*Output queues of each port, 802.1p/DSCP priority mapping
|
|
Security
|
Broadcast storm control, Port isolation, Port speed limit
|
|
DHCP
|
DHCP Snooping
|
|
Management
|
Mobile APP operation and maintenance management
One-key recovery, Cable Diagnose, Web Management (https)
ONV-NMS platform management (Local platform/ Cloud platform)
|
|
System
|
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
|
